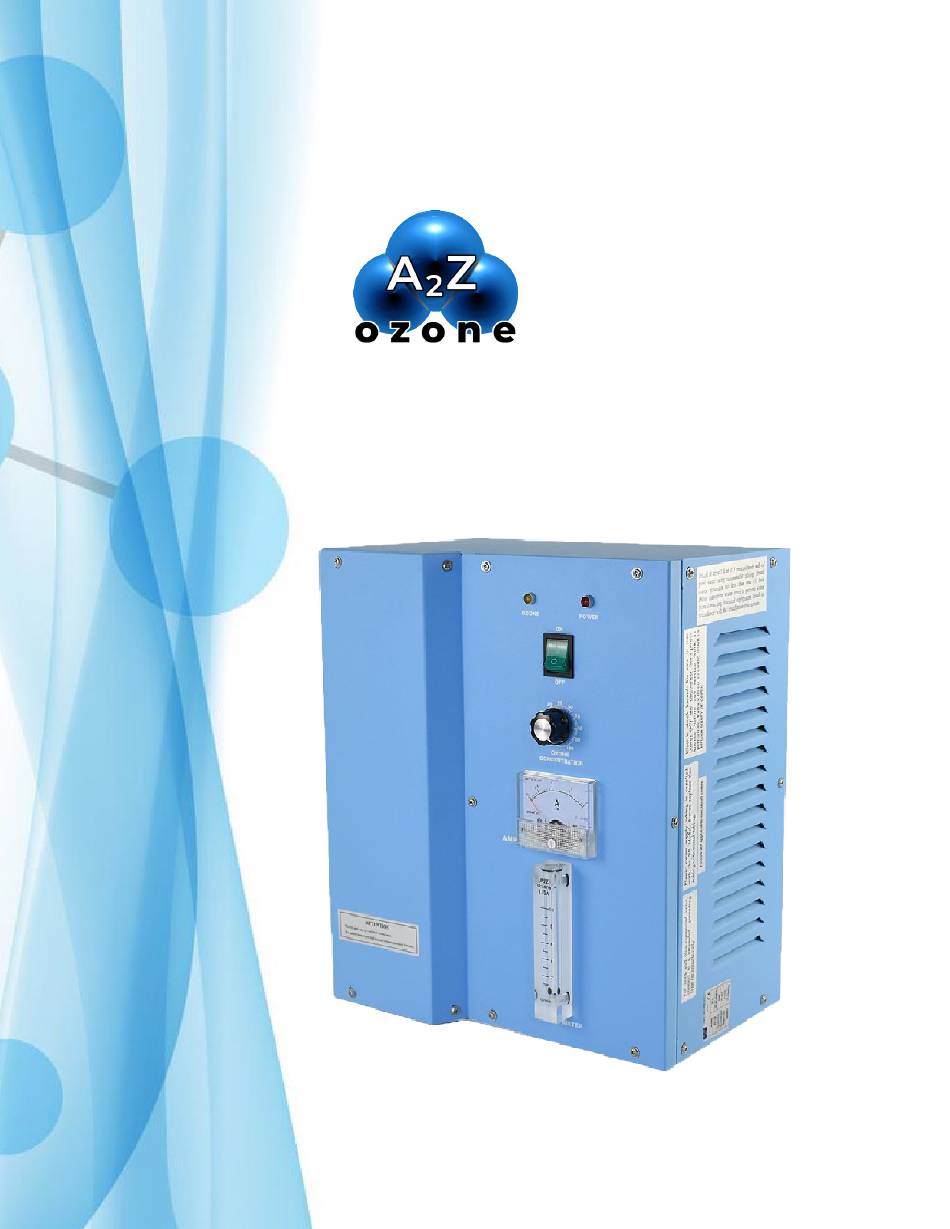

SP-5G (110V) Ozone Generator
Operating Manual
Produced for and Distributed by:
A2Z Ozone, Inc
1844 Cargo Court.
Louisville, KY 40299 USA
1+502-499-4977
EPA Est.: 95432-KY-1
Active Ingredient: Ozone.
Warning: Do Not Inhale Ozone.
Keep Out of Reach of Children.
Produced by:
Bluegrass Water Technology
Shenzhen Co., Ltd.
Shenzhen, Guangdong 518110
EPA Est.: 95432-CHN-1
Made in China
a2zozone.com/pages/warranty
* Register your product at
Version 1.2.2

Advertisement

loading

Related Manuals for A2Z Ozone SP-5G

Summary of Contents for A2Z Ozone SP-5G

  • Page 1 SP-5G (110V) Ozone Generator Operating Manual Produced for and Distributed by: A2Z Ozone, Inc 1844 Cargo Court. Louisville, KY 40299 USA 1+502-499-4977 EPA Est.: 95432-KY-1 Active Ingredient: Ozone. Warning: Do Not Inhale Ozone. Keep Out of Reach of Children. Produced by: Bluegrass Water Technology Shenzhen Co., Ltd.

  • Page 2: Table Of Contents

    Table of Contents Important Safety Information .............. 2 Technical Specifications ..............3 SP-5G (110V) Features ................ 4 Installation Instructions ............... 7 Maintenance ..................9 Troubleshooting ...................11 Warranty ..................... 12 WARNING: Do Not Inhale Ozone. Remove Immediately to Fresh Air if exposed.

  • Page 3: Important Safety Information

    • Install the ozone generator at least five feet from water using nonmetallic plumbing. • The SP-5G must be mounted indoors or under a cover for protection from the elements. • Install check valves to prevent water from coming into contact with the electrical equipment.

  • Page 4: Technical Specifications

    • PTFE tubing (for ozone) • Spare fuse • Check valve (x2) • Spare fan filter Note: The SP-5G (110V) Ozone Generator is not built with an internal pump. This unit requires a to force the ozone out. Ozone Power...

  • Page 5: Sp-5G (110V) Features

    SP-5G (110V) Features Ozone Light Indicates ozone is functioning. Indicates when there is power to the unit. If the power is Power Light supplied, the LED will illuminate. Power Switch Used to power the unit on and off. Ozone Concentration Controls the percentage of ozone produced by the unit.
  • Page 7 Ozone Out Port The ozone out. Main Fuse If the unit has no power, check here first. This sucks in air for the unit to produce ozone. Please do not Air/Oxygen In block this intake port. Optional oxygen intake or air pump Port connection.

  • Page 8: Installation Instructions

    Installation Instructions Ozone Generator Placement • Install the SP-5G (110V) Ozone Generator in a clean, dry area with good ventilation. • Select a location for the ozone generator that is as close as possible to the application. • The SP-5G (110V) Ozone Generator enclosure is not waterproof, so it is important to choose a location that will keep the system away from direct weather and excessive heat.
  • Page 9 Main Power • Use the power cable provided to connect the SP-5G (110V) Ozone Generator to a properly rated and grounded receptacle. • A ground fault circuit interrupter must protect the circuit if the ozone generator will be used where water is present.

  • Page 10: Maintenance

    Maintenance Clean Air Filter This filter must be cleaned regularly. Depending on the location of the SP-5G (110V) Ozone Generator, it may be necessary to clean the air filter monthly. The filter elements are located on the bottom of the cabinet. This is the air intake element for the cooling fan, so it requires more frequent cleaning.
  • Page 11 NOTE: The only time it is possible for water to flow back toward the ozone generator is during a system shutdown. Always inspect tube and check valve during this time. Fuses The fuse is located on the panel at the bottom of the SP-5G (110V) Ozone Generator. The fuse is 3 AMP for this unit.

  • Page 12: Troubleshooting

    The test method for failure of the ozone generator: • Check the power input for correct voltage (110V) • If the ozone generator is on, but not producing ozone, then the SP-5G (110V) Ozone Generator is overheating or there is water back flow to the ozone generator.

  • Page 13: Warranty

    A2Z Ozone warrants that it or its authorized dealers will repair or replace, at its option, any part of such products proven to be defective in materials or workmanship within ONE (1) year from the date of retail purchase of such products.
  • Page 14 This information can be also sent by EMAIL to us. Please provide ALL pertinent information and send within twenty (20) days to: service@a2zozone.com Otherwise, please fill out completely and return to A2Z Ozone by post within twenty (20) days of purchase. Customer Info:...
