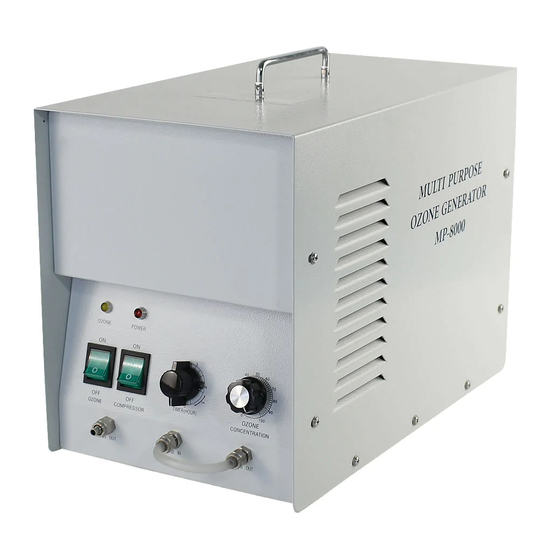

MP-8000
Operating Manual
Produced for and Distributed by:
A2Z Ozone, Inc.
Louisville, KY 40299
EPA Est.: 95432-KY-1
Active Ingredient: Ozone.
Do Not Inhale Ozone.
Keep Out of Reach of Children.
Produced by:
Bluegrass Water Technology Shenzhen Co., Ltd
a2zozone.com/pages/warranty
*register your product at
China
Version 1.2.1
EPA Est.: 95432-CHN-1
Advertisement
Table of Contents
Related Manuals for A2Z Ozone MP-8000
Summary of Contents for A2Z Ozone MP-8000

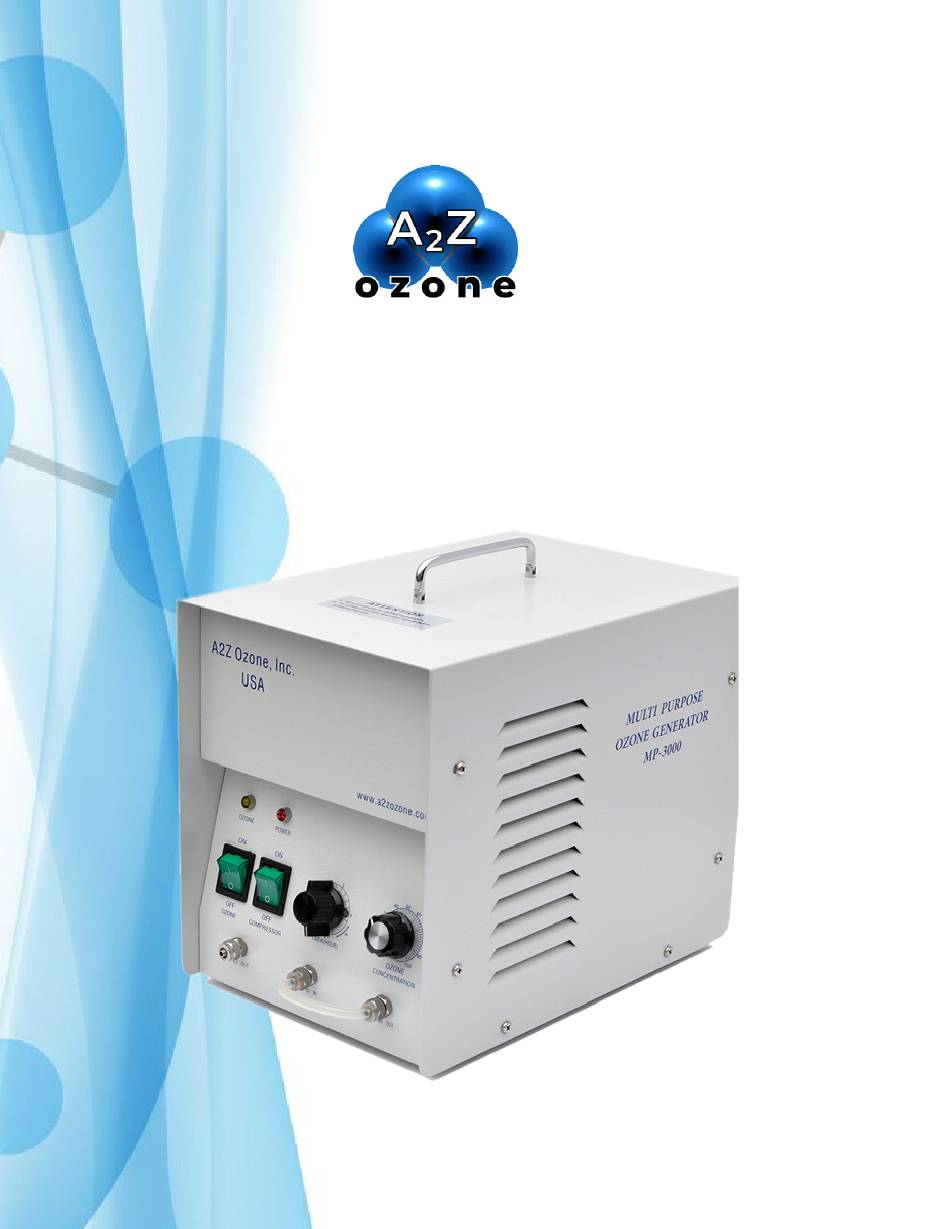

- Page 1 MP-8000 Operating Manual Produced for and Distributed by: A2Z Ozone, Inc. Louisville, KY 40299 EPA Est.: 95432-KY-1 Active Ingredient: Ozone. Do Not Inhale Ozone. Keep Out of Reach of Children. Produced by: Bluegrass Water Technology Shenzhen Co., Ltd a2zozone.com/pages/warranty *register your product at China Version 1.2.1...
-
Page 2: Table Of Contents
Table of Contents Important Safety Information ..............2 Technical Specifications ................3 Features ....................... 4 Timer Functions ..................6 Installation Instructions ................7 Operating Instructions ................8 Maintenance ....................11 Troubleshooting ..................12 Warranty ....................15 IMPORTANT: When operating an ozone generator, please remember to remove people, pets, and plants from the area in case of leakage. -
Page 3: Important Safety Information
Important Safety Information READ AND FOLLOW ALL INSTRUCTIONS • Read this manual completely before attempting installation and/or operation. • Install in accordance with the installation instructions. • Connect to a grounded, grounding type receptacle only. • To reduce the risk of electrical shock, replace damaged electrical cables immediately. •... -
Page 4: Technical Specifications
Technical Specifications Items Included: • MP-8000 ozone generator • MP-8000 operation manual • 8 feet of flexible tubing included • 8 feet of PTFE tubing • Two 2” oblong diffuser stones included • Spare fuse included • Fan filter replacement... -
Page 5: Features
Features Indicates ozone is functioning. If the LED is illuminated, the unit is Ozone Light working properly. Indicates when there is power to the unit. If the power is supplied, Power Light the light will remain illuminated. Switch Used to control ozone power within the unit. Used to power on the small internal air compressor built into each Air Pump MP Series unit. - Page 6 MP-8000...
-
Page 7: Timer Functions
• To operate this timer, turn the knob counterclockwise. Note: You can control the MP-8000 with a Gorden timer. Just turn on all switches and position timer to “ON”. Plug the unit to the timer (15 AMP) and set the timer to run the unit. -
Page 8: Installation Instructions
NOTE: The water tank requires an exhaust to the outside of the building with an ozone destructor to remove excessive ozone. Main Power • Use the power cable provided to connect the MP-8000 to a properly rated and grounded receptacle. • If the MP Series is used where water is present, a ground fault circuit... -
Page 9: Operating Instructions
Operating Instructions • Plug your power cord into the back of the unit and the wall socket. • Remove the bulkhead nut on O out port. ³ • Then insert the bulkhead onto the tubing. • Slide tubing onto the O outlet barb. - Page 10 To turn the unit off: • For Ambient Air: • Turn off the ozone switch. • Wait 10 seconds before continuing. • Turn off the air compressor switch. • For Oxygen Air: • Turn off the ozone switch • Wait 10 seconds before continuing. •...
- Page 11 • Increase power to the cells by turning the ozone control knob clockwise. • Prior to shutting off the oxygen generator feed gas to the MP-8000, first turn off the ozone generator switch and allow the unit to purge with oxygen for about 1 minute.
-
Page 12: Maintenance
Changing Fuse The outside fuse is located near the back rocker switch. The ozone board fuse is located on the back left of the board. See the table below for details: Unit Outside Fuse (AMPs) Ozone Board Fuse (AMPs) MP-8000... -
Page 13: Troubleshooting
Troubleshooting Problem Possible Cause What to Do Normally the fuse on the back of the unit will blow or the ozone light won’t Bad ozone board light up. Contact us for a replacement board. No Ozone Make sure the air loop is in the correct (Ozone LED is not position if using ambient air. - Page 14 A2Z OZONE INC. MODEL MP SERIES VOLTS VAC 50/60 Hz O OUTPUT O CONCENT GAS FLOW L/min WEIGHT lbs/ kg SERIAL # WWW.A2ZOzone.com...
- Page 15 • Turn off ozone generator and let air flow through the unit for five to ten minutes. • Check the fuse, change if needed. • The MP-8000 uses a 3 AMP fuse for the back rocker switch and a 5 AMP fuse in the ozone board •...
-
Page 16: Warranty
The limited warranty set forth below applies to products manufactured by A2Z Ozone Systems Inc. - and sold by A2Z Ozone Systems or its authorized dealers. This limited warranty is given only to the first retail purchaser of such products and is not transferable to any subsequent owners or purchasers of such products. - Page 17 This information can be also be sent by EMAIL to us. Please provide ALL pertinent information and send within twenty (20) days to: service@a2zozone.com Otherwise, please fill out completely and return to A2Z Ozone by post within twenty (20) days of purchase. Customer Info:...
