Aq u a-6
Operating Manual
Produced for and Distributed by:
A2Z Ozone, Inc.
Louisville, KY 40299
EPA Est.: 95432-KY-1
Active Ingredient: Ozone.
Do Not Inhale Ozone.
Keep Out of Reach of Children.
Produced by:
Bluegrass Water Technology Shenzhen Co., Ltd
*
China
a2zozone.com/pages/warranty
register your product at
EPA Est.: 95432-CHN-1
Advertisement
Related Manuals for A2Z Ozone Aqua-6
Summary of Contents for A2Z Ozone Aqua-6

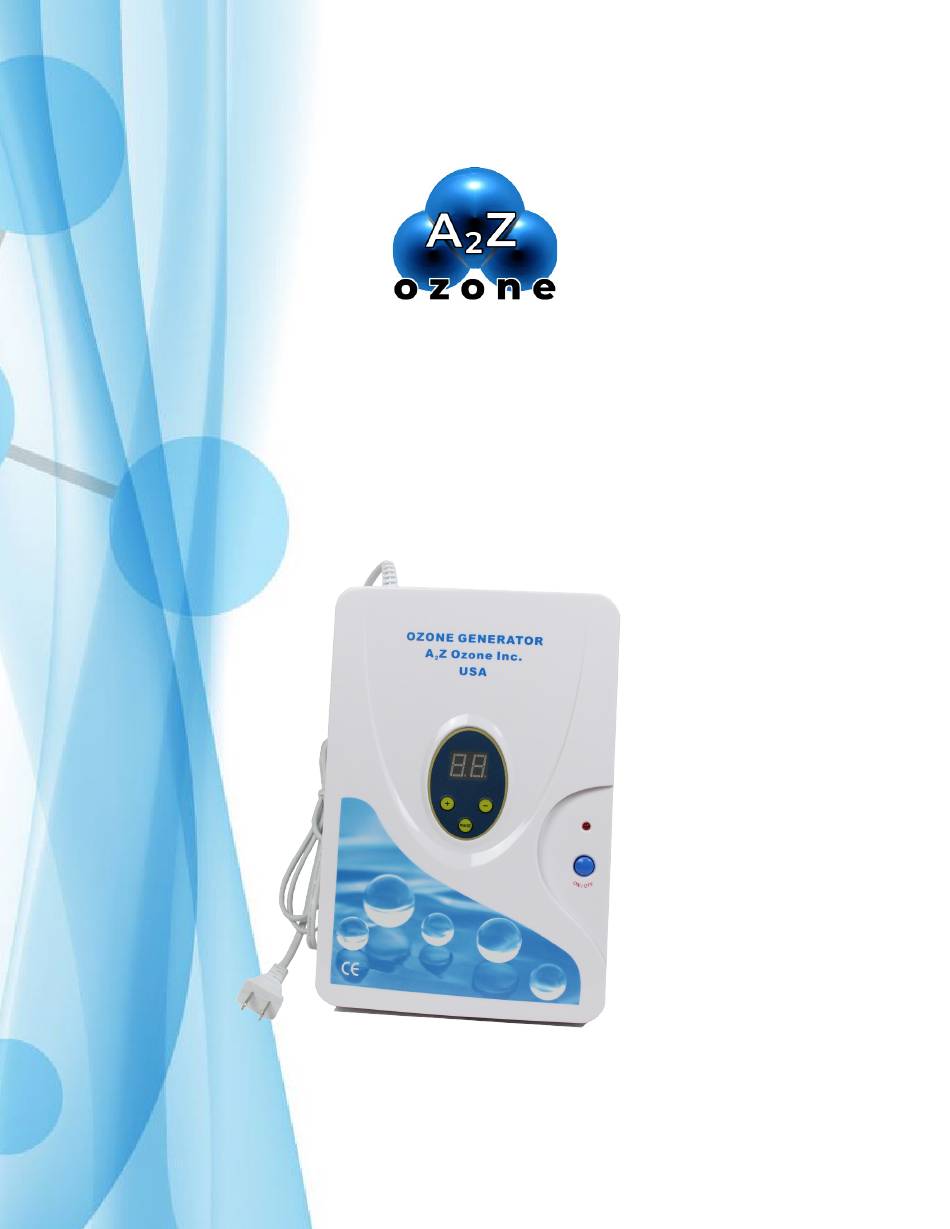

- Page 1 Aq u a-6 Operating Manual Produced for and Distributed by: A2Z Ozone, Inc. Louisville, KY 40299 EPA Est.: 95432-KY-1 Active Ingredient: Ozone. Do Not Inhale Ozone. Keep Out of Reach of Children. Produced by: Bluegrass Water Technology Shenzhen Co., Ltd China a2zozone.com/pages/warranty...
-
Page 2: Table Of Contents
Table of Contents Safety Information (Please Read)....................2 Specifications..........................3 Operating Instructions........................4 Features............................5 Timer Functions..........................7 Applications..........................8 Warranty............................11... -
Page 3: Safety Information (Please Read)
Important Safety Information • Any deviation from the operating manual or induced malfunction such as water damage or continuous run of the ozone generator is not covered by the terms of the warranty. • This unit is not made for continuous operation. Do not run the unit without a 15-30 minute pause between run times. -
Page 4: Specifications
Technical Specifications Items Included: • Aqua-6 Ozone Generator • Aqua-6 Ozone Generator Operating Manual • Two sets of long tubes for ozonation (each 36” long) • Two short spare tubes for internal replacement if needed (1.75” and 2.75” long) • Fine white diffuser stone •... -
Page 5: Operating Instructions
• Attach one end of the ozone supply tubing (36-inch long) into the ozone outlet at the bot- tom of the generator and attach a stone diffuser into the other end of the tube * Extend the tubing so that the diffuser stone and the Aqua-6 are as far apart as possible •... -
Page 7: Features
Where the PTFE tubing is attached to the unit. One end of the Tube Input ozone supply tubing is attached to the ozone outlet on the Aqua-6 unit, while the other end is attached to a diffuser stone. Where the electrical cord is attached to the unit. Wait for the air... -
Page 8: Timer Functions
Timer Functions Function # Description Run 2 minutes and turns off, one time run only Run 5 minutes and turns off, one time run only Run 10 minutes and turns off, one time run only Run 15 minutes and turns off, one time run only Run 20 minutes and turns off, one time run only Operates for 2 minutes every hour, repeats every hour Operates for 5 minutes every hour, repeats every hour... -
Page 9: Applications
Applications 6 oz - 12 oz Glass At the right levels, ozone is a safe and effective sanitizer for water. Our units produce different concentrations of ozone for disinfection, removal of impurities from decomposition and oxidation, removal of residual chlorine, oxidation of heavy metals, and clarification through oxidation. - Page 10 Treatment of Meat Products Rinse and soak meat and poultry in ozonated water to kill salmonella, E. coli and other harmful microbes, as well as to neutralize residual hormones. Preservation time is increased 2 to 5 times. Rinse and soak fish in ozonated water to kill microbes and remove fishy odor.
- Page 11 Spa & Pool Treatment The Aqua-6 can be used on spas, hot tubs and wading pools up to 500 gallons. This allows chemical usage to be reduced significantly. Limit dry skin, red eyes, faded suits or green hair that is the result of chlorine exposure. Ozone is pH neutral, so it will not adversely impact the acid or alkaline balance of the water.
-
Page 12: Warranty
The limited warranty set forth below applies to products manufactured by A2Z Ozone Systems Inc. - and sold by A2Z Ozone Systems or its authorized dealers. This limited warranty is given only to the first retail purchaser of such products and is not transferable to any subsequent owners or purchasers of such products. A2Z Ozone warrants that it or its authorized dealers will repair or replace, at its option, any part of such products proven to be defective in materials or workmanship within ONE (1) year from the date of retail purchase of such products. - Page 13 This information can be also send by EMAIL to us. Please provide ALL pertinent information and send within twenty (20) days to: service@a2zozone.com Otherwise, please fill out completely and return to A2Z Ozone by post within twenty (20) days of purchase. Customer Info:...
