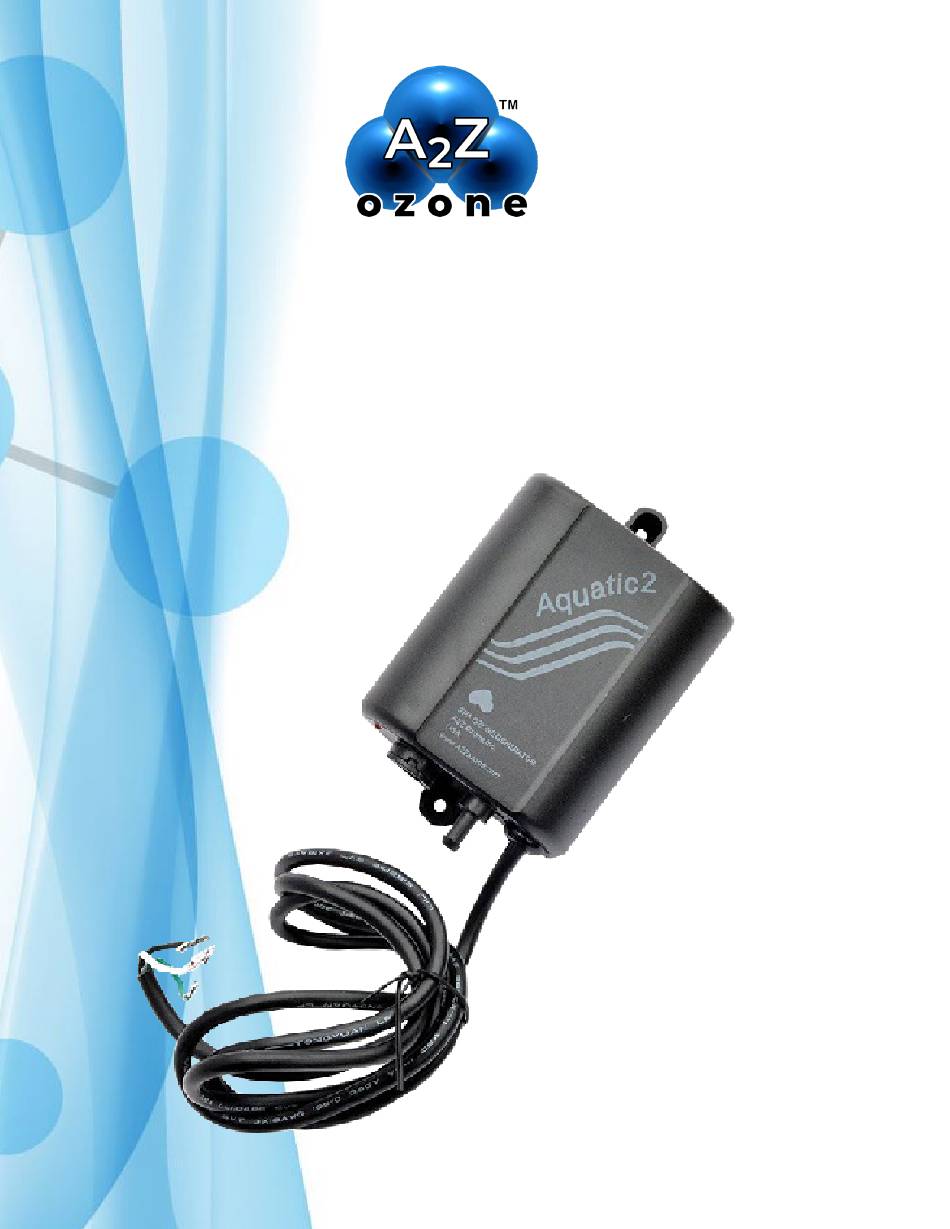

Operating Manual
Version 1.2.3
Aquatic 2
*Register your product at
Produced for and
Distributed by:
A2Z Ozone, Inc.
Louisville, KY 40299 USA
EPA Est.: 95432-KY-1
Phone: 1+502-499-4977
Active Ingredient: Ozone.
Warning: Do Not Inhale
Ozone. Keep Out of Reach
of Children.
Produced by:
Bluegrass Water
Technology
Shenzhen Co., Ltd
EPA Est.: 95432-CHN-1
Made in China
a2zozone.com/pages/warranty

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aquatic 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for A2Z Ozone Aquatic 2

Summary of Contents for A2Z Ozone Aquatic 2

  • Page 1 Aquatic 2 Operating Manual Produced for and Distributed by: A2Z Ozone, Inc. Louisville, KY 40299 USA EPA Est.: 95432-KY-1 Phone: 1+502-499-4977 Active Ingredient: Ozone. Warning: Do Not Inhale Ozone. Keep Out of Reach of Children. Produced by: Bluegrass Water Technology Shenzhen Co., Ltd...

  • Page 2: Table Of Contents

    Table of Contents Important Safety Information ..............2 Technical Specifications ................3 Aquatic 2 Features ..................5 Installation Instructions ................6 Wiring Diagram ..................8 Operating Instructions ................9 Maintenance .................... 10 Troubleshooting ..................11 Warranty ....................12 IMPORTANT: WARNING: Do Not Inhale Ozone. Ozone Can Damage Lungs if Inhaled. Remove Immediately to Fresh Air if exposed.

  • Page 3: Important Safety Information

    WARNING – To reduce the risk of electrical shock, replace damaged cord immediately. • Per UL spa requirements, the Aquatic 2 must be mounted indoors or under a cover sheltered from the elements (rain, sun, sprinklers). • Never attempt servicing when you are wet.

  • Page 4: Technical Specifications

    ¼ inch Tube 5 feet *Aquatic 2 ozone output is standardized with 1 LPM oxygen flow rate. Because this unit is run by air, actual ozone concentration is 0.6 mg/L only. Note, the Aquatic 2 does not have an oxygen hookup.
  • Page 5 Figure 1 (bottom of Unit)

  • Page 6: Aquatic 2 Features

    Aquatic 2 Features Allows air that is needed for producing ozone to pass over Air Intake the ozone cell. DO NOT BLOCK Indicates when there is power to the unit. If the power is Power LED supplied, the light will remain a solid red.

  • Page 7: Installation Instructions

    Electrical • Test the GFCI breaker. • Connect the Aquatic 2 cord to the mating connector(s) on the control box according to the provided A2Z OzoneTM wiring diagram in Figure • Where possible, route the power cord away from other electrical lines.
  • Page 8 Operation • Verify that the ozone generator turns on and off as required by the controller. • The red LED light will be visible from the viewing window on the bottom left. • Verify that the gas is flowing into the injector. •...

  • Page 9: Wiring Diagram

    Wiring Diagram The unit ships with the wiring as shown. The voltage for either 110V or 240V can be applied to the black and white wires. Match the alignment of the white wire of the ozone generator connector with the controller box connector.

  • Page 10: Operating Instructions

    Operating Instructions Please make sure water will not back into the Aquatic 2 Ozone Generator. Water will damage the unit and void the warranty. Please check these: • Install the Aquatic 2 above water level and as high as possible.

  • Page 11: Maintenance

    • Refer to the chart below. • Renew your ozone generator as needed with a repair kit. • To keep your Aquatic 2 Ozone Generator operating properly, please replace the air filter in the unit as needed or wash, dry and reinstall in unit.

  • Page 12: Troubleshooting

    Troubleshooting Problem Possible Cause What to Do Unit and pump not operating Increase operating time (min. 6 long enough hours is recommended) Adjust total alkalinity between 8 and Total alkalinity not correct 150 ppm Check for proper pH between 7.2 pH not correctly balanced Cloudy water and 7.6...

  • Page 13: Warranty

    The limited warranty set forth below applies to products manufactured by A2Z Ozone Systems Inc. - and sold by A2Z Ozone Systems or its authorized dealers. This limited warranty is given only to the first retail purchaser of such products and is not transferable to any subsequent owners or purchasers of such products.
  • Page 14 This information can be also send by EMAIL to us. Please provide ALL pertinent information and send within twenty (20) days to: service@a2zozone.com Otherwise, please fill out completely and return to A2Z Ozone by post within twenty (20) days of purchase. Customer Info:...
