Version 1.2.3

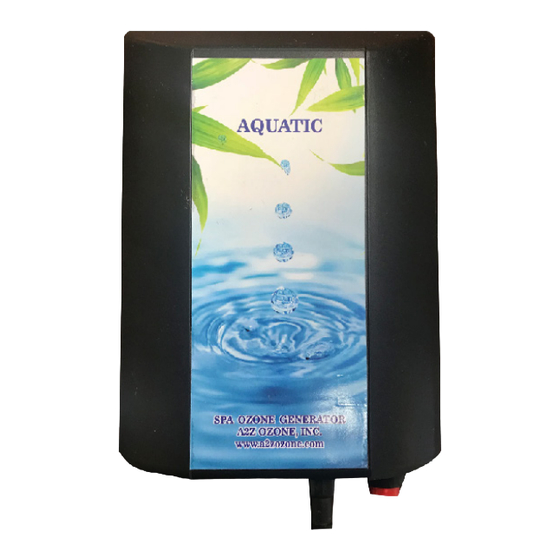

Aquatic
Operating Manual
*Register your product at
Produced for and
Distributed by:
A2Z Ozone, Inc.
Louisville, KY 40299 USA
EPA Est.: 95432-KY-1
Phone 1+502-499-4977
Active Ingredient: Ozone.
Do Not Inhale Ozone.
Keep Out of Reach of
Children.
Produced by:
Bluegrass Water
Technology Shenzhen
Co., Ltd
EPA Est.: 95432-CHN-1
Made in China
a2zozone.com/pages/warranty
Advertisement
Table of Contents
Related Manuals for A2Z Ozone Aquatic
Summary of Contents for A2Z Ozone Aquatic
- Page 1 Aquatic Operating Manual Produced for and Distributed by: A2Z Ozone, Inc. Louisville, KY 40299 USA EPA Est.: 95432-KY-1 Phone 1+502-499-4977 Active Ingredient: Ozone. Do Not Inhale Ozone. Keep Out of Reach of Children. Produced by: Bluegrass Water Technology Shenzhen Co., Ltd EPA Est.: 95432-CHN-1...
-
Page 2: Table Of Contents
Table of Contents Important Safety Information ..............2 Technical Specifications ................3 Aquatic Features ..................5 Installation Instructions ................6 Wiring Diagram ..................8 Operating Instructions ................9 Maintenance .....................10 Troubleshooting ..................11 Warranty ....................12 IMPORTANT: WARNING: Do Not Inhale Ozone. Ozone Can Damage Lungs if Inhaled. Remove Immediately to Fresh Air if exposed. -
Page 3: Important Safety Information
• Plastic ozone supply tubing is available with the Aquatic. Never replace this tubing with metal tubing. • Do not operate the Aquatic unless sufficient air flow is being drawn through the unit. • Do not inhale ozone gas produced by the device. -
Page 4: Technical Specifications
Check Valve ¼ inch Tube 5 feet *Aquatic ozone output is standardized with 1 LPM oxygen flow rate. Because this unit is run by air, actual ozone concentration is 1 mg/L only. Note, there is no oxygen connector on the Aquatic. - Page 5 Figure 1 (Bottom of Unit)
-
Page 6: Aquatic Features
Aquatic Features Indicates when the unit is running. When operating properly, a blue light will illuminate. A Power LED red light for a few seconds when the unit is first turned on is normal. This sucks in air for the unit to produce ozone. -
Page 7: Installation Instructions
Substitute proper mounting hardware as required. Electrical • Test the GFCI breaker • Connect the Aquatic cord to the mating connector(s) on the control box. • Where possible, route the power cord away from other electrical lines. Do not run the power cord parallel to any low voltage signal wires. - Page 8 Operation • Verify that the ozone generator turns on and off as required by the controller. • The LED light will be visible from the viewing window on the bottom left. Verify that the gas is flowing into the injector. •...
-
Page 9: Wiring Diagram
Wiring Diagram This unit is shipped with the wiring as shown. 110V or 240V can be applied to the black and white wires. Match alignment of the white wire of the ozone generator connector with the controller box connector. Keep in mind, the white wire can be moved. Mount the unit so that the tube, light and wires are toward the ground. -
Page 10: Operating Instructions
Operating Instructions Please make sure water will not back into the Aquatic Ozone Generator. Water will damage the unit and void the warranty. Please check these: • Install the unit above water level and as high as possible. • Mount the unit so the tube, light, and wires are toward the ground (disregard the front label.) -
Page 11: Maintenance
Maintenance • To keep your Aquatic Ozone Generator operating properly, please replace the air filter in the unit as needed or wash, dry and reinstall in unit. (Must be absolutely dry before replacement.) • Refer to the chart below. • Renew your spa ozone generator as needed with a repair kit. -
Page 12: Troubleshooting
Troubleshooting Problem Possible Cause What to Do Unit and pump not operating Increase operating time (min. 6 long enough hours is recommended) Adjust total alkalinity between 8 and Total alkalinity not correct 150 ppm Check for proper pH between 7.2 pH not correctly balanced Cloudy water and 7.6... -
Page 13: Warranty
The limited warranty set forth below applies to products manufactured by A2Z Ozone Systems Inc. - and sold by A2Z Ozone Systems or its authorized dealers. This limited warranty is given only to the first retail purchaser of such products and is not transferable to any subsequent owners or purchasers of such products. - Page 14 This information can be sent by EMAIL to us. Please provide ALL pertinent information and send within twenty (20) days to: service@a2zozone.com Otherwise, please fill out completely and return to A2Z Ozone by post within twenty (20) days of purchase.
