A2Z Ozone A-7000 Operating Manual

A2Z Ozone A-7000 Operating Manual

Ozone generator

Advertisement

Quick Links

A-7000 Ozone Generator
Operating Manual
Produced for and Distributed by:
A2Z Ozone, Inc
1844 Cargo Court.
Louisville, KY 40299 USA
1+502-499-4977
EPA Est.: 95432-KY-1
Active Ingredient: Ozone.
Warning: Do Not Inhale Ozone.
Keep Out of Reach of Children.
Produced by:
Bluegrass Water Technology
Shenzhen Co., Ltd.
Shenzhen, Guangdong
EPA Est.: 95432-CHN-1
Made in China
a2zozone.com/pages/warranty
*Register your product at
Version 1.2.2

Advertisement

loading
Need help?

Need help?

Do you have a question about the A-7000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for A2Z Ozone A-7000

  • Page 1 A-7000 Ozone Generator Operating Manual Produced for and Distributed by: A2Z Ozone, Inc 1844 Cargo Court. Louisville, KY 40299 USA 1+502-499-4977 EPA Est.: 95432-KY-1 Active Ingredient: Ozone. Warning: Do Not Inhale Ozone. Keep Out of Reach of Children. Produced by: Bluegrass Water Technology Shenzhen Co., Ltd.
  • Page 2: Table Of Contents

    Table of Contents Important Safety Information ..............2 Technical Specifications ................3 A-7000 Features ..................4 Operating Instructions ................6 Timer Functions ..................7 Maintenance ..................8 Troubleshooting ..................10 Warranty ....................11 This unit is designed to remove pet odor, smoke odor, cooking odor and skunk odor. Do not use this unit for odor caused by flammable items or solvents.
  • Page 3: Important Safety Information

    Important Safety Information READ AND FOLLOW ALL INSTRUCTIONS • Before using this product, read the instruction manual carefully. • Do not cover the air inlets/outlets of the unit. Improper ventilation while operating will result in mechanical failure. • Store the ozone generator in a cool and dry area •...
  • Page 4: Technical Specifications

    Technical Specifications Items Included: • A-7000 ozone generator • A-7000 operation manual • Spare fuse (3 AMP) Model A-7000 Voltage 110/120 V, 50/60 Hz Power 135W Ozone Output 7 g/hour Timer 0-4 hours 10.6 x 8.2 x 7 inches Dimensions 271 x 208 x 177 mm 9.23 lbs...
  • Page 5: A-7000 Features

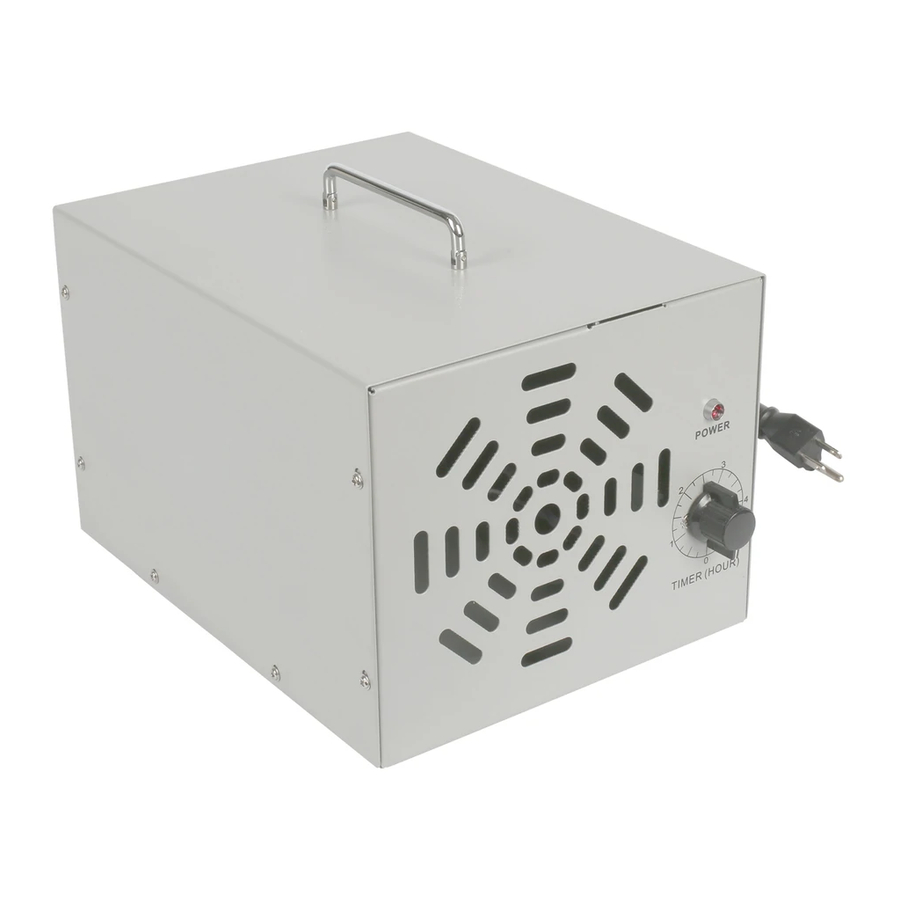

    A-7000 Features Indicates when there is power to the unit. If the power is supplied, Power Light the light will remain a solid red. Timer Used to set desired run time. (15 minutes - 4 hours) Handle For easy carrying. Folds against unit for easy storage.
  • Page 7: Operating Instructions

    • Set the timer and leave the area immediately. • Come back at least 2-4 hours after the ozone generator stops. • Be sure to ventilate the room very well after the A-7000 has stopped producing ozone and the appropriate amount of time has passed.
  • Page 8: Timer Functions

    Timer Functions • The A-7000 have timer function options from 15 minutes to 4 hours. • Turn the timer knob clockwise to set the unit’s timer. • Keep in mind, this unit does not have a repeat timer option. • Be sure to allow the room to sit for at least 2-4 hours before entering.
  • Page 9: Maintenance

    Maintenance Fuse Change Fuses are located on the back left side. The A-7000 uses a 3 AMP glass fuse. Power Cord Plug into appropriate outlet to supply power to the unit. Main Fuse The only fuse on the unit.
  • Page 11: Troubleshooting

    Troubleshooting Problem Possible Cause What To Do If the fan has decreased in speed you will have less ozone produced. If the Fan Malfunction fan quits completely you will not get any ozone production. Replace Fan (Check Voltage) If you have no ozone, it is most likely due to oxidization on the ozone plate.
  • Page 12: Warranty

    A2Z Ozone warrants that it or its authorized dealers will repair or replace, at its option, any part of such products proven to be defective in materials or workmanship within ONE (1) year from the date of retail purchase of such products.
  • Page 13 This information can be also send by EMAIL to us. Please provide ALL pertinent information and send within twenty (20) days to: service@a2zozone.com Otherwise, please fill out completely and return to A2Z Ozone by post within twenty (20) days of purchase. Customer Info:...
