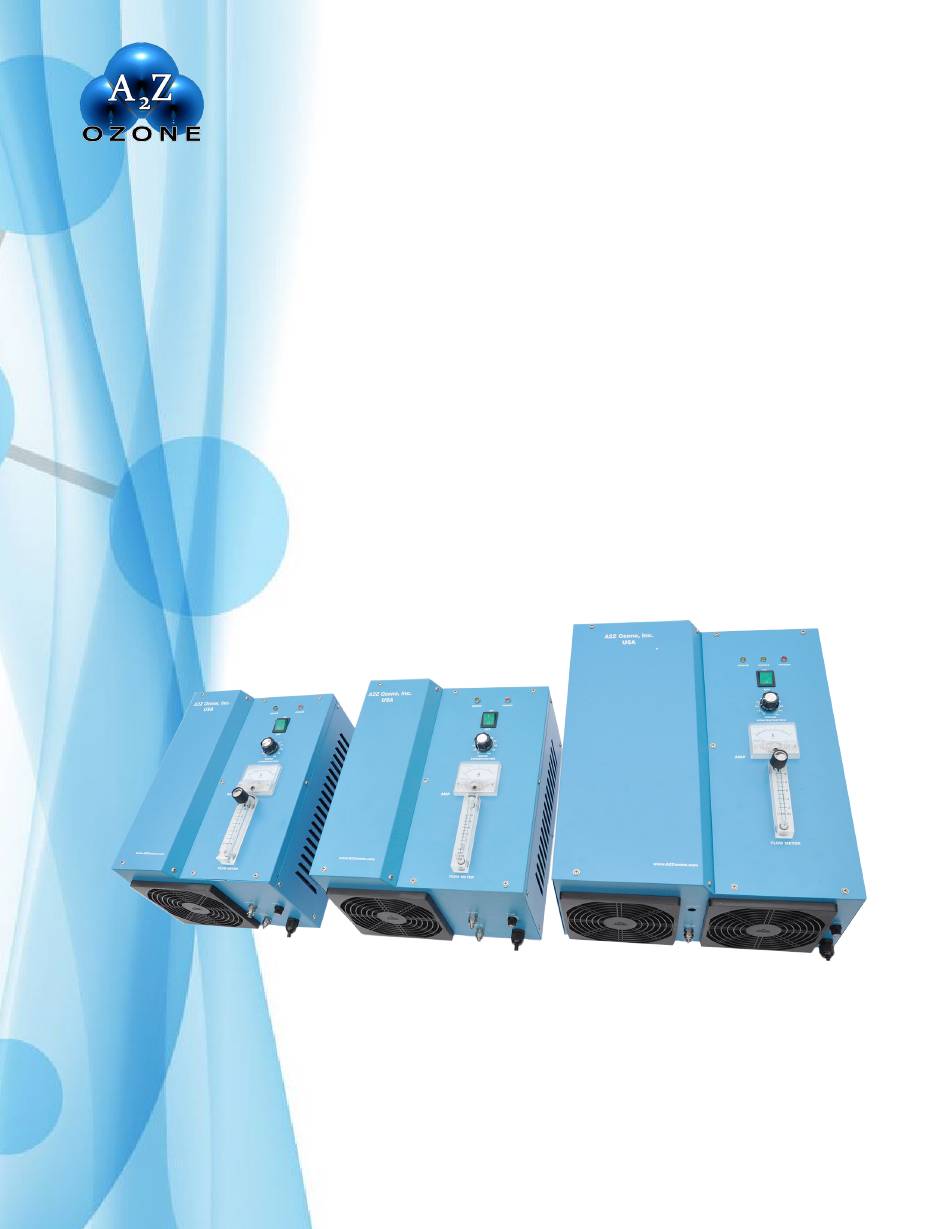

- Page 1 SP Series Operating Manual...
-
Page 2: Table Of Contents
Table of Contents • Important Safety Information ............2 • Technical Specifications ............... 3 • SP Series Features ................4 • Installation Instructions ..............6 • Operating Instructions ..............11 • Schematic Diagrams ............... 13 • Maintenance ..................17 • Troubleshooting ................19 •... -
Page 3: Important Safety Information
Important Safety Information READ AND FOLLOW ALL INSTRUCTIONS • Read this manual completely before attempting installation and/or operation. • Install in accordance with the installation instructions. • Connect to a grounded, grounding type receptacle only. • Follow all applicable electrical codes. •... -
Page 4: Technical Specifications
Technical Specifications Items Included: 1. SP Swimming Pool Ozone Generator 2. SP Swimming Pool operating manual 3. Flexible tubing 4. PTFE tubing 5. Spare fuse 6. Check valve (2) 7. Spare fan filter Ozone Power Model Electric Size (Inches) Weight (lbs) Output (g/h) (Watts) SP-3G... -
Page 5: Sp Series Features
SP Series Features Ozone Light Indicates ozone is functioning. Indicates when there is power to the unit. If the power is supplied, Power Light the light will remain a solid red. Power Switch Used to power the unit on and off. - Page 6 A Z Ozone, Inc. OZONE POWER OZONE CONCENTRATION www.A2Zozone.com FLOW METER...
- Page 7 Plastic ozone supply tubing is supplied with the SP Model. Never replace this tubing with metal tubing. O3 OUT FUSE AIR IN O2 iN Ozone Out Port Ozone is sucked out and injected into the water. Main Fuse If the unit has no power, check here first. This sucks in air for the unit to produce ozone.
-
Page 8: Installation Instructions
• Select a location for the ozone generator that is as close as possible to the ozone injection point. • The SP Series enclosure is not rain proof, so it is important to choose a location that will keep the system away from direct weather and excessive heat. - Page 9 • Identify the pool water return line after the pump, filter and heater, then tap into this point. • The ozone injection point should be the last component in line and as far as possible from the injection point of the residual chemical. •...
- Page 10 Tube Connection and Start Up • Connect a silicone tube (if using an oxygen generator, oxygen tank or external air compressor) to the SP Series unit (Air In) and direct it away from any hot and humid air towards the ozone cell.
- Page 11 • Install a check valve 10 inches after the ozone outlet tube fitting (the venturi has an internal check valve). • This can be done by cutting the tube ten inches after ozone out fitting. • Next, connect both ends of the cut tubes to the check valve. •...
-
Page 12: Operating Instructions
Operating Instructions System Run Times On residential pools, the ozone generator should operate for six to eight hours per day. Normally, the ozone system will run whenever the pool filtration system is operating. Since commercial pool and spa filtration systems normally operate 24 hours a day, the ozone system will run continuously on a commercial pool. - Page 13 Water Preparation To properly prepare the water for the ozone system, make the following adjustments and maintain the levels outlined below: Bromine 1.0 PPM Chlorine 1.0 to 2.0 PPM and pH 7.2 to 7.6 Total Alkalinity 100 to 150 PPM Calcium Hardness 200 to 350 PPM NOTE: If any unusual reactions are experienced when ozone is introduced into the water...
-
Page 14: Schematic Diagrams
Schematic Diagrams SP SERIES OZONE OUT OZONE TO INJECTOR MANIFOLD OXYGEN IN CHECK VALVE VENTURI WATER IN WATER OUT BY PASS VALVE INJECTOR MANIFOLD (Figure 1.1) - Page 15 Hartford Loop prevents water Hartford Loop return to ozone must be placed generator min. 50 mm higher than the ozone generator (best when above the highest body of water) Ozone pump must Connect ozone run when pool Series generator to pump is running Ozone timer switch...
- Page 16 NOTE: SP UNIT AND OZONE LINE SHOULD BE ABOVE WATER TANK LEVEL. THIS PREVENTS WATER BACK FLOW TO THE OZONE GENERATOR. Series Ozone to injector manifold Air Input Check Valve Swimming Pool Air Filter Venturi Injector Manifold Pool Filtration and Pump (Figure 1.3)
- Page 17 Attach Ozone Line gauge to check vaccum GAUGE vacuum -2 to -3 PSI (-0.14 to -0.21 bars) Do not block lower half Injector Manifold with Check Valve Figure 2...
-
Page 18: Maintenance
NOTE: In a clean environment, this procedure may only need to be performed every three months. • Turn the SP Series ozone generator off. • Clean the filter screen with water and soap. • Dry the filter with a clean towel. - Page 19 Check Valves Two check valves are available for the ozone delivery system. One where the ozone tubing attaches to the ozone generator and one where it attaches to the injector. The purpose of these check valves is to prevent water from backing up into the ozone generator. The PTFE ozone delivery line(s) should be inspected daily to ensure water is not flowing back into the ozone generator.
-
Page 20: Troubleshooting
• Check ozone control knob is set above zero. • Check ozone board fuse, 3 AMP. • Check wire from terminal to ozone board. • Check pot wire is connected to ozone board. If you are still experiencing problems, please contact A2Z Ozone for more information. -
Page 21: Faq
What are the benefits of using ozone? • Bacteria kill rate is up to three thousand times faster • 50% stronger oxidizer than chlorine • Reduces traditional chemical usage between 60% to 95% • Reduce handling and storage of unsafe chemicals •... - Page 22 is removed, and a venturi injector is installed. The injector’s diameter is smaller in the middle, similar to squeezing or pinching a hose. The water traveling into the injector begins to move faster. In the middle of the injector there is a small hole. As water is pumped through the plumbing and past the hole, a vacuum is created.
- Page 23 Is ozone safe for swimmers? Ozone is dissolved in the water in pH neutral so the pH will not harm equipment or people. The amount of ozone added to the water is enough to kill bacteria, virus, cysts, mold and spores, but is safe and non-toxic to humans and pets –...
- Page 24 a definite “clarity and sparkle” that you may not have experienced before. In addition, after the ozone does its work, it reverts back to oxygen. This added oxygen will make the water look, feel and even taste better. How should I prepare my pool or installation of the ozonator? •...
- Page 25 or maximum level for ozone in swimming pool water because of the multiple variables involved such as air temperature, water temperature, humidity and bather load. Pool owners who have been using chlorine of bromine for a few season know how much sanitizer they use in a season or year.
-
Page 26: Warranty
The limited warranty set forth below applies to products manufactured by A2Z Ozone Systems Inc. - and sold by A2Z Ozone Systems or its authorized dealers. This limited warranty is given only to the first retail purchaser of such products and is not transferable to any subsequent owners or purchasers of such products. - Page 27 This information can be also sent by EMAIL to us. Please provide ALL pertinent information and send within twenty (20) days to: service@a2zozone.com Otherwise, please fill out completely and return to A2Z Ozone by post within twenty (20) days of purchase. Customer Info:...
