A2Z Ozone Aqua-6 Manual

Technical Specifications

Items Included:

Aqua-6 Ozone Generator
Aqua-6 Ozone Generator Operating Manual
Two sets of long tubes for ozonation (each 36" long)
Two short spare tubes for internal replacement if needed (1.75" and 2.75" long)
Fine white diffuser stone
Course gray diffuser stone
Spare fuse

Special Features:

15-Setting Function Timer
Lightweight and Portable
Wall-Mountable

Aqua-6 Specifications
Power Input	110 VAC, 50/60 Hz (10w)
Ozone Output	120 mg/hour
Weight	0.865 kg or 1.7 lbs
Dimensions	270 L x 190 W x 75 H (millimeters) 11 L x 8 W x 3 H (inches)

Operating Instructions

Plug the ozone generator into an electrical outlet
Attach one end of the ozone supply tubing (36-inch long) into the ozone outlet at the bottom of the generator and attach a stone diffuser into the other end of the tube or venturi application.
* Extend the tubing so that the applicaiton process and the Aqua-6 are as far apart as possible
Push in the main power switch located on the face of the unit to the ON position
* The red light above the main power button will illuminate
* The LED will indicate 00 while blinking
Use the Plus (+) and Minus (-) Buttons to select the desired function setting from the table for desired application time
- The ozone generator will start 10 seconds after you select the setting on the LED screen
Once the generator starts producing ozone, the LED changes to display the time remaining for the setting you have chosen
Once the cycle is complete, the LED screen will change back to the setting number for repeat settings or (00) for one time run settings
- Remember, settings 1 through 5 are a one-time run setting
- Settings 6 through 10 continuously repeat cycle every hour
- Settings 11 through 15 continuously repeat every 4 hours
To pause a setting, simply press the pause button below the LED screen
The LED will hold the previously selected function and the time remaining until the pause button is pressed again
Press the Plus (+) or Minus (–) Buttons to select another function if desired
After the function is complete, the air compressor will run for 10 seconds and will automatically shut off
Please allow the air compressor to shut off and then unplug or cut power to the unit
- This will allow the ozone to purge out and will prolong the unit's operating life span
- The unit is now powered down and ready for storage or transport

NOTE: This unit is not made for continuous operation. Do not intentionally run the unit without a 15 minute pause in between each run time.

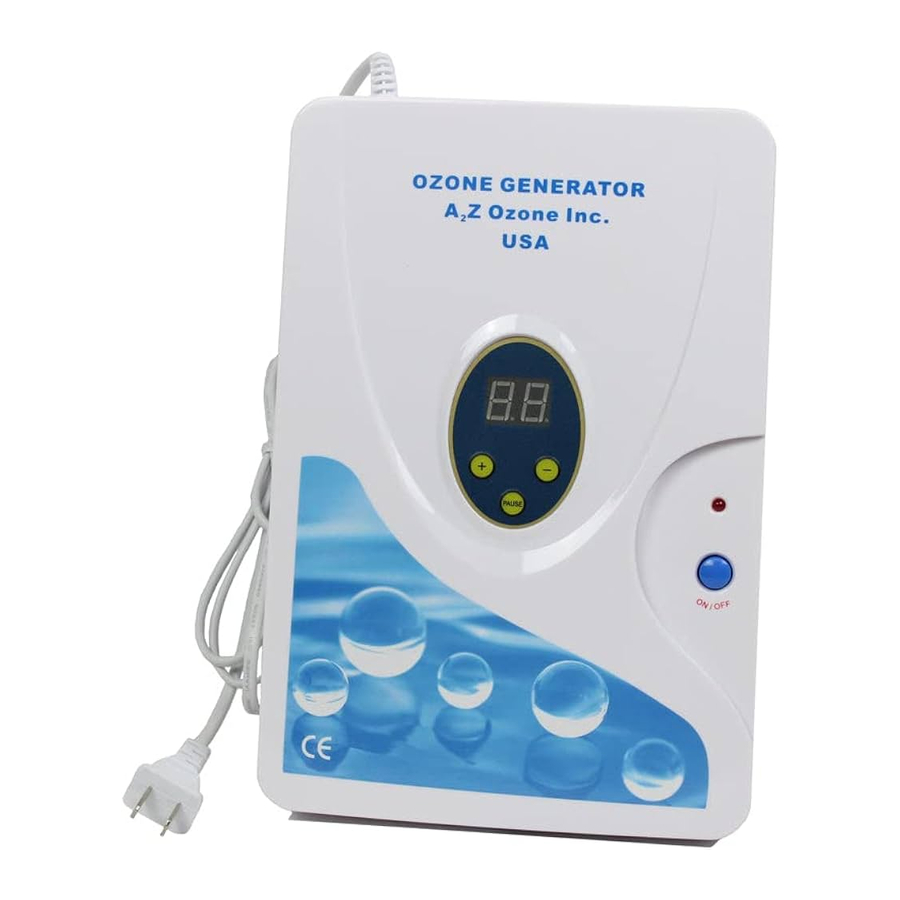

Product Features

1	Light	Indicates when the unit has power. When it is in on, the light will remain a solid red.
2	On/Off Button	Use to turn the unit on and off. When on, the red light will illuminate.
3	Pause Button	Use to pause the unit when it is in operation. The LED will hold the previously selected function and the time remaining until the Pause Button is pressed again.
4	LED Screen	Displays function setting selected and operation time remaining after the Aqua-6 begins producing ozone. The ozone production will start 10 seconds after the selection is made on the LED.
5	Minus (-) Button	Use to select desired function setting from the Timer Function table. The Minus Button will move the Function number down sequentially.
6	Plus (+) Button	Use to select desired function setting from the Timer Function table.
7	Tube Input	Where the silicon tubing is attached to the unit. One end of the ozone supply tubing is attached to the ozone outlet on the Aqua-6 unit, while the other end is attached to a diffuser stone.
8	Power Cord	Where the electrical cord is attached to the unit. Wait for the air compressor to automatically shut off after each function before unplugging the unit.

Timer Functions

Function #	Description
1	Run 2 minutes and turns off, one time run only
2	Run 5 minutes and turns off, one time run only
3	Run 10 minutes and turns off, one time run only
4	Run 15 minutes and turns off, one time run only
5	Run 20 minutes and turns off, one time run only
6	Operates for 2 minutes every hour, repeats every hour
7	Operates for 5 minutes every hour, repeats every hour
8	Operates for 10 minutes every hour, repeats every hour
9	Operates for 15 minutes every hour, repeats every hour
10	Operates for 20 minutes every hour, repeats every 4 hours
11	Operates for 2 minutes every 4 hours, repeats every 4 hours
12	Operates for 5 minutes every 4 hours, repeats every 4 hours
13	Operates for 10 minutes every 4 hours, repeats every 4 hours
14	Operates for 20 minutes every 4 hours, repeats every 4 hours
15	Operates for 30 minutes every 4 hours, repeats every 4 hours
Setting	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
Run Time (min)		2	5	10	15	20	2	5	10	15	20	2	5	10	20	30
Repeat Time (hours)							1	1	1	1	1	4	4	4	4	4

Important Safety Information

Any deviation from the operating manual or induced malfunction such as water damage or continuous run of the ozone generator is not covered by the terms of the warranty.
This unit is not made for continuous operation. Do not run the unit without a 15-30 minute pause between run times.
Place ozone machine higher than application level to avoid damage and electrical shock.
Be sure to turn the unit OFF after each use.
Connect ozone tube to ozone outlet in the left side of the unit.
The use of ozone test strips or dissolved ozone monitor is recommended.

Read Before First Use

Read the safety information above and operating manual carefully before use.
Do not cover the air inlet on the back of the unit or the ozone outlet at the bottom of the unit.
Store ozone generator in a cool, dry area when not in use.
Do not take the ozone generator apart because mechanical failure may result.
Return the unit directly to the manufacturer if malfunction occurs.
Do not breathe in ozone directly.

In case of leakage, install the ozone generator in a well-ventilated area.
In accordance with California Regulations, this ozone generator is solely for industrial use and must be installed by a professional. Potential health hazard: emits ozone.

Do Not Inhale Ozone. Keep Out of Reach of Children.

Do Not Inhale Ozone. Ozone Can Damage Lungs if Inhaled. Remove Immediately to Fresh Air if exposed. Keep Out of Reach of Children. Hazards to Humans and Domestic Animals-Do Not Expose Children, People, Pets, Plants or Valuables to Ozone. Ozone Health lnformation-lf exposed to ozone, get to fresh air immediately. Seek doctor's advice if exposed to ozone.

shock hazard HIGH VOLTAGE! Perform service on ozone generator by certified technicians only! For your safety, do not store or use gasoline, chemicals or other flammable liquids or vapors near this or any other appliance. NOTE: Use Only As Directed. Follow All Instructions Provided in the Manual. Buyer will assume all responsibility for installation, running and use not in accordance with direction.
