Rodix FEEDER CUBE FC-70 Series Adjustments And Set Up page 3

OFF/ON CONTROL GUIDE
See section 4 of the Application Note for more
details on the REMOTE OFF/ON CONTROL guide.
A) LOW CURRENT SWITCH
1 2 3 4
FC-70 SERIES TERM STRIP TB-2
INPUT
ON/OFF
HOT
120 VAC
50/60 Hz
COM
GND
MODEL INPUT VAC
FC-75
B)
LOW VOLTAGE INPUT SWITCHING
(DC Voltage from PLC or FC-90 Plus)
10-30 VDC INPUT VOLTAGE
OFF/ON CONTROL
- +
1 2 3 4
FC-70 SERIES TERM STRIP TB-2
Model FC-75
(Shown with customer supplied wiring, switch and fuse.)
LOAD
1
5 AMP
HOT
2
COM
3
COM
4
P/N 24-214
AMPS
120 VAC 5
TB1
Run
4
RUN
J1
JUMPER
AMP.
3
POT
2
+12-24 Ext.
Volts
- Gnd
TB2 1
GND
OUTPUT
0-120 V
RODIX INC.
FEEDER CUBE
FC-70 Series

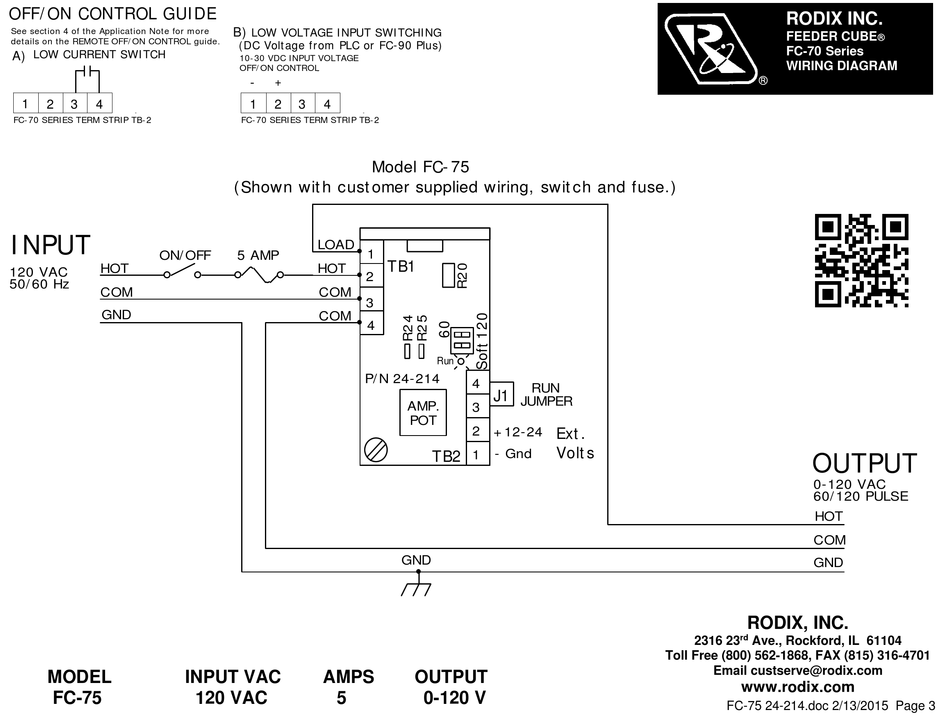

WIRING DIAGRAM

OUTPUT
0-120 VAC
60/120 PULSE
HOT
COM
GND
RODIX, INC.
rd
2316 23 Ave., Rockford, IL 61104
Toll Free (800) 562-1868, FAX (815) 316-4701
Email custserve@rodix.com
www.rodix.com
FC-75 24-214.doc 2/13/2015 Page 3

