Rodix FEEDER CUBE FC-44 Plus Adjustments And Set Up

Download this manual

FEEDER CUBE ®

Plus

FC-44

OPEN FRAME MODEL

IMPORTANT: APPLICATION NOTE

Input: 120 VAC, 50/60 HZ.

(Operating range 90-130 VAC)

Single Unit Fuse Size: 15 AMPS

Output: 0-120 VAC

100% Duty Cycle 0.6-12A, 80% for 13-15A

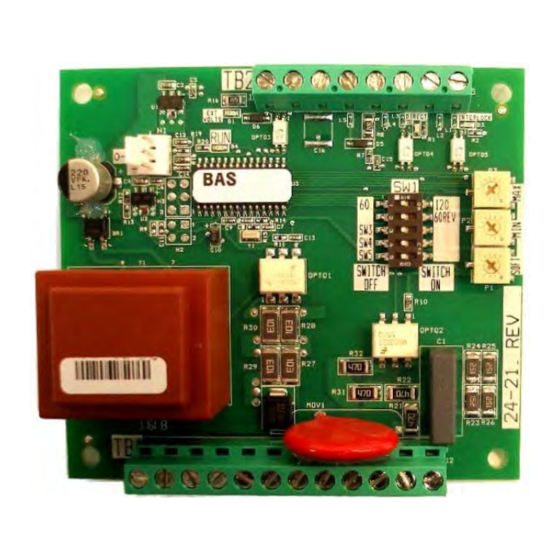

Circuit Board P/N 24-210

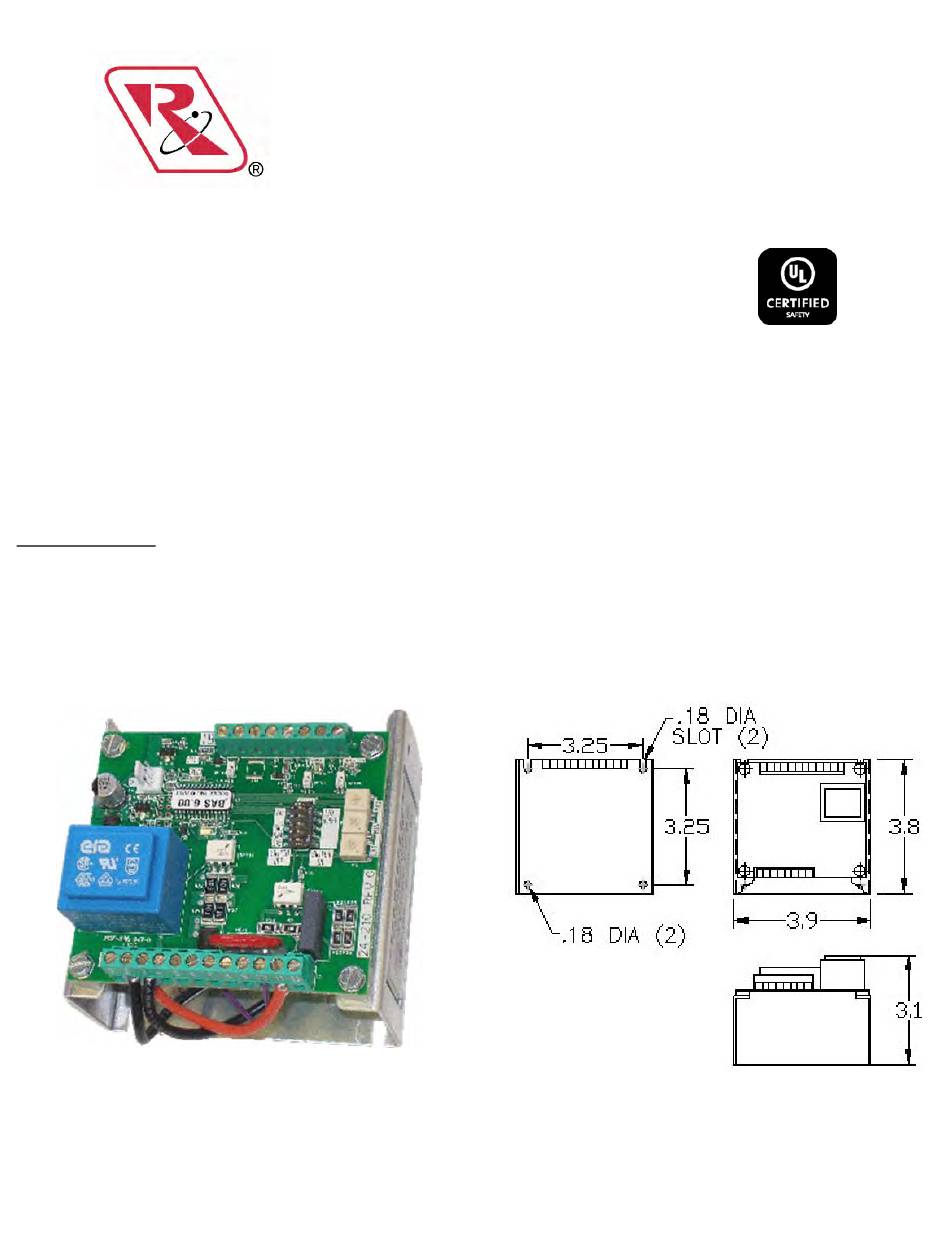

Model Information: This control is a Sub Panel Mount version of the FC-40

and switch are sold separately in control kit P/N 123-000-0003. A DIN rail mounting kit is available, P/N 123-000-0372. For

more information on this control, refer to the enclosed Adjustments and Set Up pages.

RODIX INCORPORATED

TOLL FREE (800) 562-1868, FAX (815) 316-4701

E-mail custserve@rodix.com

, P/N 121-000-0886

INC

rodix.com

Plus

File No. E183233

Series Feeder Cube®. The potentiometer

FC-44 Plus.docx 4/2//2019 Page 1

Table of Contents

Need help?

Do you have a question about the FEEDER CUBE FC-44 Plus and is the answer not in the manual?

Page 1 P/N 123-000-0003. A DIN rail mounting kit is available, P/N 123-000-0372. For more information on this control, refer to the enclosed Adjustments and Set Up pages. © 2000, 2019 RODIX FC-44 Plus.docx 4/2//2019 Page 1...
Page 2 RODIX INC. AUX FEATURE JUMPER TERM. STRIP FEEDER CUBE  O P T IO NA L (SMALL) MA IN Plus Series FC-40 C O NT RO L WIRING DIAGRAM P O T  External 4 -2 0 mA Interlock Direct...
Page 3: Adjustments & Set Up
"Parts Sensing Feeder Bowl Control" such as an available for use on applications requiring a three Plus FC-90 wire DC sensor, an interlock output, or a Constant Feed Rate (vibration feedback) sensor. FC-40 Plus Set Up.doc 3/7/2018 Page 3 © 2000, 2017 RODIX...
Page 4: Warranty
ON and OFF. Move jumper "J1" from terminal If under warranty, Rodix will repair or replace your control pots. See the S1 Switch Programming Chart. For 7, to terminal 5, (6 remains the same). Then at no charge;...
Page 5: Rodix Solution
Rodix controls have been designed with a AUX output. The shield “drain” wire high degree of immunity to electrical should be tied to the chassis in the Rodix RECTIFIER noise; however, depending on the control RELAY DIODE control. The drain wire should be kept...
