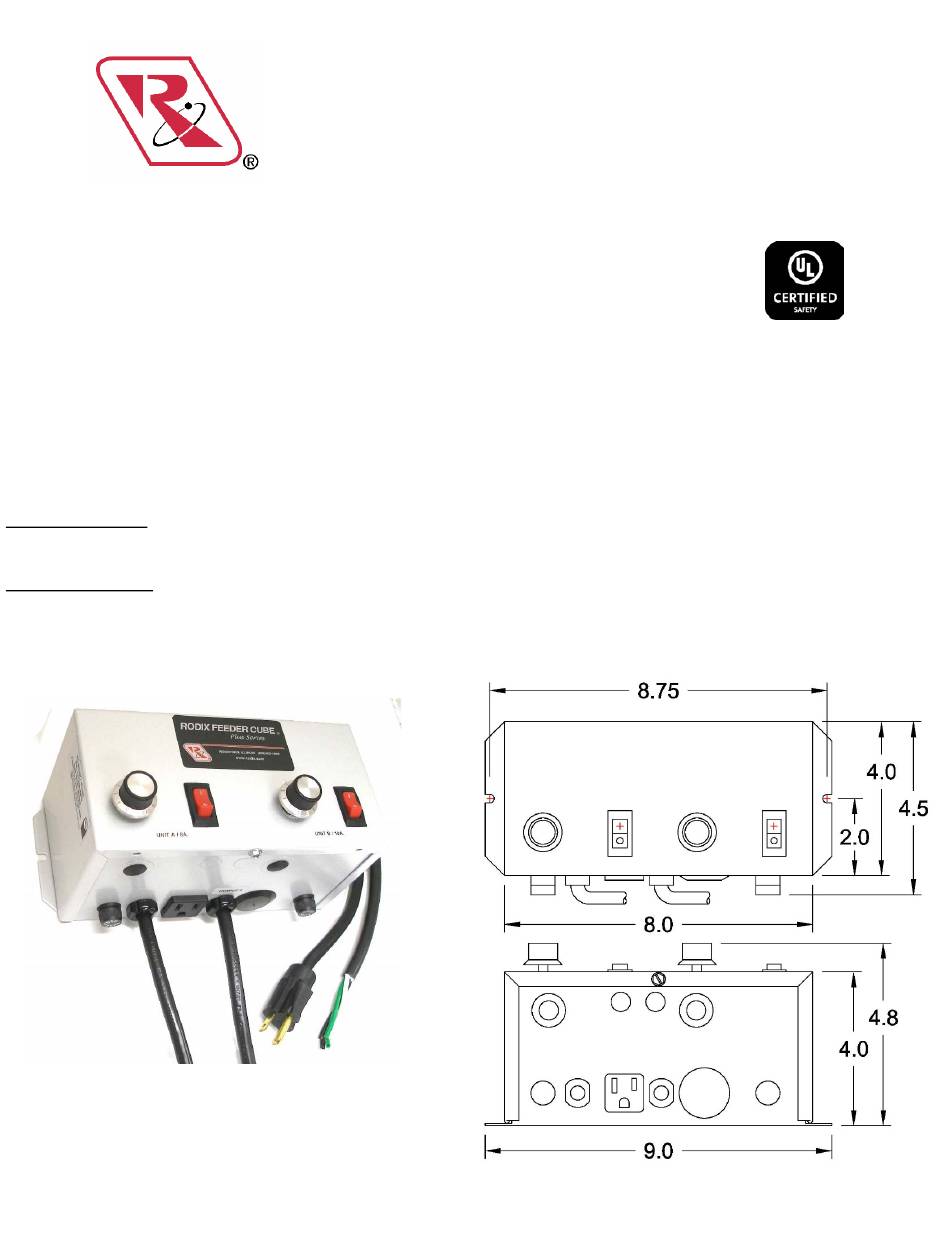

FEEDER CUBE ®
Plus
FC-42
GENERAL PURPOSE MODEL
IMPORTANT: APPLICATION NOTE
Input: 120 VAC, 50/60 HZ.
(Operating range 90-130 VAC)
Unit A Fuse Size: 10 AMPS
Unit B Fuse Size: 8 AMPS
Output: 0-120 VAC
Circuit Board P/N 24-210
Unit A Information: This control is based on the FC-40
on this control, refer to the enclosed Adjustments and Set Up pages.
Unit B Information: This control is based on the FC-40-DC
information on this control, refer to the enclosed Adjustments and Set Up pages.
© 2022 RODIX
INC
RODIX INCORPORATED
TOLL FREE (800) 562-1868
E-mail custserve@rodix.com
, P/N 121-000-1407
.
rodix.com
Plus
Series General Purpose Feeder Cube®. For more information
Plus
Series General Purpose Feeder Cube®. For more
File No. E183233
US and Canada
FC-42-DC-B Plus.docx 9/1/2022 Page 1
