Rodix FEEDER CUBE FC-70 Series Adjustments And Set Up page 2

6. FEATURE PROGRAMMING CHART
"X" means the setting could be in either position
because the position doesn't matter.
"0" means the "resistor" jumper has been removed.
Feature Programming Chart
Program Description SW1
Standard Program X
60 Pulse Reverse 60
40 Pulse Operation 120
Low Voltage at "1" X
7. LOW VOLTAGE AT "1"
Some small feeders may feed faster than desired at low
settings on the dial. The "Low Voltage at 1" program
allows the control's output to operate at a much lower
minimum voltage than the standard minimum voltage.
To enable this feature break through resistor R25 with a
knife.
TROUBLESHOOTING
For the control to run: The AMPLITUDE POT must be
turned up and the RUN LED must be lit. To light the
RUN LED, connect a Run Jumper from TB2 terminal 3
to 4, or apply a 10-30 VDC signal at TB2 terminals 1 &
2. See the "FC-70 Troubleshooting Guide" for more
information. If the feeder only hums or barely moves
parts, toggle the 60/120 dip switch to match the feeder's
tuning.
WARNING:
Fuses should be replaced with a Bussman ABC or
Littelfuse 3AB "Fast Acting" type or equivalent of
manufacturer's original value.
Mounting this control on a vibrating surface will
void the warranty.
WARRANTY
Rodix Control Products are Warranted to be free from
defects in material and workmanship under normal use
for a period of two years from date of shipment. For the
full description of the warranty, terms, and software license,
please contact the factory.
For assistance installing or operating your Rodix Feeder
Cube® please call the factory or visit our web site. Technical
help is available to answer your questions and email any
needed information. To return a control for IN or OUT of
warranty service, please ship it prepaid to:
Rodix Inc., ATTN: Repair Department
If under warranty, Rodix will repair or replace your control at
no charge; If out of warranty, we will repair it and you will be
billed for the repair charges (Time and Material) plus the
return freight.
request. A brief note describing the symptoms helps our
technicians address the issue.
R24 R25
Feeder Cube® is a registered TM of Rodix Inc.
1 1
0 X
0 X
X 0
Quotes for repairs are available upon

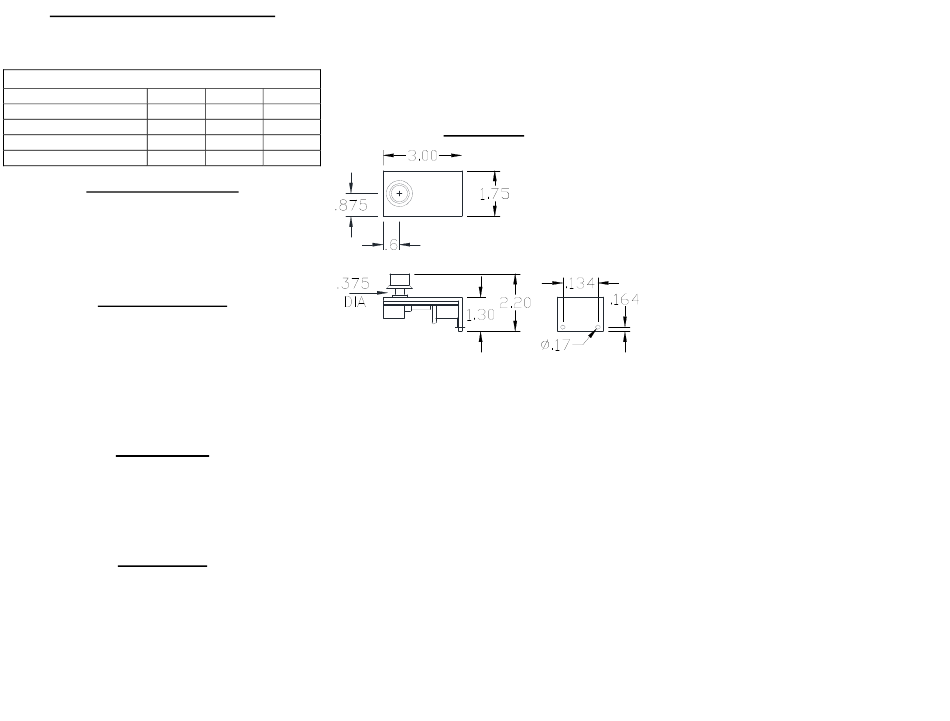

DIMENSIONS
RODIX, INC.
rd
2316 23 Ave., Rockford, IL 61104
Toll Free (800) 562-1868, FAX (815) 316-4701
E-mail custserve@rodix.com
www.rodix.com
FC-75 24-214.doc 10/28/2016 Page 2
