5.1.3

Arc ignition

To change the ignition type, use parameter
Expert menu > see 5.1.10 chapter.
5.1.3.1

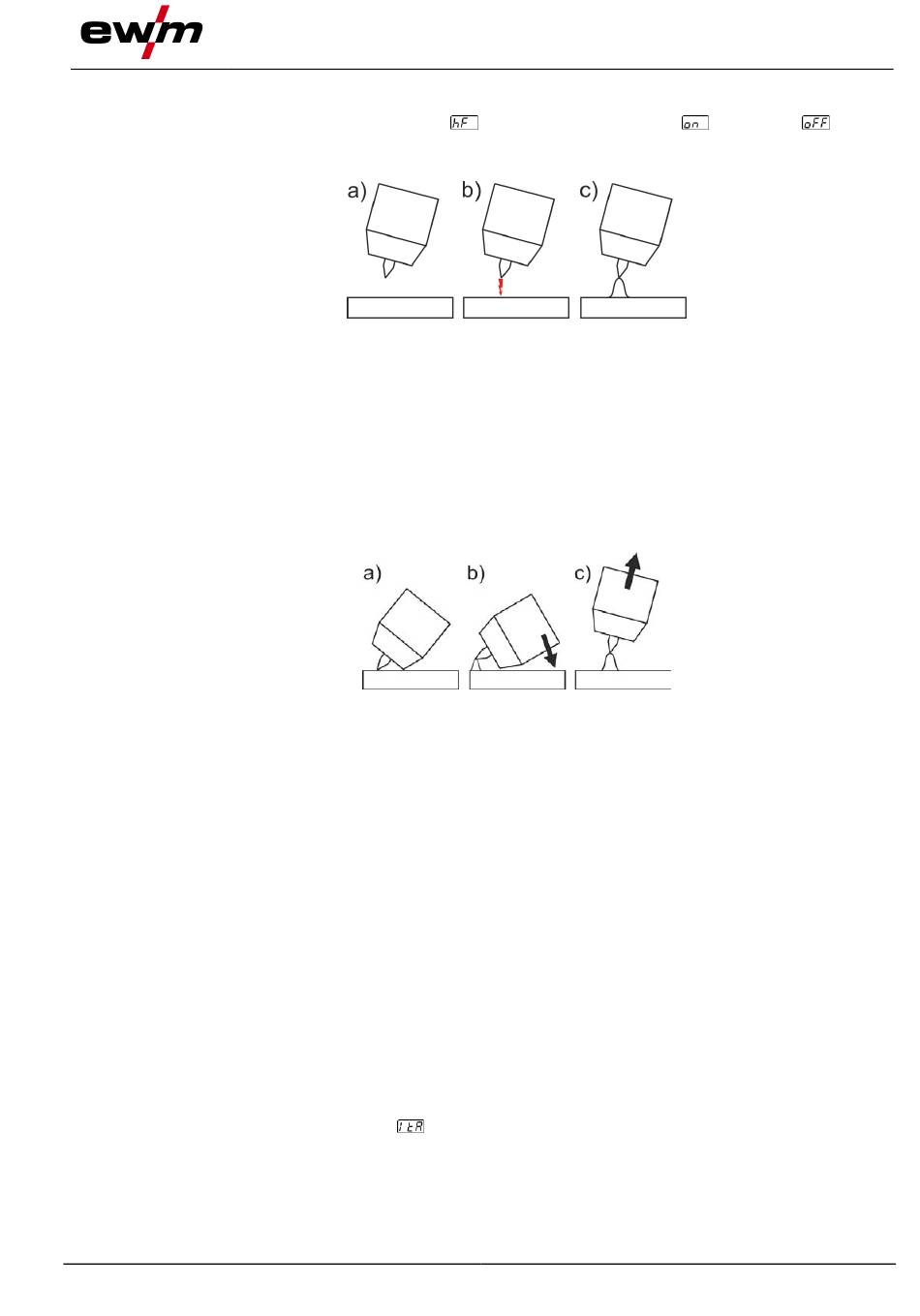

HF ignition

The arc is started without contact from high-voltage ignition pulses.
a) Position the welding torch in welding position over the workpiece (distance between the electrode tip
and workpiece should be approx. 2-3mm).
b) Press the torch trigger (high voltage ignition pulses ignite the arc).
c) Ignition current flows, and the welding process is continued depending on the operating mode select-
ed.
End the welding process: Release or press the torch trigger depending on the operating mode
selected.
5.1.3.2

Liftarc

The arc is ignited on contact with the workpiece:
a) Carefully place the torch gas nozzle and tungsten electrode tip onto the workpiece and press the torch
trigger (liftarc current flowing, regardless of the main current set).
b) Incline the torch over the torch gas nozzle to produce a gap of approx. 2-3 mm between the electrode
tip and the workpiece. The arc ignites and the welding current is increased, depending on the operat-
ing mode set, to the ignition or main current set.
c) Lift off the torch and swivel to the normal position.
Ending the welding process: Release or press the torch trigger depending on the operating mode select-
ed.
5.1.3.3

Automatic cut-out

Once the fault periods have elapsed, the automatic cut-out stops the welding process when it has been
triggered by one of two states:
• During ignition
5 s after the start of the welding process, no welding current flows (ignition error).
• During welding
The arc is interrupted for more than 5 s (arc interruption).
> see 5.6 chapter
You can disable or set the time for re-ignition after an arc interruption in the machine configuration
menu > see 5.6 chapter (parameter
The setting is specified separately for each welding task (JOB).
