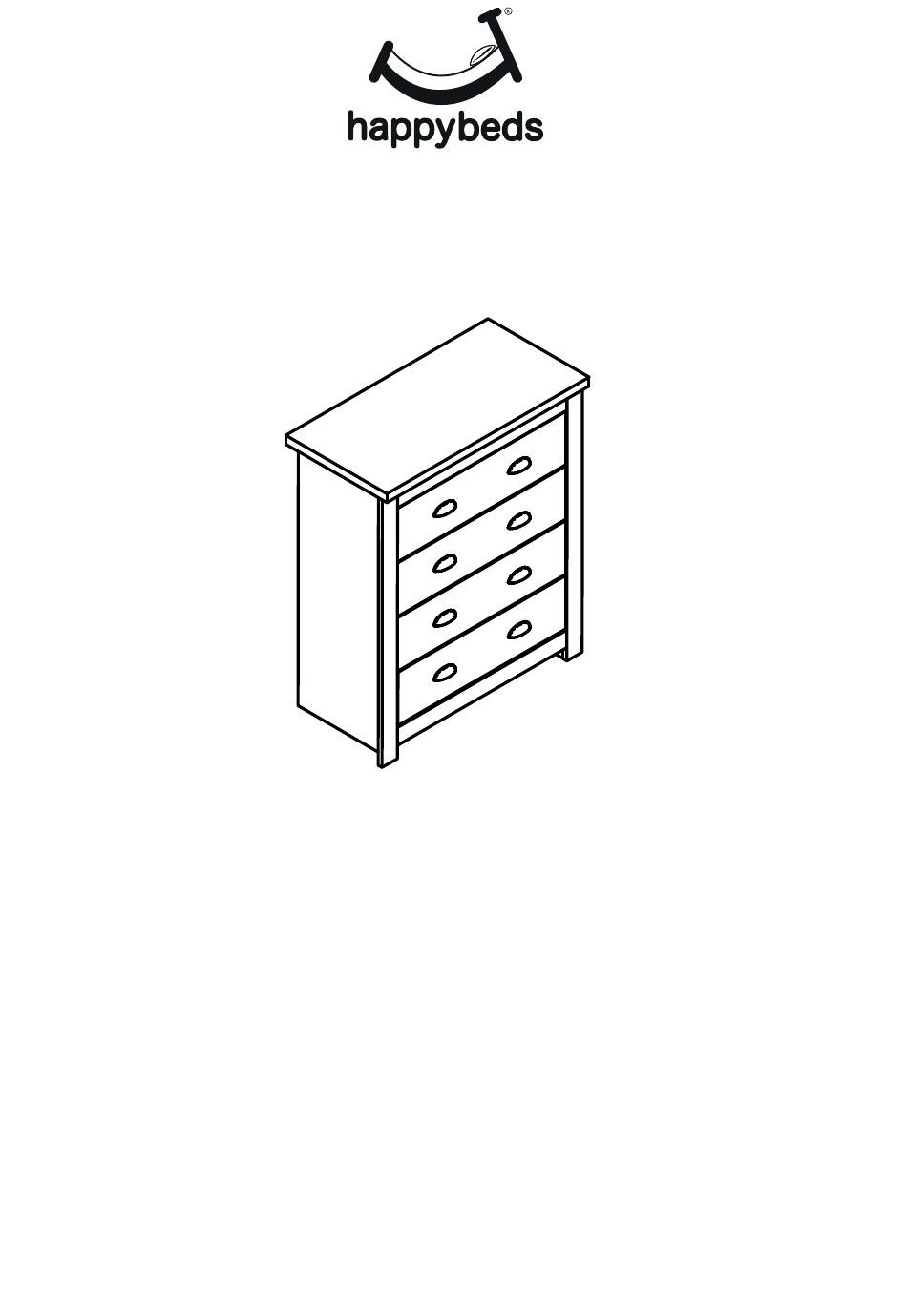

Assembly Instructions
Winchester 4 Drawer Chest
Important before assembly:
Read these instructions carefully before assembling or using the product.
Please check the contents of the boxes before attempting to assemble this product. The instructions will
have a checklist of parts and fittings.
It would be sensible to lay a rug or a carpet on the floor where you intend to assemble the product,
to void scratches and damaging the product or the floor.
Assemble the product as close to its intended final location/room as possible.
Do NOT use any power tools as this may damage the frame.
Health & Safety:
This product or some parts of this product will be heavy. Please use an assistant when lifting.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Please keep small parts out of reach of children.
Always use on a level, even surface.
Please keep these instructions for future reference.
www.happybeds.co.uk

Advertisement

loading

Related Manuals for Happybeds Winchester 4 Drawer Chest

Summary of Contents for Happybeds Winchester 4 Drawer Chest

  • Page 1 Assembly Instructions Winchester 4 Drawer Chest Important before assembly: Read these instructions carefully before assembling or using the product. Please check the contents of the boxes before attempting to assemble this product. The instructions will have a checklist of parts and fittings.
  • Page 2 Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints. Use a carpet or a rug for extra care. If you have problems assembling or have damaged or missing pieces, please contact us by visiting: https://www.happybeds.co.uk/customer-service...
  • Page 3 Vendor: S000401 Parts List Hardware List Part Item Part Item Wooden Dowel Right Side Left Side Cam Bolt Baseboard Cam Lock Tack Traverse Slip Shoe Right Column Left Column 14mm Screw Bottom Traverse Sticker Upper Traverse Handle Back Side Slide Drawer Front Drawer Back Drawer Slide...
  • Page 4 Vendor: S000401 Step 1: Insert the hardware (A) into the upper traverse (9), baseboard (3), traverse (5) and drawer side (13). Do NOT use any power tools are this may damage the frame and will invalidade any claim. Step 2: Insert the hardware (B) into the right side (1), left side (2), top (4), bottom traverse (8) right column (6), left column (7), drawer front (11) and drawer back (12).
  • Page 5 Vendor: S000401 Step 3: Assemble the right column (6) and left column (7) to the right side (1) and left side (2) using hardware (C). Do NOT use any power tools are this may damage the frame and will invalidade any claim. Step 4: Assemble the bottom traverse (8) to the traverse (5) using hardware (C).
  • Page 6 Vendor: S000401 Step 5: Attach the upper traverse (9), the traverse (5) and the baseboard (3) to the right & left side (1 & 2) using hardware (C) and (A). Do NOT use any power tools are this may damage the frame and will invalidade any claim. Step 6: Insert hardware (L) and (K) to the upper traverse (9) as shown below.
  • Page 7 Vendor: S000401 Step 7: Attach the back (10) to the back of the assembled product using hardware (D) and combining them using hardware (N). Do NOT use any power tools are this may damage the frame and will invalidade any claim. Step 8: Attach the drawer side (13) and drawer traverse (15) to the drawer back (12) using hardware (B), (C), (M) and screwdriver (not included), then insert the drawer bottom (14).
  • Page 8 Vendor: S000401 Step 9: Insert the drawer as shown below. Place hardware (G) over the holes shown below. Attach the safety strap (O) to the back of the sideboard and wall following the diagram. Do NOT use any power tools are this may damage the frame and will invalidade any claim. Inserting the Drawers O Safety Strap...

  • Page 9: General Care And Maintenance
