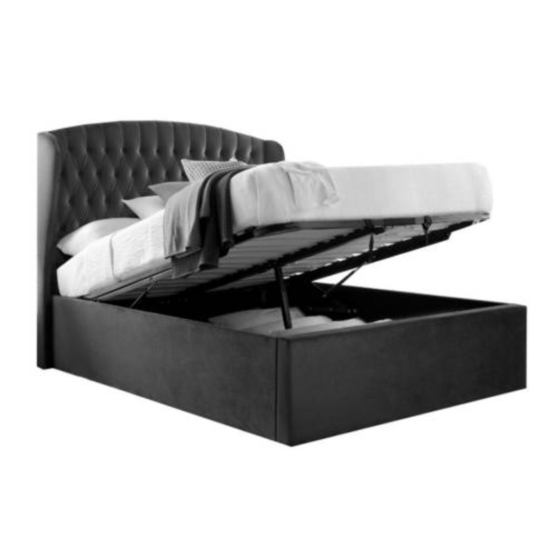

Happybeds Warwick Ottoman Bed 5ft Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Important before assembly:
Read these instructions carefully before assembling or using the product.
Please check the contents of the boxes before attempting to assemble this product. The instructions will
have a checklist of parts and fittings.
Assemble the product as close to its intended final location/room as possible.
Health & Safety:
This product or some parts of this product will be heavy. Please use an assistant when lifting.
Please keep small parts out of reach of children.
Always use on a level, even surface.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Further instructions are on the following pages.
Please keep these instructions for future reference.
Warwick Ottoman Bed 5ft
Assembly Instructions
.
www.happybeds.co.uk

Advertisement

loading

Related Manuals for Happybeds Warwick Ottoman Bed 5ft

Summary of Contents for Happybeds Warwick Ottoman Bed 5ft

  • Page 1 Warwick Ottoman Bed 5ft Assembly Instructions Important before assembly: Read these instructions carefully before assembling or using the product. Please check the contents of the boxes before attempting to assemble this product. The instructions will have a checklist of parts and fittings.
  • Page 2 These tools are not necessary, but may help to assemble the product. Do NOT use any power tools as this may damage the frame. (Not metal) This product or some parts of this product will be heavy. Please use an assistant when lifting. Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints.
  • Page 3 REQUIRE 2 PEOPLE TO ASSEMBLE Page 2 of 10...
  • Page 4 No Part List No Hardware List Headboard 1 pc JCBC M6 x 35mm 8 pcs Footboard 1 pc JCBC M6 x 45mm 8 pcs Side Rail 2 pcs JCBC M6 x 80mm 2 pcs Metal Bed Base Frame 1 set JCBB M8 x 16mm 18 pcs U-bracket...
  • Page 5 Step 1: To fix the left side rail (C) and right side rail (C) to the headboard (A) and footboard (B) you will need to use hardware parts 5 with the M5 allen key (16). JCBB M8 x 20mm 8 pcs 16 Allen Key M5 1 pc Do Not Use Power Tools...
  • Page 6 Step 3: To install Hydraulic (H) to the (G), you will need to loose out the M8 HEX nut from the part (G). After the part (H) go inside the position, put back the M8 HEX Nut and tighten it using M8 Spanner (14). To install the complete set of (G) to the left and right side rail (C), you will need to use hardware 5 and 7 with Allen key M5 (16).
  • Page 7 Step 4: To assemble part D, it is a must to make sure the hole go into the right position as shown in (NOTE). And before tighten the screw, please make sure part G is in same alignment in between left and right side of part G. DO NOT use any power tools as this may damage the bed frame and will invalidate any claims.
  • Page 8 Step 5: To assemble part D, it is a must to make sure the hole go into the right position as shown in (NOTE). And before tighten the screw, please make sure part G is in same alignment in between left and right side of part G. DO NOT use any power tools as this may damage the bed frame and will invalidate any claims.
  • Page 9 Step 6: To put the 4 X BOTTOM PANEL (K), you will need to slightly raise up the beds from the footboard (B) and slot in the panel go direct to the headboard and continue the second pieces there after the first pieces was in right position. Warning: This bed frame is heavey.
  • Page 10 Step 7: To assembler the side wing (L) you will need to open the velco behind the headboard (A) as shown. DO NOT use any power tools as this may damage the bed frame and will invalidate any claims. JCBC M6 x 35mm 8 pcs M6 Spring Washer 8 pcs...

  • Page 11: General Care

    General Care Recommendations Warning Notes When've correctly adjusted the centre support leg on this bed frame should be raised by 5mm from the floor with added weight of the mattress and bedding. This bed may fail if it is used on a wooden floor WITHOUT the use of non-slip pads on all the support legs and bed posts.
  • Page 12 Important for Ottoman and other gas lift beds Please follow these final steps to ensure the best experience with your new bed • Please ensure the pistons are fitted to the bed frame. • Please place the mattress on top of the bed frame. •...

  • Page 13: General Care And Maintenance

    For more information on cleaning and product care visit: https://www.happybeds.co.uk/help-and-advice Notes In the unlikely event that you have problems putting this product together or have damaged or missing parts, please contact us by visiting: https://www.happybeds.co.uk/customer-service...
