UG381: ZGM130S Zen Gecko
Wireless Starter Kit User's Guide

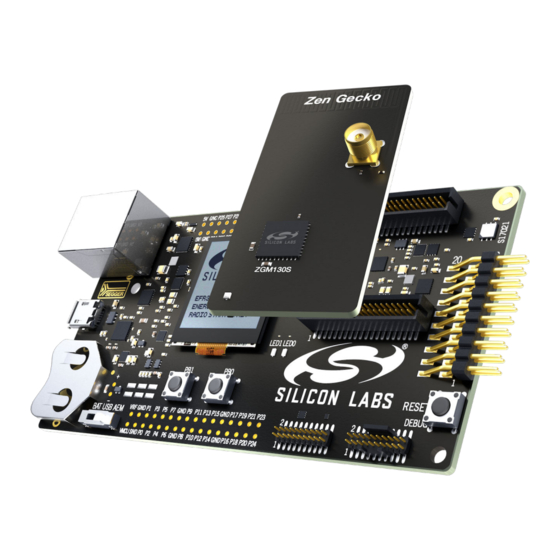

A Wireless Starter Kit with the BRD4202A Radio Board is an ex-
cellent starting point to get familiar with the ZGM130S Zen Gecko
Z-Wave® SiP Module. It also provides the necessary tools for de-
veloping a Silicon Labs wireless application.
BRD4202A is a plug-in board for the Wireless Starter Kit Mainboard. It is a complete ref-
erence design for the ZGM130S SiP Module. The board features an SMA connector for
RF connection, or a PCB antenna that can be selected by moving a 0 Ω resistor.
The Wireless Starter Kit Mainboard contains an on-board J-Link debugger with a Packet
Trace Interface and a virtual COM port, enabling application development and debugging
the attached radio board as well as external hardware. The mainboard also contains
sensors and peripherals for easy demonstration of some of the ZGM130S's many capa-
bilities.
This document describes how to use the BRD4202A Radio Board together with a Wire-
less Starter Kit Mainboard.
silabs.com | Building a more connected world.
BRD4202A RADIO BOARD FEATURES
• ZGM130S Zen Gecko SiP Module with
512 kB Flash, 64 kB RAM. Integrated RF
matching network, crystals, and
decoupling capacitors
(ZGM130S037HGN1)
• SMA antenna connector (863-925 MHz)
• Optional PCB antenna
WIRELESS STK MAINBOARD FEATURES
• Advanced Energy Monitor
• Virtual COM port
• SEGGER J-Link on-board debugger
• External device debugging
• Ethernet and USB connectivity
• Silicon Labs Si7021 relative humidity and
temperature sensor
• Low Power 128x128 pixel Memory LCD
• User LEDs / pushbuttons
• 20-pin 2.54 mm EXP header
• Breakout pads for SiP Module I/O
• CR2032 coin cell battery support
SOFTWARE SUPPORT
• Simplicity Studio™
• Energy Profiler
• iOS and Android applications
ORDERING INFORMATION
• SLWSTK6050A
• SLWRB4202A
Rev. 1.2
