Installation

Lifting Procedure
12 | BC344024774466en-000401
The Danfoss IPS 8 must be installed in
accordance with locations recommended in the
Connection locations and Connection points
sections of this document.
The unit has a protection rating of IP55 and may
be installed outside, in ambient temperature
ranges from from -10 °C to 43 °C / 14 °F to 109 °F).
Avoid installation in direct sunlight as this may
lead to excessive sunlight exposure and ambient
temperatures above allowed limits. For ambient
temperatures below -10 °C (14 °F) the air purger
must be installed in a heated and ventilated
area. The unit must be installed in a non-ATEX
atmosphere as the purger unit is not explosion proof.
The purger unit should be kept in an upright
position at all times - from receipt to final
installation.
All 4 lifting eyes must be positioned correctly, to match the actual used lifting gear
All 4 lifting eyes must be used
Fig. 11
* For easy access to the main switch
* For easy access to the main switch
and servicing, the Purger unit shall be
and servicing, the Purger unit shall be
installed between 0,05 to 1,1 m (2 to 43 in)
installed between 0,05 to 1,1 m (2 to 43 in)
above service platform level.
above service platform level.

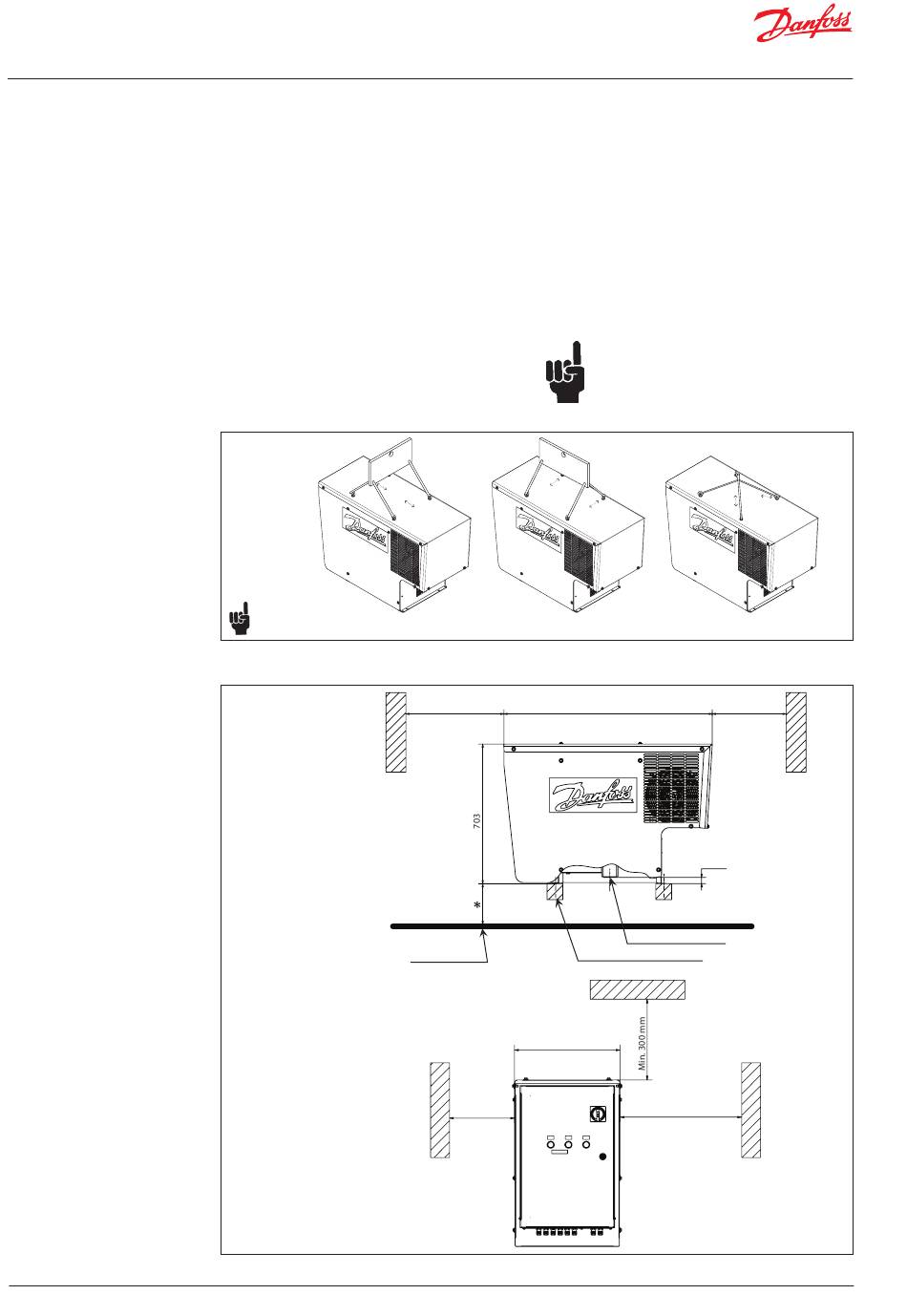

Fig. 12 Installation dimensions
Use all 4 lifting eyes and suitable lifting gear
during installation (unit weight = 100 kg/220 lbs).
Install the unit on an even horizontal base 0.05
to 1.1 meter (2 to 43 in) above a service platform
with sufficient support and allowing the purger
subframe to be bolted to the support (see
example in Fig. 12). Maintain recommended
distances in all directions (Fig. 12) to allow fan
cooling and servicing.
Always leave the unit off for at least 12 hours
from finished installation to first time power up.
.
Min. 900 mm 1051 mm
Support for 100 kg/ 220 lbs
Service platform
446 mm
Min. 300 mm
It is important that the support
construction is level to ensure the
internal liquid trap is properly filled.
Angle to horizontal < 2 degrees
Min. 500 mm
32 mm
Flange for R717 access
Min. 900 mm
