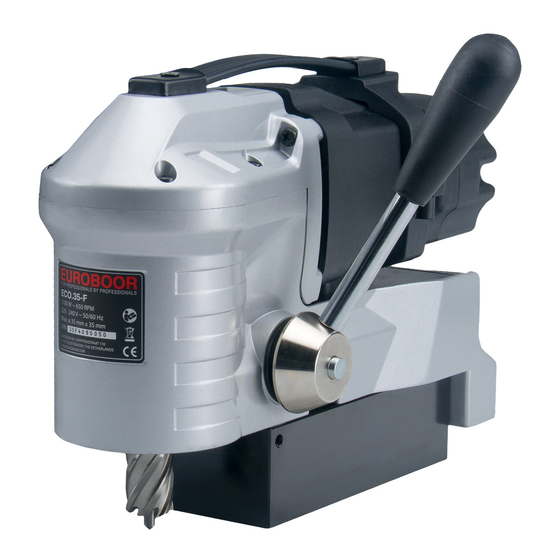

Magnetic drilling machine

Advertisement

Quick Links

EUROBOOR
FOR PROFESSIONALS BY PROFESSIONALS
USER MANUAL
ECO.35-F
Magnetic Drilling Machine
SERIAL NO.____________
DATE OF PURCHASE __________

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECO.35-F and is the answer not in the manual?

Questions and answers

Summary of Contents for Euroboor ECO.35-F

  • Page 1 EUROBOOR FOR PROFESSIONALS BY PROFESSIONALS USER MANUAL ECO.35-F Magnetic Drilling Machine SERIAL NO.____________ DATE OF PURCHASE __________...
  • Page 2 Congratulations on your purchase of the Euroboor ECO.35-F Portable Magnetic Drilling Machine. Your model is designed to produce superior holes quickly and efficiently. Through years of experience, constant innovation and development, Euroboor BV is committed to provide you with metal cutting tools and products to help you be more productive.
  • Page 3 Fig. 1 ISSUE 1/Original version/OCT 2014...
  • Page 4 Symbol Term, meaning Explanation Be absolutely sure to read the enclosed Read documentation documentation such as the Instruction Manual and the General Safety Instructions. Wear ear protection Use ear protection during operation. Wear eye protection Use eye-protection during operation. Danger/warning/caution Observe the information in the adjacent text! European conformity symbol Confirms the conformity of the power tool with...
  • Page 5: General Power Tool Safety Warnings

    GENERAL POWER TOOL SAFETY WARNINGS Do not use this power tool before you have thoroughly read and completely understood this Instruction Manual and the “General Safety Instructions”, including the figures, specifications, safety regulations and the signs indicating DANGER, WARNING and CAUTION. WARNING: When using electrical tools basic safety precautions should always be followed to reduce the risk of fire, electrical shock and personal injury including following.
  • Page 6 If damaged, have the tool serviced before using. Many accidents are caused by poorly maintained tools. 9. Use only accessories that are recommended by Euroboor BV for your model. Accessories that may be suitable for one machine, may become hazardous when used on another machine.
  • Page 7: Residual Risks

    ADDITIONAL SPECIFIC SAFETY RULES FOR MAGNETIC DRILLING MACHINES • Keep your fingers well out of the drill area; • Avoid touching the drilled core that is automatically ejected by the centering pin when the working procedure is finished. Contact with the core when it is hot, or if it falls, can cause personal injuries;...
  • Page 8 Markings on Tool The following pictograms are shown on the tool: Read instruction manual before use. Wear ear protection in areas with noise emissions > 80 db(A). Wear eye protection. POSITION Serial number The Serial Number, which also includes the type of machine, the year and month of manufacturing and identification number, is engraved on the frame, magnet and the motor unit.
  • Page 9 TECHNICAL DATA ECO.35-F ANNULAR CUTTERS ø 12 - 35 mm MAX. DEPTH OF CUT 30 mm LENGTH 285 mm WIDTH 101 mm HEIGHT 200 mm WEIGHT 10 kg MAGNETIC FORCE 1500 kg MOTOR POWER 1100 W TOTAL POWER 1150 W SPEED (no load) 650 minˉ¹...
  • Page 10: Intended Use

    Please make sure that the contacting surface for the magnet is level, clean and rust-free. Remove any varnish or primer. When working on materials that are not magnetizable, suitable fixation devices, obtainable as accessories from EUROBOOR, e. g. suction plate, vacuum plate or pipe-drilling device must be used.
  • Page 11: Assembly And Adjustments

    WARNING: Always use the Safety guard. WARNING: Do not use the lubrication system in vertical or overhead drilling applications. Instead use Euroboor cutting paste FITTING THE SAFETY CHAIN/STRAP 1. Loop the strap through the slot above the magnet and around the work piece;...
  • Page 12: Prior To Operation

    INSERTING AND REMOVING AN ACCESSORY (FIG. 1) The tool holder accepts annular cutters with a 19,05 mm Weldon shank with one or more flats. WARNING: The teeth of a cutter are very sharp and can be dangerous. 1. In order to fit an annual cutter it is necessary to remove the guard; 2.
  • Page 13 Make sure that the magnet attaches tightly to the work piece before turning on the motor unit of the magnetic drilling machine. Euroboor magnets have 2 coils; make sure that both coils are in contact with the material. Do not connect any other machines to the electrical outlet the magnetic drilling machine is plugged into, as it may result in the loss of magnetic force.
  • Page 14: Drilling A Hole

    REVERSING OR CHANGING THE POSITION OF THE CRANK LEVER The Crank Lever is quick-release and adjustable to suit different operating conditions. If it is required to mount the crank lever on the opposite side or to change its position, push the Release Button in the center of the Crank Hub and remove.
  • Page 15 DRILLING WITH ANNULAR CUTTERS Annular cutters only cut material at the periphery of the hole, rather than converting the entire hole to shavings. As a result, the energy required to make a hole is lower than for a twist drill. When drilling with an annular cutter, it is not necessary to drill a pilot hole.
  • Page 16: Maintenance

    Consult your dealer for further information on the appropriate accessories. MAINTENANCE Your EUROBOOR power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.
  • Page 17: Carbon Brushes

    CARBON BRUSHES Brushes should be checked to make sure there is no abnormal wear present. This should be checked at least once a week if used frequently. If the carbon brush has worn more than 2/3 the original length the brushes should be changed. Failure to do so may cause damage to the machine. The carbon brushes are a normal wearing part and must be replaced when they reach their wear limit.
  • Page 18 Repair, modification and inspection of Euroboor Magnetic drilling machines must be done by EUROBOOR or an EUROBOOR authorized dealer. The spare parts list will be helpful if presented with the machine to the Euroboor dealer for service when requesting repair or other maintenance.
  • Page 19: Troubleshooting

    TROUBLE SHOOTING Magnet and motor do not - The magnet switch is not connected to the power supply function - Damaged or defective wiring - Defective fuse - Defective magnet switch - Defective Control Unit - Defective power supply Magnet does function, the motor - Damaged or defective wiring does not work - Carbon brushes are stuck or worn out...
  • Page 20: Protecting The Environment

    Separate collection. This product must not be disposed of with normal household waste. Should you find one day that your EUROBOOR product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.
  • Page 21 ISSUE 1/Original version/OCT 2014...
  • Page 22 Spare part list No. Part number. Description. Qty used. 35F.0001 Internal circlip 35F.0002 Arbor washer 35F.0003 Coolant seal 35F.0004 Spring 35F.0005 Lock pin 35F.0006 Set screw M3x4 35F.0007 Lock pin spring 35F.0008 Check ball Ø8 35F.0009 Spindle 35F.0010 Ring 35F.0011 Collar pin 35F.0012 Quick-release collar...
  • Page 23 Set screw M4 x 8 104 35F.0104 Chip guard 105 35F.0105 Washer 6 x 13 x 1 106 35F.0106 Butterfly screw M6 x 10 107 35F.0107 Plunger 108 35F.0108 FAN SHROUD 109 35F.0109 EARTHING MARKING 35F.CASE Carrying case ECO.35-F ISSUE 1/Original version/OCT 2014...
  • Page 24 EXPLODED DRAWING of ECO.35-F ISSUE 1/Original version/OCT 2014...
  • Page 25: Ce/Emc Declaration Of Conformity

    Kryptonstraat 110 Zoetermeer The Netherlands that the following Appliance complies with the appropriate basic safety and health requirements of the EC Directives based on its design and type, as brought into circulation by EUROBOOR BV. Magnetic Drilling Machine Designation/ function ECO.35-F...
