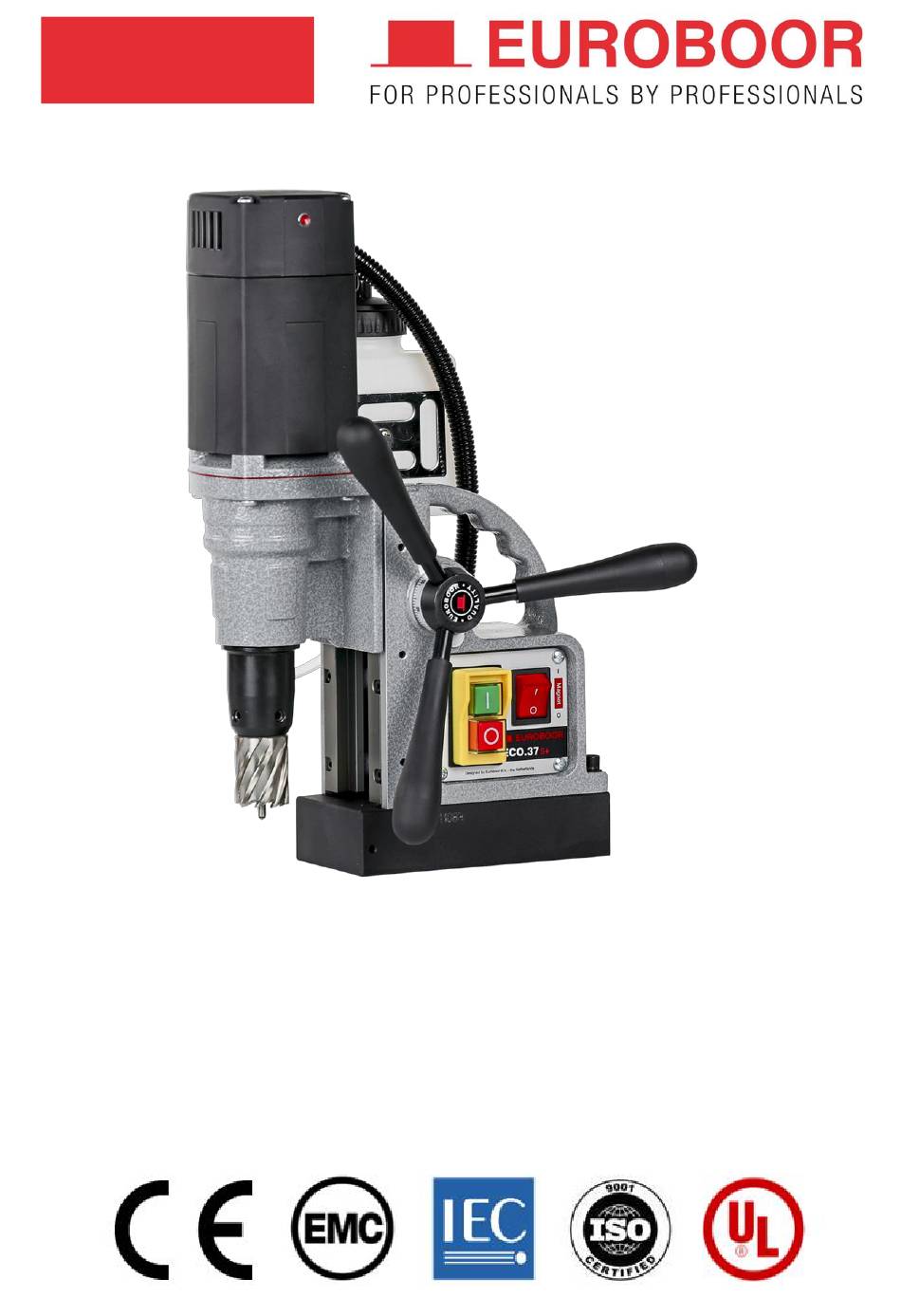

Page 1: Eco.37S

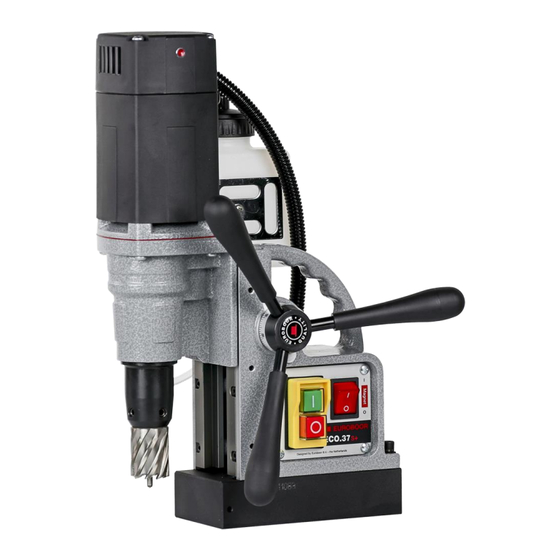

User manual V 1.5 | EN | April 2022 ECO.37 Magnetic drilling machine with 2-way electromagnet... - Page 2 Congratulations on purchasing this premium magnetic drilling machine. At EUROBOOR we strive to exceed our customers’ expectations by developing and providing premium and innovative portable drilling and cutting solutions. We believe that a professional like you must be able to rely on a professional supplier.
-
Page 3: Table Of Contents
Table of contents ECO.37S+ ............................. 1 Table of contents ......................... 3 1. Safety ............................4 1.1 General safety instructions ......................4 1.2 Specific safety information ......................6 2. Description ..........................8 2.1 Intended use ..........................8 2.2 Features ............................8 2.3 Case content .......................... -
Page 4: Safety
1. Safety 1.1 General safety instructions Do not use this magnetic drilling machine before you have thoroughly read and completely understood this manual, specifically the “General safety instructions” and ‘’Specific safety information’’ , including the figures, specifications, safety regulations and the signs indicating DANGER, WARNING and CAUTION. - Page 5 Personal safety 1. Stay alert, watch what you are doing and use common sense when using a magnetic drilling machine. Do not use the machine while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating a magnetic drilling machine may result in serious personal injury;...
-
Page 6: Specific Safety Information
• Always use the recommended speed for the accessories and material you are working with; • Do not use the machine on the same workpiece on which electric welders are working; • Only use an appropriate cutting lubricant. EUROBOOR offers a wide range of well-considered cooling and lubrication products to match your requirements;... - Page 7 Residual risk In spite of following the relevant safety regulations and their implementation, certain residual risks cannot be avoided. These are: • Impairment of hearing; • Risk of personal injury from flying particles; • Risk of burns due to accessories becoming hot during operation; •...
-
Page 8: Description
EUROBOOR. The magnetic drilling machine can be used horizontally, vertically or overhead. 2.2 Features... -
Page 9: Case Content
Additional serial no. stickers are provided with the machine for your administration. The serial number will help you, your dealer and EUROBOOR to validate and identify the machine. For example:... -
Page 10: Technical Data
2.5 Technical data Metric Imperial Annular cutting Ø 12 - 37 mm Ø 7/16 - 1 7/16 " " Twist drilling Ø 1 - 13 mm Ø 1/16 - 1/2 " " Threading Countersinking Ø 10 - 35 mm Ø 3/8 - 1 3/8 "... -
Page 11: Symbols
Dimensions (inches) 2.6 Symbols Symbol Term, meaning Explanation Be sure to read the documentation in this user Read documentation manual and specifically the “General safety instructions” and ‘’Specific safety information’’ Wear ear protection Use ear protection during operation Wear eye protection Use eye protection during operation Read and apply the information in the adjacent Danger/warning/caution... -
Page 12: Environmental
Symbol Term, meaning Explanation Able to function acceptably in its electromagnetic Electromagnetic Compatibility environment International Electrotechnical Conformity with international electrotechnical Commission safety standards Certified in accordance with ISO9001:2015 quality ISO9001 management system Certified by Underwriters Laboratories (UL), a recognized laboratory for safety testing approved by US federal agency OSHA millimetre Unit of measure for the dimensions... -
Page 13: Preparation & Adjustment
3. Preparation & adjustment 3.1 Assembly WARNING: To reduce the risk of injury, turn machine off and disconnect from power source before installing and removing accessories, before adjusting or changing set-ups or when making repairs. Be sure all switches are in the OFF position. An accidental start-up can cause injury. -
Page 14: Prior To Use
The electric motor has been designed for one voltage only. Always check that the power supply corresponds to the voltage on the rating plate. Your EUROBOOR magnetic drilling machine is designed in class I (grounded) according to EN 61029-1. Earth wire is required. -
Page 15: Using The Machine
4. Using the machine WARNING: Always observe the safety instructions and applicable regulations. WARNING: To reduce the risk of serious personal injury, turn the machine off and disconnect the machine from power source before making any adjustments or removing/installing attachments or accessories. 4.1 Control panel The control panel is designed for maximum ease of use and safety. - Page 16 [Image 4-2] The electromagnet will work best on surfaces of at least 10 mm (3/8") thickness. When the electromagnet is not able to create a good enough magnetic field, this may be caused by: Surface not being flat; Workpiece is not magnetisable (e.g. aluminium); Workpiece is coated or painted;...
-
Page 17: Switching Motor On And Off
We want to point out that above mentioned precautions and indicator do not guarantee that the magnet will not release from the material. EUROBOOR accepts no liability when it comes to the magnet not functioning or functioning poorly. Make sure that the magnet attaches tightly to the work piece before turning on the motor unit of the magnetic drilling machine. -
Page 18: Power Protection
*Disclaimer: Euroboor is not liable for any damage caused to the machine due to electrical problems in the workplace. Above mentioned protection is not guaranteed in all cases of voltage spikes and/or frequency fluctuations. -
Page 19: Carbon Brushes
WARNING: Do not use the lubrication system in vertical or overhead drilling applications. Instead use EUROBOOR cutting paste or spray. Make sure to use only suitable cutting lubricants. EUROBOOR offers a wide range of cutting lubricants for all tool and material combinations. Proper lubrication will help you create better and... -
Page 20: Working With Drilling Accessories
5. Working with drilling accessories 5.1 Annular cutters Annular cutters only cut material at the periphery of the hole, rather than converting the entire hole to shavings. As a result, the energy required to make a hole is lower than for a twist drill. When drilling with an annular cutter, it is not necessary to drill a pilot hole. -
Page 21: Twist Drills
WARNING: The metal slug can be sharp and very hot! 5.2 Twist drills Use twist drills with 19.05 mm (3/4") Weldon shank (EUROBOOR code SPI or SSPI). Align the flat faces on the cutter shank with the screws in the spindle. Make sure the shank is entered fully and correctly. -
Page 22: Maintenance
6. Maintenance Your EUROBOOR magnetic drilling machine has been designed to operate over a long period of time. Continuous satisfactory operation depends upon proper tool care and regular cleaning. CAUTION: To reduce the risk of injury, turn the machine off and disconnect machine from power source before installing and removing accessories, before adjusting or changing set- ups or when making repairs. - Page 23 Repair, modification and inspection of EUROBOOR Magnetic drilling machines must be done by EUROBOOR or an EUROBOOR authorised dealer. The spare parts list will be helpful if presented with the machine to the EUROBOOR dealer for service when requesting repair or other maintenance.
-
Page 24: Trouble Shooting
7. Trouble shooting Magnet and motor do not - The magnet switch is not connected to the power supply function - Damaged or defective wiring - Defective fuse - Defective magnet switch - Defective control unit - Defective power supply Magnet does function, the motor - Damaged or defective wiring does not work... - Page 25 Insufficient magnetic force - Damaged or defective wiring - Bottom of magnet not clean and dry - Bottom of magnet not flat - Workpiece is not bare metal - Workpiece is not clean or flat - Workpiece is less than 6 mm (too thin) - Defective control unit - Defective magnet Frame under voltage...
-
Page 26: Exploded Views & Spare Parts List
8. Exploded views & spare parts list 8.1 Exploded views... -
Page 29: Spare Parts List
8.2 Spare parts list No. Part no. Description No. Part no. Description ECO.37S+ motor unit 037E.5029 Rack 037S.1001 220V 020.0156 Bolt M6 x 20 ECO.37S+ motor unit 037S.1001A 037S.0008X Gear box 110-220V 110V 032.0216 Screw BK 5 x 40 036.0043 Torx screw M4.8 x 55 037E.5033 Seal... - Page 30 Coupling nut PG11 Pin and knob for cooling 202 KSP.P tank 020.0037 Cable clamp complete 203 IBO.0.2L Bottle 0.2LTR PRM.61 EUROBOOR gloves M 020.0017 Fuse 5 x 20 F2A PRM.62 EUROBOOR gloves L 037S.1004 Control unit PRM.63 EUROBOOR gloves XL 020.0257...
-
Page 31: Wiring Diagram
8.3 Wiring diagram... -
Page 32: Warranty And Service
Date of purchase: Service To maximise the lifetime of your EUROBOOR machine always use service and parts from an official EUROBOOR distribution channel. Whenever in need of such, always contact original point of sales or if no longer existent the distributor of EUROBOOR products in your country. -
Page 33: Declaration Of Conformity
8.5 Declaration of conformity CE DECLARATION OF CONFORMITY EUROBOOR BV Kryptonstraat 110 2718 TD Zoetermeer The Netherlands declares that the following appliance complies with the appropriate basic safety and health requirements of the EC guidelines based on its design and type, as brought into circulation by EUROBOOR BV.
