Please read the instructions completely before beginning the installation.
Flush both supply lines before installation, then shut off both supply lines.
Minimum hole size for the spout and handle trim is 1-1/4" and maximum of 1-1/2"

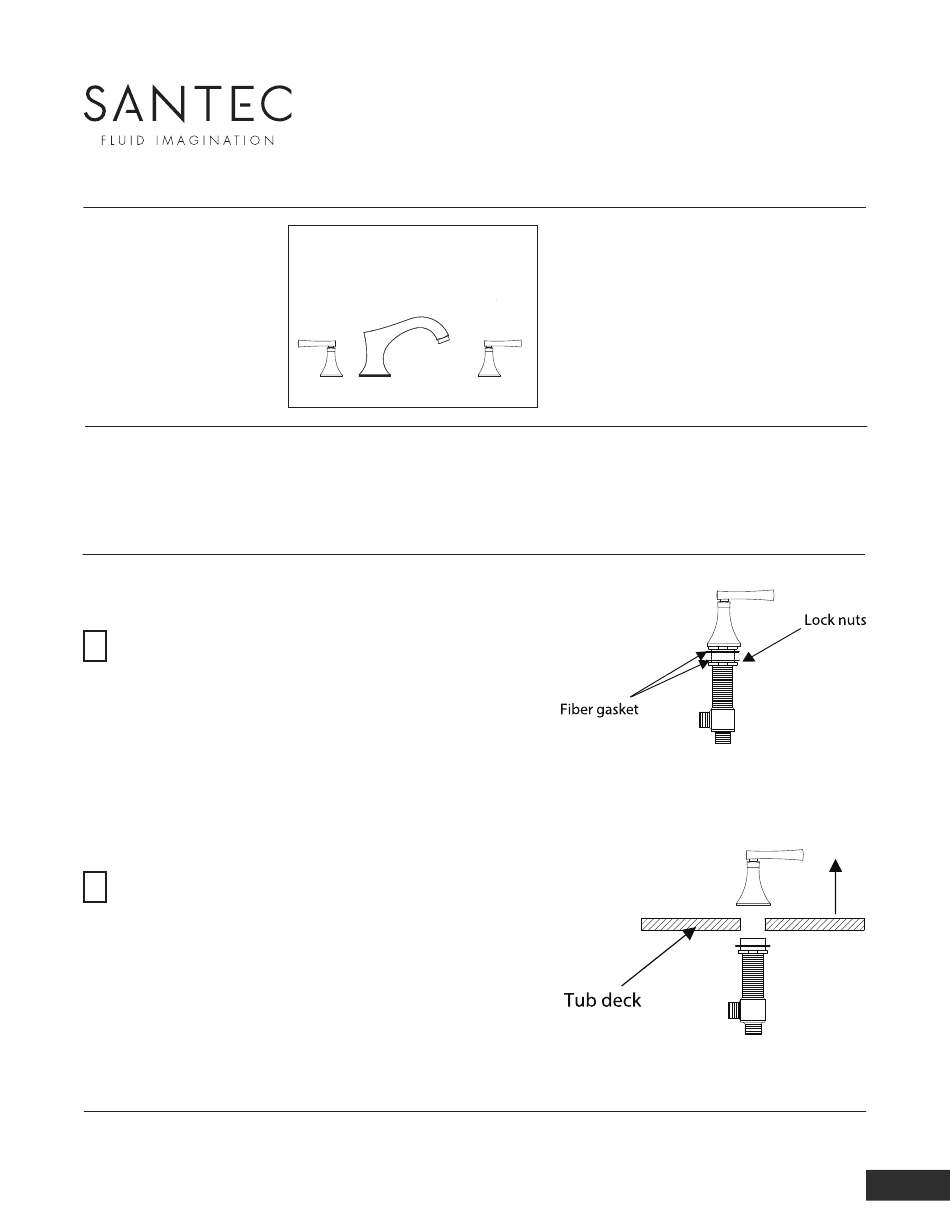

HANDLE TRIM INSTALLATION
-Unscrew pre-assembled handle trim from the valve
1
body. Hot valve assembly "Red" to be mounted on
left. Cold valve assembly "Blue" to be mounted on right.
- Remove the top lock nut and the fiber gasket from
2
the valve body.
- Apply a ring of silicone caulking around the handle hole
on deck top.
The measurements shown are for reference only. Products and specifications shown are subject to change without notice.
Edo Zen Collection Model
Number: 9250ED-TM
www.santecfaucet.com | P: 310.542.0063 F: 310.542.5681
Rev 01/2019
Installation Instruction
EDO COLLECTIONS
Roman Tub Filler
1/4
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Santec EDO 9250ED-TM
Summary of Contents for Santec EDO 9250ED-TM
- Page 1 Rev 01/2019 Installation Instruction EDO COLLECTIONS Roman Tub Filler Please read the instructions completely before beginning the installation. Edo Zen Collection Model Number: 9250ED-TM Flush both supply lines before installation, then shut off both supply lines. Minimum hole size for the spout and handle trim is 1-1/4” and maximum of 1-1/2” HANDLE TRIM INSTALLATION -Unscrew pre-assembled handle trim from the valve body.
- Page 2 -Slip valve body up from below tub deck. Place the top lock nut and the fiber gasket back onto the valve body until the top surface of the lock nut is flush with the top surface of the valve body. - Secure the top lock nut in place before inserting the handle.
