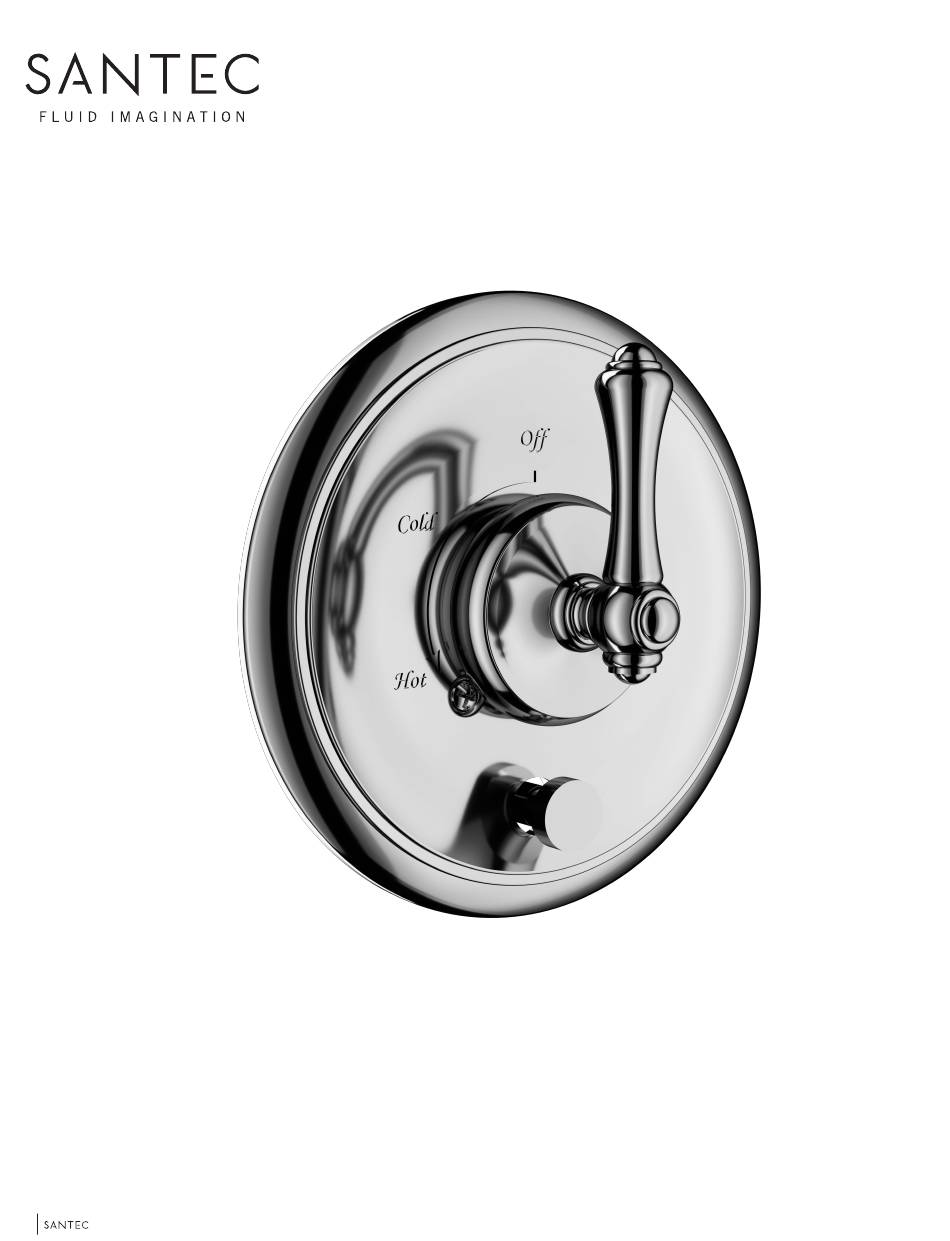

- Page 1 E -SERIES: C HA DW ICK COLL ECT I ON P RE S S URE BA LA NCED WIT H D IVE RT ER/ TR IM ONL Y W IT H “G L” H ANDLES MODE L : 4 3 3 5 GL 1 0 4 33 5 GL75 KEEP TH IS I NSTRUCTI ON BO OKL ET FOR FUTURE REFER ENC E...
- Page 2 S p e c i c a t i o n s D es cription This product is precision engineered to provide satisfactory performance provided it is installed and operated in accordance with our recommendations contained in this manual. In order to fully enjoy the comfort, safety and the reliability of your pressure balancing valve, be certain to familiarize yourself with the contents of this manual.
- Page 3 T r i m TRIM PLATE & PLATE COVER Finished wall Trim plate Fit sleeve onto valve until it bottoms out. Place foam strip around the inner edge of the shower plate. Sleeve Press the shower plate against the wall. Screw the 2 plate screws through the plate holes and onto the valve’s screw holes.
