Santec E Series Installation Instructions

7
1 "
16
3
2 "
4
K EE P T H I S I N S T R U C T I O N B OO KL E T F OR FU T U R E R EF E R EN CE
Important : Please register your product online at www.santecfaucet.com within
30 days of purchase. Santec reserves the right to request additional documents
b e f o re s e rv ic i n g w a rr an t y req u es t s .
0 1
E -SER I ES SERI E S
SQ U ARE CO LL ECT I O NS

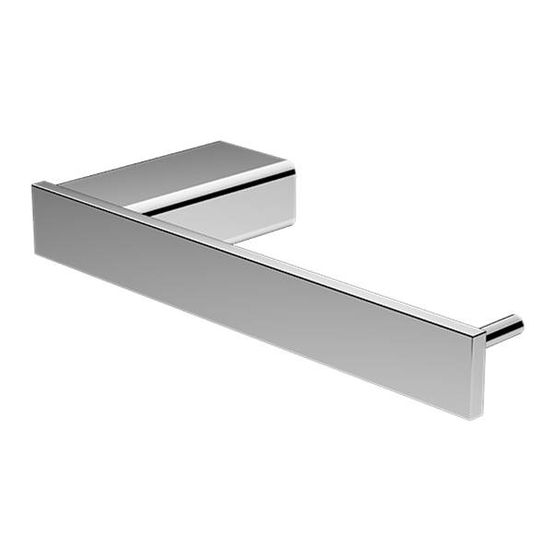

PA PER HO L DER
MO D EL: 24 65 SQ 1 0
24 65 SQ 7 5
7
"
8
15
4 "
16
1
6 "
2
In stal lati on In stru cti on s
1. Place the post against the assigned wall location. Make sure that the holder is leveled. Mark the holder
post position.
holder post
2. Using the Allen key provided, remove the holder post from the mounting post. Press the mounting post
against marked post position on the wall and mark the screw hole positions.
NOTE: MAKE SURE THE ALLEN SCREW HOLE ON THE MOUNTING POST IS FACING DOWN
WHEN SECURING TO WALL.

INSTALLING ON WOODEN SURFACE

For wooden surface, the mounting post can be
secured by screwing the screws directly into the wall.

INSTALLING ONTO DRYWALL SURFACE

Using a drill, pre-drill holes for the anchors. Insert the
anchors into the wall. The mounting post can be
secured by screwing the screws into the anchors.

INSTALLING ONTO A SOLID SURFACE

Measure the dimensions carefully. Using a drill,
pre-drill the holes. Secure the mounting post by
screwing the screws into the wall.
WALL
holder post mark
mounting post
0 2
