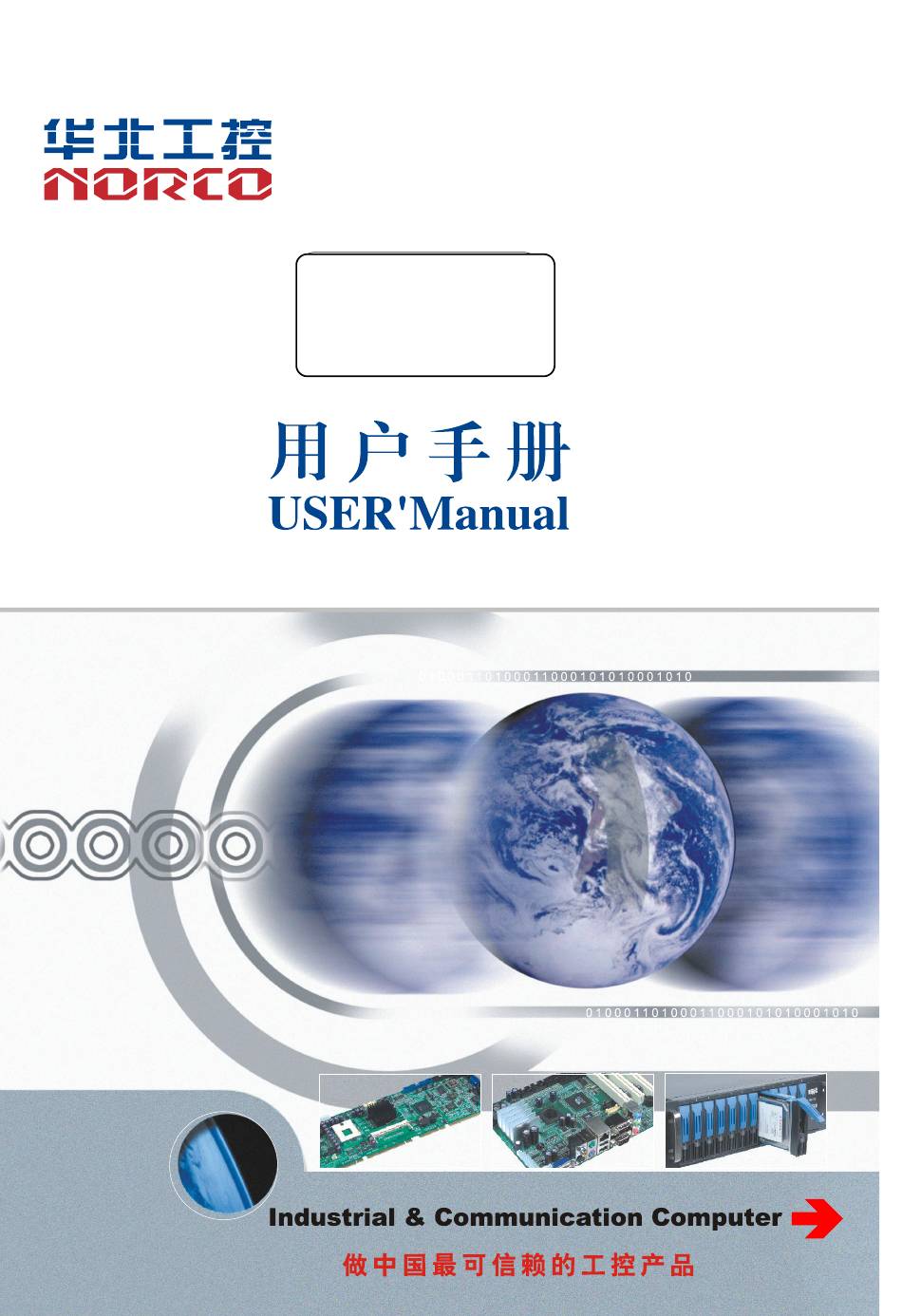

  • Page 1 BIS-6680H...
  • Page 2 BIS-6680H SZ HQ: 0755-27331166 Beijing Office: 010-82671166 Shanghai Office: 021-61212081 Chengdu Office: 028-85259319 Shenyang Office: 024-23960846 Xi’an Office: 029-88338386 Nanjing Office: 025-58015489 Wuhan Office: 027-87858983 Tianjin Office: 022-23727100 Singapore: 65-68530809 For more information, please visit：www.norco.com.cn...
  • Page 3 Before ordering products, please learn about the product performance from the distributors to see if it is in line with your needs. NORCO is a registered trademark of Shenzhen NORCO Intelligent Technology CO., LTD. The ownership of other trademarks involved in this manual is owned by its...
  • Page 4 Safety Instructions 1. Please read the product manual carefully before using this product. 2．Put all the unused or uninstalled boards or electronic components in a static dissipative surface or static shielding bag. 3．Always ground yourself to remove any static discharge before touching the board, to place your hands on grounding metal object for a while or wear a anti-static wrist strap at all times.

  • Page 5: Table Of Contents

    Content Chapter One Product Introduction ....................1 1.1 Product Introduction........................1 1.2 Hardware Specificattion......................1 Chapter Two Installation Specification .................... 3 Safe Instructions..........................3 2.1 Front View Side Map of Mainframe..................5 2.2 Front View Right Side Map of Mainframe................5 2.3 Rear View Side Map of Mainframe..................5 Chapter Three Hardware Function ....................
  • Page 6 3.6.2 Under the system, you can see that the motherboard has identified the 4G module, and then installed the 4G module driver............25 3.6.3 After the driver is installed, as shown below, there is a modem in the device manager........................25 3.6.4 In the lower right corner of the system, right-click the wireless network icon and click “Open Network and Sharing Center”............26 3.6.5 In the Network and Sharing Center interface, click "Connect to the...
  • Page 7 4.3.5 PCH-IO Configuration....................57 4.3.6 SATA And RST Configuration..................58 4.4 Security Menu..........................59 4.5 Boot Menu..........................60 4.6 Save&Exit Menu........................61 Appendix ..............................46 Appendix 1：Watchdog Programming Guide................46 Appendix 2：Glossary........................47 Appendix 3：Driver Installation....................49...
  • Page 8 Packing List Thanks for purchasing NORCO products. Please check the accessories as per the packing list when you open the package. If you find any components/parts defected, damaged or lost, please contact your vendor ASAP. ■BIS-6680H 1pcs ■Original Power Line 1pcs ■Drive CD...
  • Page 9 Chapter Product Introdu ction...

  • Page 10: Chapter One Product Introduction

    BIS-6680H User's Manual Chapter One Product Introduction 1.1 Product Introduction BIS-6680H adopts INTEL H110 chipset，support the 6 generation INTEL Core I3/I5/I7 processor. On board 4GB/8GB DDR4 memory chip+1xDDR4 DIMM slot，memory slot up to 16 GB，the whole motherboard up to 24GB；Support VGA+DP display port，support DVI port via expansion board，and independent dual display；Support 2xSATAIII，2x LAN，4xUSB3.0，...
  • Page 11 BIS-6680H User's Manual Power Power Single-Supply 12V 、5A input Supply Voltage Voltage Wide voltage 9~36V input Installation Desktop or wall-mounted Operating -20℃～60℃ Temperature Reliability Storage -40℃～85℃ Temperature Humidity 5%～95% RH, non-condensing Vibration 0.5g rms/5~500Hz/random operating...
  • Page 12 Chapter Install ation Specifi cation...

  • Page 13: Chapter Two Installation Specification

    BIS-6680H User's Manual Chapter Two Installation Specification Safety Instructions Current can be used to achieve many useful functions, but it can also cause personal injury and property loss due to improper use. In the design and manufacture of this product, "safety" is considered as the first condition.
  • Page 14 BIS-6680H User's Manual Electrical safety ·If the power supply is damaged, please do not repair it by yourself. You need to find a professional to deal with it or contact your distributor. ·When you connect or unplug any device, make sure that the power cord of all devices is unplugged beforehand before the signal cable is connected.

  • Page 15: Front View Side Map Of Mainframe

    BIS-6680H User's Manual ·Avoid causing damage to the system or equipment. Do not place the equipment on unsafe surfaces or let the equipment or system fall or overturn due to strong impact or shock. ·Do not use equipment or system near heat dissipation equipment or in high temperature environment, which may cause system overheating and fire.
  • Page 16 Chapter Three Hardware Function...

  • Page 17: Chapter Three Hardware Function

    BPC-7971 User's Manual Chapter Three Hardware Function 3.1 External Interface Indicator Diagram 1：BIS6680H Rear view RST PWR 12VOUT + - + - 1xDVI 2xCOM LED indicator lamp 2xUSB Power Port KB/MS 8xCOM Audio Port 1xVGA 4xUSB 2xLAN 1xDP...
  • Page 18 BPC-7971 User's Manual 2：BIS-6680H ANT and GND 3：BIS-6680H Audio port and LED indicator lamp Audio port LED indicator lamp 4：BIS-6680H COM 2xCOM 8xCOM 5：BIS-6680H USB...
  • Page 19 BPC-7971 User's Manual 2xUSB 4xUSB 6：BIS-6680H LAN and DVI 1xDVI 2xLAN 7：BIS-6680H VGA and DP 1xVGA 1xDP...

  • Page 20: Interface Location And Dimensional Drawing

    BPC-7971 User's Manual 8：BIS-6680H Power port and RST PWR 12VOUT RST PWR 12VOUT + - + - Power port 9：BIS-6680H Audio port and KB/MS Audio port KB/MS 3.1 Interface Position and Size Diagram Following is the front interface location and dimensional drawing of BPC-7971. Please be careful during the installation.

  • Page 21: Installation Steps

    BPC-7971 User's Manual 3.2 Installation Please refer to following steps to assemble your computer： 1．Adjust all jumpers on board BPC-7971 according to the user manual. 2．Install CPU. 3．Install memory. 4．Install other expansion card. 5．Connect all signal line, cable, ,panel control circuit, and power supplier. 6．Start the computer and complete the BIOS program settings.

  • Page 22: Memory Installation

    BPC-7971 User's Manual always keep the following precautions in mind: 1．Hold the board by edges and don’t touch any components, plugs or socket pins. 2． Wear anti-static gloves/wrist strap while touching the integrated circuit components （such as CPU、RAM,etc.） 3．Put those unused or uninstalled components in static shielding bags or trays. 4．Please first check the power switch is off before connecting the power plug.
  • Page 23 BPC-7971 User's Manual elimination of previous system settings and make the system back to the original settings (factory default). Steps： （1）Shut off the computer and disconnect power supply； （2）Make the jumper JCC Pin1 and Pin2 short for 5~10 seconds（Pin1-2）and then make it back to default setting with Pin2-3 connected;...

  • Page 24: Auto Boot Upon Restore Ac Power（Jat

    BPC-7971 User's Manual 3.4.2 Auto Boot upon Restore AC Power（JAT） JAT： Setting Open Non auto boot Close Auto boot 3.5 Interfaces Description Please read the following instructions carefully before you connecting the external connectors in case of any damage caused to the motherboard! 3.5.1 SATA Port（SATA1、SATA2、JSATAPWR）...
  • Page 25 BPC-7971 User's Manual JSATAPWR SATA1： Signal Name SATA_TXP SATA_TXN SATA_RXN SATA_RXP SATA2： Signal Name SATA_TXP1 SATA_TXN1...

  • Page 26: Usb、Lan Port（Usb 12、Usb1-4、Lanx2

    BPC-7971 User's Manual SATA_RXN1 SATA_RXP1 Signal Name Signal Name VCC3 VCC3 VCC3 +12V +12V +12V JSATAPWR： Signal Name +3.3V +12V 3.5.2 USB、LAN Port（USB 12、USB1-4、LANx2） Provide 8xUSB port，1x double-deck standard USB3.0 port；2x double-deck standard USB2.0 port；USB56 is the pin port of 2x5Pin 2.00mm.

  • Page 27: Audio Port（Speaker、 Mic

    BPC-7971 User's Manual USB12 LANx2 USB1-4 USB12： Signal Name Signal Name VCC_USB3 VCC_USB3 USBD_N9 USBD_P9 LAN LED Status： LILED（Green） Function ACTLED（Yellow） Function 100/1000M link Flash Data transfer 10M link/close No data 3.5.3 Audio Port（SPEAKER、 MIC） Adopt ALC662 audio control chip，the green one is audio output port（Line-out） ，and...

  • Page 28: Display Port（Vga、Dp

    BPC-7971 User's Manual the pink one is microphone input port（MIC-in）. SPEAKER 3.5.4 Display Port（VGA、DP） 1 x standard DB15 VGA port， 1 x standard DP port. Support VGA+DP display port， it can support DVI port via expansion port，and support independent dual display.
  • Page 29 BPC-7971 User's Manual VGA: Signal Name Signal Name Signal Name VGA_R VGA_G VGA_SDA_R VGA_B MON_HSYNC VGA1_POWE MON_VSYNC VGA_PIN10 VGA_SCL_R DP： Signal Name Signal Name DP0P DP0N DP1P DP1N DP2P DP2N DP3P DP3N...

  • Page 30: Power Port（Pwr2

    BPC-7971 User's Manual DPC3_AUX_DP DPC3_AUX_DN DDIP_HPD3_DM VCC3 3.5.5 Power Interface（PWR2） PWR2 PWR2： Setting Signal Name +VIN...

  • Page 31: Programmable Input And Output Port（Jgp

    BPC-7971 User's Manual 3.5.6 Programmable Input and Output Port（JGP） JGP： Signal Name Signal Name GP50 GP51 GP54 GP52 GP55 GP53 GP56 GP57 3.5.7 SIM Port Provide 1xSIM port.

  • Page 32: Jlpc Port

    BPC-7971 User's Manual 3.5.8 JLPC Port Provide 1xJLPC port（this interface connects the serial expansion card）...
  • Page 33 BPC-7971 User's Manual JLPC JLPC: Signal Name Signal Name LPC _CLK L_FRA E_N CLK_LPC_48M PLTRST_N L_AD3 L_AD2 VCC3 L_AD1 L_AD0 SMB_CLK SMB_DATA 3VDUAL SER_IRQ LPCPD_N USB_N7 USB_N8 USB_P7 USB_P8 SATA_TXN2 MS_CLK...

  • Page 34: Jcomusbddi Port

    BPC-7971 User's Manual SATA_TXP2 MS_DATA SATA_RXN2 KB_CLK SATA_RXP2 KB_DATA VCC3 5VDUAL VCC3 5VDUAL VCC3 +12V 3.5.9 JCOMUSBDDI Port Provide 1x JCOMUSBDDI port（this interface connects the display expansion card）. JCOMUSBDDI JCOMUSBDDI：...

  • Page 35: Front Panel Interface（Jfp

    BPC-7971 User's Manual Signal Name Signal Name DCD#1 DSR#1 SIN1 RTS#1 SOUT1 CTS#1 DTR#1 RI#1 DCD#2 DSR#2 SIN2 RTS#2 SOUT2 CTS#2 DTR#2 RI#2 USB_N5 USB_N6 USB_P5 USB_P6 DDI1_TXN0 DDI1_TXN2 DDI1_TXP0 DDI1_TXP2 DDI1_TXN1 DDI1_TXN3 DDI1_TXP1 DDI1_TXP3 DDI1_AUX_DN DDPB_CLK DDI1_AUX_DP DDPB_DATA PLTRST_N_BUF DDSP_1_HPD0_R SATALED RSTBTN-...
  • Page 36 BPC-7971 User's Manual JFP： Signal Name Signal Name VCC3 SATALED SPK- RSTBTN+ POWERSW Please follow the table below to connect, pay attention to anode(+)and cathode(-), otherwise , some function cannot be realized. PWR-LED HDD-LED BUZZ RESET BUTTON POWER BUTTON 1）System power LED pins（Pin 1、2 PWRLED）...

  • Page 37: Memory Slot

    BPC-7971 User's Manual Connect system power LED cable with these pins. （ pin 1 is LED anode） When system is power on, power LED is on；when system is power off, power LED is off. 2）HDD Status LED Pins（Pin 3、4 HDD LED） There is one HDD LED on panel.

  • Page 38: Under The System, You Can See That The Motherboard Has Identified The

    BPC-7971 User's Manual 3.6.2 Under the system, you can see that the motherboard has identified the 4G module, and then installed the 4G module driver. 3.6.3 After the driver is installed, as shown below, there is a modem in the device manager.

  • Page 39: In The Lower Right Corner Of The System, Right-Click The Wireless Network

    BPC-7971 User's Manual 3.6.4 In the lower right corner of the system, right-click the wireless network icon and click “Open Network and Sharing Center”. 3.6.5 In the Network and Sharing Center interface, click "Connect to the Network", as shown below.

  • Page 40: Select The Signal Source And Click On The Connection

    BPC-7971 User's Manual 3.6.6 Select the signal source and click on the connection. 3.6.7 Click Continue, Wait a minute（There is no need to fill in the access point name, user name, password here.)

  • Page 41: Installed Successfully

    BPC-7971 User's Manual 3.6.8 Installed Successfully.
  • Page 42 Chapter Four BIOS Setup...

  • Page 43: Chapter Four Bios Setup

    BPC-7971 User's Manual Chapter Four BIOS Setup AMI BIOS Refresh BIOS functions as a bridge connecting hardware and operating system. Hardware and software are upgrading all the time, so when your system goes wrong, for example, your system cannot support the newest CPU, you need to upgrade BIOS to keep up with the latest technology.

  • Page 44: Main Menu

    BPC-7971 User's Manual menu”, please press <Del> > to enter BIOS SETUP program. 3、Use the “←↑→↓”to choose the option which you want to modify, press <Enter> to go to the sub-menu. 4、 Use the “←↑→↓” and <Enter> to modify the value; press” Enter” to modify BIOS options that you choose.
  • Page 45 BPC-7971 User's Manual BIOS Vendor ：BIOS Vendor，American Megatrends Build Date and Time ：BIOS Date and Time，04/18/2018 11:23:50 ME FW Version ：ME FW Version ME Firmware SKU ：ME FW SKU Information System Language Setting up system language System Date System date format, Month/Date/Year. Month (Jan.-Dec.) ， Date (01-31) ， Year (maximum 2099)，Week (Mon.～Sun.).

  • Page 46: Advanced

    BPC-7971 User's Manual 4.2 Advanced Launch LAN1/2 PXE OpROM This item is used to set whether the onboard network card PXE is allowed to start. The setting value is : [Enabled] [Disabled]. CPU Configuration CPU parameter information and common settings options. Power &...

  • Page 47: Cpu Configuration

    BPC-7971 User's Manual Hardware Monitor System Monitor, Hardware Monitor, Hardware Monitor S5 RTC Wake Settings System shutdown wake-up settings Serial Port Console Redirection Serial port redirection settings CSM Configuration Compatibility support module control options. USB Configuration USB Information and control options. 4.2.1 CPU Configuration Read-only items contain CPU details, including CPU manufacturers, models, frequencies, L1 Cache size, L2 cache size and other information.
  • Page 48 BPC-7971 User's Manual Hardware prefetcher Hardware Prefetcher : Before CPU processes instructions or data, it prefetches these instructions or data from memory into L2 cache to reduce memory reading time and help eliminate potential bottlenecks, so as to improve system efficiency. This option is Enabled / Disabled hardware prefetch, and the default is Enabled.

  • Page 49: Power & Performance

    BPC-7971 User's Manual 4.2.2 Power & Performance...
  • Page 50 BPC-7971 User's Manual...
  • Page 51 BPC-7971 User's Manual Note：Power settings...

  • Page 52: Pch-Fw Configuration

    BPC-7971 User's Manual 4.2.3 PCH-FW Configuration...

  • Page 53: Acpi Settings

    BPC-7971 User's Manual 4.2.4 ACPI Settings Enable ACPI Auto Configuration Automatically configure APCI that allow (Enabled) or close (Disabled) BIOS. The default is Enabled. Enable Hibernation Enabled or Disabled system sleep function (OS/S4 sleep state). This option does not work under some OS.

  • Page 54: F81866 Supper Io Configuration

    BPC-7971 User's Manual 4.2.5 F81866 Supper IO Configuration Serial Port 1 Configuration Serial Port 2 Configuration...
  • Page 55 BPC-7971 User's Manual...
  • Page 56 BPC-7971 User's Manual Serial Port [Enabled] or [Disabled] the serial port Device Setting（ （Read only） Display the serial port IRQ and I/O address. Change Setting Change serial port I/O address or IRQ settings，Default [Auto].
  • Page 57 BPC-7971 User's Manual...
  • Page 58 BPC-7971 User's Manual Serial Port 1 Configuration 1）Serial Port [Enabled] or [Disabled] the serial port. 2）Device Setting（Read only） Display the serial port IRQ and I/O address. 3）Change Setting This item is used to change the serial port settings. It is recommended that Auto be selected by default.

  • Page 59: Hardware Monitor

    BPC-7971 User's Manual 4.2.6 Hardware Monitor Hardware Security Detection Object PC Health Status Hardware Security Detection，BIOS will display the current system temperature，CPU temperature，Fan speed，and other related voltage values. The above parameters have a certain range, the system cannot run beyond these ranges. System temperature ：System temperature CPU temperature ：CPU temperature...

  • Page 60: S5 Rtc Wake Settings

    BPC-7971 User's Manual 4.2.7 S5 RTC Wake Settings Wake system from S5 This item is used to set whether to start at a fixed time, the default value is [Disabled]; setting [Fixed Time], it will start at a specified time; setting [Dynamic Time], it will start after a specified time at the current time.

  • Page 61: Serial Port Console Redirection

    BPC-7971 User's Manual 4.2.8 Serial Port Console Redirection...
  • Page 62 BPC-7971 User's Manual Console Reditection： The motherboard supports serial port 1,2 console redirection，default Disable. To turn on redirection function, only need to turn on COM1 or COM2 redirection, and don't need to turn on EMS redirection.

  • Page 63: Csm Configuration

    BPC-7971 User's Manual 4.2.9 CSM Configuration CSM Support CSM---Compatibity Support Module. It is a special module of UEFI, which provides compatibility support for systems that do not support UEFI. GateA20 Active Activate A20 Option ROM Messages Setting OpROM Display Mode INT19 Trap Response OpROM trigger Int19 trigger timing，...

  • Page 64: Usb Configuration

    BPC-7971 User's Manual Storage Which type of storage is supported OpROM，such as Efi OpROM or Legacy OpROM，or both. Video Which type of display is supported OpROM，such as Efi OpROM or Legacy OpROM，or both. Other PCI devices This represents the OpROM execution policy for other PCI devices. 4.2.10 USB Configuration Legacy USB Support This item is used for the setup of old version USB.，if you need to support USB devices...

  • Page 65: Chipset Menu

    BPC-7971 User's Manual Port 60/64 Emulation This control USB port 64/60 Emulation function. When this function is enabled, the USB keyboard can make some special key combinations. The setting value is：Disabled, Enabled. USB Transfer time-out Timeout of setup control, batch, and interrupt transfer. The default is 20 seconds. Device reset time-out Set the boot command timeout time for a large USB disk.

  • Page 66: System Agent (Sa) Configuration

    BPC-7971 User's Manual PCH-IO Configuration South Bridge Configuration. Including sound card, network card, switch for system auto boot upon power on and other options. 4.3.1 System Agent (SA) Configuration VT-d Intel I/O virtual technology needs to be supported by chipset, and some of the chipsets support it while some not.

  • Page 67: Graphics Configuration

    BPC-7971 User's Manual 4.3.2 Graphics Configuration LCD Control LCD screen control setting.

  • Page 68: Lcd Control

    BPC-7971 User's Manual 4.3.3 LCD Control Primary IGFX Boot Display Main display setting.

  • Page 69: Usb Configuration

    BPC-7971 User's Manual 4.3.4 USB Configuration XHCI Disable Compliance Mode...

  • Page 70: Pch-Io Configuration

    BPC-7971 User's Manual 4.3.5 PCH-IO Configuration USB configuration USB Setting Restore AC Power Loss This option is to setup the system status while connecting the power again after the AC Power Loss. <Power Off>: System remains the status of power off. Users need to press the power button to start the computer.

  • Page 71: Sata And Rst Configuration

    BPC-7971 User's Manual 4.3.6 SATA and RST Configuration Serial-ATA Controller(S) To set the SATA controller to be enabled or disabled. The setting values are: [Disabled]， [Enhanced]，[Compatible]. SATA Mode selection To set the SATA configuration mode.，The setting values are: [AHCI]，[RAID] SATA Test Mode This is SATA test mode，the setting value is [Disabled].

  • Page 72: Security Menu

    BPC-7971 User's Manual 4.4 Security Menu The password length: Min: 1 character, Maximum: 20 characters. Administrator Password To setup administrator password User Password To setup User’s Password.

  • Page 73: Boot Menu

    BPC-7971 User's Manual 4.5 Boot Menu Setup Prompt Timeout The timeout period to press Setup button. If Setup button is not pressed in setting time, then the computer should continue to turn on. Bootup Numlock State The function allows the numeric key lock function after system power on DOS. The default setting is On and the system will unlock the numeric key, and if Off is set, then the keypad will be controlled by cursor.

  • Page 74: Save&Exit Menu

    BPC-7971 User's Manual This option includes hard disk which can be used as startup device. If there are many hard disks, then you should place the hard disks in order. The hard disk in priority will be displayed on Boot Option #1. 4.6 Save&Exit Menu Save Changes and Exit Save the BIOS settings and exit the settings interface to restart the computer.
  • Page 75 BPC-7971 User's Manual Discard Changes Do not save the currently changed settings. Restore Defaults Load optimization settings. If this option is selected, the system will be set according to the factory optimization values. Save as User Defaults Saved as the user's default value Restore User Defaults Restore user defaults.

  • Page 76: Appendix

    Appendix...

  • Page 77: Appendix 1：Watchdog Programming Guide

    BPC-7971 User's Manual Appendix Appendix 1：Watchdog Programming Guide watchdog reference code（C） ----------------------------------------------------------------------------------------------------------------------------- Set the port to realize watchdog function. In C programming language, different functions of Watchdog Timer can be realized by operating ports by writing data to corresponding ports. Port specification：...

  • Page 78: Appendix 2：Glossary

    BPC-7971 User's Manual If system halted, the watchdog enables the system to reboot automatically. Appendix 2：Glossary ACPI Advanced Configuration and Power Management. ACPI specifications allow operating system to control most power of the computer and its add-on. Windows 98/98SE，Windows 2000 and Windows ME supports this specification. BIOS Basic input/output system.
  • Page 79 BPC-7971 User's Manual Dynamic Random Access Memory. It’s a general type of memory for regular computer which usually store 1 bit with a transistor and a capacitance. With the development of the technology, more and more types of DRAM with different specifications exist in computer applications.

  • Page 80: Appendix 3：Driver Installation

    Please install the driver in the following way： 1. When the driver CD-ROM of the motherboard is put into the CD-ROM, the dialog box “NORCO Drivers Installer”will pop up automatically; 2. Find the corresponding motherboard name and click to enter the driver list interface;...
