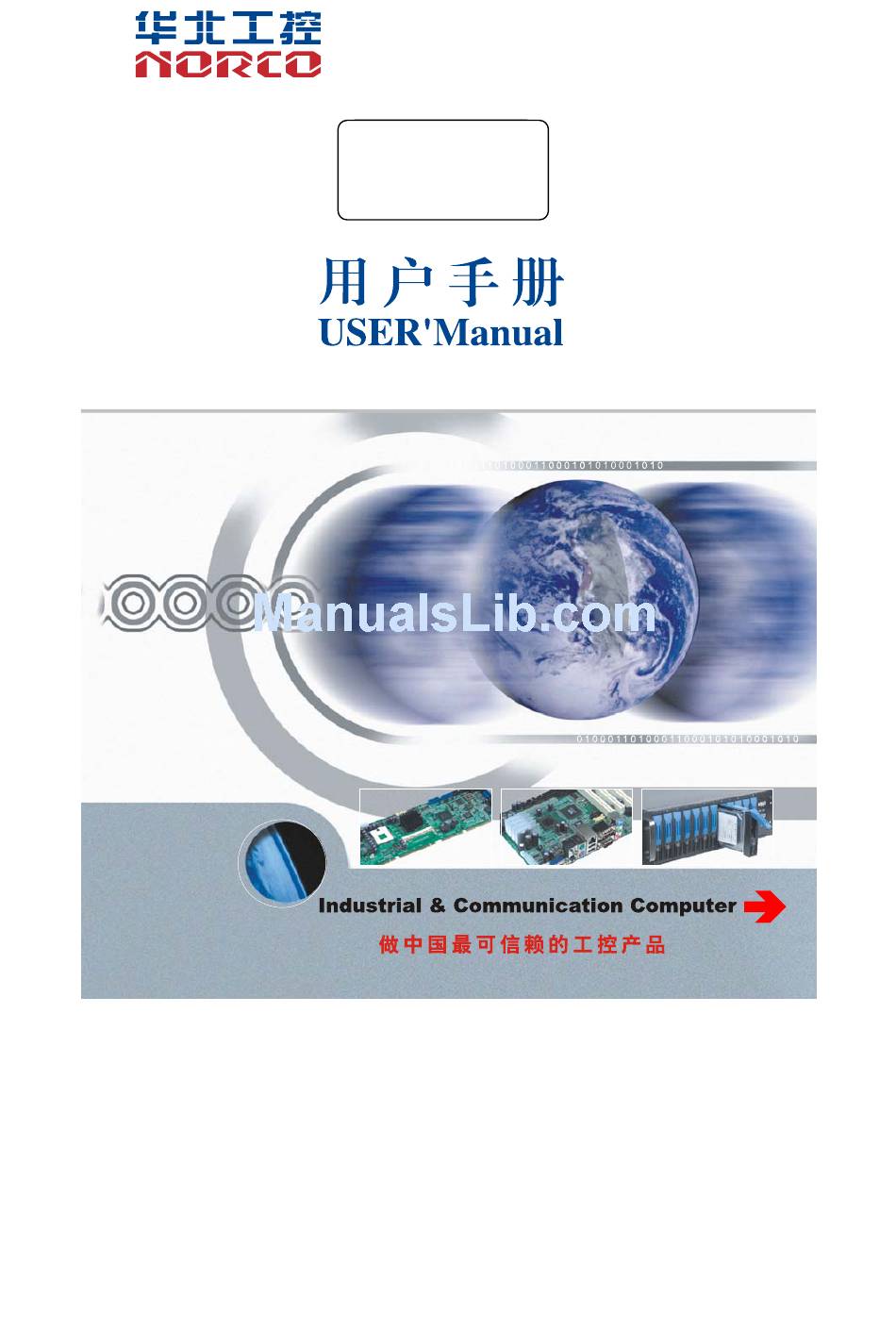

- Page 1 BIS-6622 Mini PC USER' Manual V1.0...
- Page 2 Before ordering products, please learn about the product performance from the distributors to see if it is in line with your needs. NORCO is a registered trademark of Shenzhen NORCO Intelligent Technology CO.,LTD.The ownership of other trademarks involved in this manual is owned by its respective owners.
-
Page 3: Safety Instructions
Safety Instructions 1. Before using this product, please read this user’s manual carefully; 2. Before moving the host, please make sure to unplug the AC power cords out of the sockets; Before you connect or unplug any equipment, please make sure that all power cords are unplugged in advance;... -
Page 4: Table Of Contents
Content Chapter 1. Product Introduction ....................1 1.1 Overview ..................错误！未定义书签。 1.2 Features ........................1 1.3 Specification ........................1 1.4 Product Dimension Diagram ..................3 Chapter 2. Hardware Features ....................4 2.1 External Interface Index Map ..................4 2.2Jumper Setting ....................... 5 2.2.1 LVDS Voltage Jumper Setting（J2）... - Page 5 4.2.1 ACPI Configuration ................... 14 4.2.2 CPU Configuration .................... 15 4.2.3 Wake On Lan Configuration ................16 4.2.4 USB Configuration .................... 17 4.3 Chipset Menu ......................18 4.3.1 North Bridge ...................... 19 4.3.2 South Bridge ..................... 20 4.4 Boot Menu ........................21 4.5 Security Menu ......................
-
Page 6: Chapter 1. Product Introduction
Chapter 1. Product Introduction... -
Page 7: Overview
BIS-6622 Mini PC Based on Intel Atom E6XX Processor Chapter 1 Product Introduction 1.1 Overview BIS-6622II is a type of embedded barebone system developed around Intel® Atom™ E6xx 0.6G, 1G, 1.3G, 1.6GHz processor. This platform is featured by its ultra low power consumption and excellent 2D/3D image display performance, supporting hardware decode of MPEG4, H.263, H.264 and hardware acceleration of MPEG2, MPEG4, VC1, WMV9, H.264. - Page 8 BIS-6622 Mini PC Based on Intel Atom E6XX Processor Mainboard BPC-7672+AFC-442V BPC-7672+AFC-450H Chipset Intel Atom E6XX+EG20T Intel Atom E6XX(0.6G,1G,1.3GHz). Power consumption around Processor 2.7W,3.3W,3.3W,3.9W Memory Onboard 1G Display 1xVGA 1xHDMI Interface Display Controller Intel Atom E6XX Integrated Videio Dynamic shared 512M system memory as graphic memory Memory Optional Storage...
-
Page 9: Product Dimension Diagram
BIS-6622 Mini PC Based on Intel Atom E6XX Processor Relative 5%～95%，40℃, non-condensing Humidity Anti-shock 0.5g rms/5~500Hz/random operating Test CE/FCC Class B Product 121.5 mm×121.5 mm×44.5 mm (W×L×H) Dimension Net Weight 500g Material Aluminum Ally Surface Sandblasting and Oxidation Treatment Mounting Compliant with VESA MOUNT standard, Desktop and wall monuting supported. -
Page 10: Chapter 2. Hardware Features
Chapter 2. Hardware Features... -
Page 11: External Interface Index Map
BIS-6622 Mini PC Based on Intel Atom E6XX Processor Chapter 2 Hardware Features 2.1 External Interface Index Map 1：BIS-6622 Front View： 2：BIS-6622II Rear View： 3：BIS-6622IV Rear View：... -
Page 12: Jumper Setting
BIS-6622 Mini PC Based on Intel Atom E6XX Processor 2.2Jumper Setting Please refer to the following jumper setting guide before installing your hareware devices installation. Remark: How to identify jumper and PIN1 of interface: Please observe the word mark of plug socket, it will use “1”... -
Page 13: Audio Interface（Spkout, Mic
BIS-6622 Mini PC Based on Intel Atom E6XX Processor Signal Name USB3- USB3+ 2.3.2 Audio Interface（SPKOUT, MIC） BIS-6622II adopts ALC887 audio decoding chip with one SPEAKOUT and one MIC on the front panel. 2.3.3 Ethernet Port（LAN） BIS-6622Ⅱadopts RTL8211CL+RTL8111D chip for its network, providing 2* RJ-45 Gigabit Ethernet Port with one LED on both sides of the interface. -
Page 14: Lvds Connector
BIS-6622 Mini PC Based on Intel Atom E6XX Processor DSR# CTS# J1： Signal Name Signal Name COM1_RX COM1_TX COM2_RX COM2_TX COM3_RX COM3_TX CANH CANL 2.3.5 LVDS Connector Motherboard provides one 20PIN single channel 24bit LVDS connector. Signal Name Signal Name LA_DATA_N0 L_DDC_DATA LA_DATA_P0... -
Page 15: Expansion（Minipcie
BIS-6622 Mini PC Based on Intel Atom E6XX Processor Signal Name +12V BKLT_EN BKLT_CLT 2.3.7 Expansion（MINIPCIE） Board provides one Mini PCIE port also provides an external antena connector for WIFI. 3.2.8 Power Interface（DC 12V） BIS-6622Ⅱadopts +12V single power input. Signal Name +12V 2.4 BIS-6622 Expansion Board（AFC-442V，AFC-450H）Interface 2.4.1 SATA Interface（SATA）... -
Page 16: Hdmi Interface（Hdmi
BIS-6622 Mini PC Based on Intel Atom E6XX Processor Green Blue HSYNC VSYNC 2.4.3 HDMI Interface（HDMI） Signal Name Signal Name D2 Shield D1 Shield D0 Shield CK Shield CE Remote DDC CLK DDC DATA HP DET SHELL0 SHELL1 SHELL2 SHELL3 SHELL4 SHELL5 SHELL6... -
Page 17: Chapter 3. Hardware Installation
Chapter 3. Hardware Installation... -
Page 18: Dismount Host Cover
BIS-6622 Mini PC Based on Intel Atom E6XX Processor Chapter 3 Hardware Installation Install Computer Accessories Please follow the instructions below: Please make sure your computer doesn’t connect to power supply. Please wear anti-static wrist strap or gloves when touching some integrated curcuit components(such as RAM, etc) Prepare a compact cross screwdriver. -
Page 19: Chapter 4. Bios Setup
Chapter 4. BIOS Setup... - Page 20 BIS-6622 Mini PC Based on Intel Atom E6XX Processor Chapter 4 BIOS Setup AMI BIOS Upgrading BIOS functions as a bridge connecting hardware and operating system. Hardware and software are upgrading all the time, so when your system encounters problems, for example, your system can not support the newest CPU, you need to upgrade BIOS to keep up with the latest technology.
-
Page 21: Main Menu
BIS-6622 Mini PC Based on Intel Atom E6XX Processor configuration will cause damage to the unit even to the system failure. Please adopt BIOS default configuration to recovery system. As for the continuous upgrading of BIOS, the following menu pictures are only for your reference, which may be different from the BIOS you are using now. -
Page 22: Advanced Menu
BIS-6622 Mini PC Based on Intel Atom E6XX Processor System time format: Hour/Minute/Second 4.2 Advanced Menu... -
Page 23: Acpi Configuration
BIS-6622 Mini PC Based on Intel Atom E6XX Processor 4.2.1 ACPI Configuration ACPI Sleep State Sleep mode selection. Different modes with different power consumption. S1(pos): CPU stops working while other devices are still connected to power supply. S3(STR): Power is only supplied to system memory. -
Page 24: Cpu Configuration
BIS-6622 Mini PC Based on Intel Atom E6XX Processor 4.2.2 CPU Configuration The read-only option contains detailed information of CPU, including CPU Type, Frequency,etc. Intel Virtualization Technology Intel Virtualization Technology (Intel VT) is a set of hardware enhancements to Intel server and client platforms that provide software-based virtualization solutions. -
Page 25: Wake On Lan Configuration
BIS-6622 Mini PC Based on Intel Atom E6XX Processor 4.2.3 Wake On Lan Configuration Wake On Lan [Enable] for activating wake-on-lan function [Disable] for closing this function... -
Page 26: Usb Configuration
BIS-6622 Mini PC Based on Intel Atom E6XX Processor 4.2.4 USB Configuration USB Devices（Read Only） This option shows the USB devices that are connected with motherboard. Legacy USB Support If need to support USB device in DOS mode: such as USB Flash Disk, USB keyboard, then select <Enabled>... -
Page 27: Chipset Menu
BIS-6622 Mini PC Based on Intel Atom E6XX Processor 4.3 Chipset Menu... -
Page 28: North Bridge
BIS-6622 Mini PC Based on Intel Atom E6XX Processor 4.3.1 North Bridge... -
Page 29: South Bridge
BIS-6622 Mini PC Based on Intel Atom E6XX Processor 4.3.2 South Bridge Audio Controller This option is for Audio Controller Configuration Recommend to choose [Auto] to let the board self-detect this function LAN1 Controller LAN1 Controller Options. Available options include [Enabled ] and [Disabled]... -
Page 30: Boot Menu
BIS-6622 Mini PC Based on Intel Atom E6XX Processor 4.4 Boot Menu Quiet Boot This option is for showing vendor’s Logo on the screen picture when booting the computer. <Disabled> for close and <Enabled> for open. -
Page 31: Security Menu
BIS-6622 Mini PC Based on Intel Atom E6XX Processor 4.5 Security Menu Administrator Password Users can set up administrator password under this option User Password Users can set up general Users’ password under this option... -
Page 32: Save&Exit Menu
BIS-6622 Mini PC Based on Intel Atom E6XX Processor 4.6 Save&Exit Menu Save Changes and Reset Press <Enter> under this option to save BIOS changes and reboot system. Discard Changes and Reset Press <Enter> under this option to discard BIOS changes and reboot System. Restore Defaults Press <Enter>... -
Page 33: Appendix
Appendix... -
Page 34: Appendix 1: Glossary
BIS-6622 Mini PC Based on Intel Atom E6XX Processor Appendix Appendix 1. Glossary ACPI Advanced Configuration and Power Management. ACPI specifications allow O/S to control most power of the computer and its add-ons Windows 98/98SE，Windows 2000 and Windows ME all support this function, which enable users to manage the system power flexibly. - Page 35 BIS-6622 Mini PC Based on Intel Atom E6XX Processor Computer-Output Microfilmer. A universal serial communication interface, usually adopts normative DB9 connector. DIMM Dual-Inline-Memory-Module. It’s a small circuit board with memory chipset, providing 64bit RAM bus width. DRAM Dynamic Random Access Memorizer. It’s a normal type of universal memory often with a transistor and a capacitance to store 1 bit.
- Page 36 BIS-6622 Mini PC Based on Intel Atom E6XX Processor Line print terminal, the denomination reserved by DOS, is an universal parallel interface usually used to connect printer. Plug-and-Play. It is a specification that allows PC to configure its external devices automatically and can work independently without the manual operation by its user .
