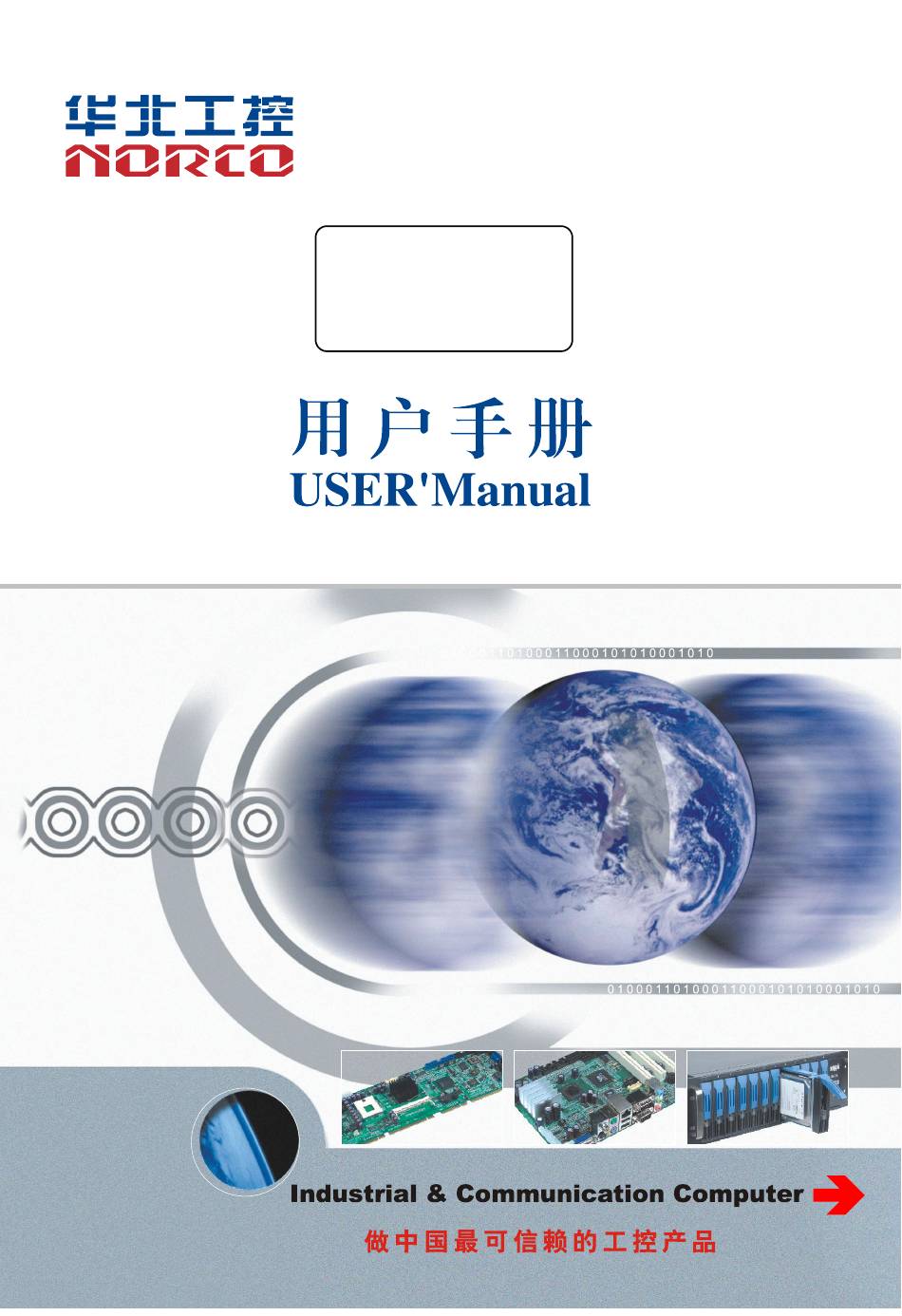

  • Page 1 BIS-1280A40 User Manual...
  • Page 2 BIS-1280A40 User Manual SZ HQ: 0755-27331166 Beijing Office: 010-82671166 Shanghai Office: 021-61212081 Chengdu Office: 028-85259319 Shenyang Office: 024-23960846 Xi’an Office: 029-88338386 Nanjing Office: 025-58015489 Wuhan Office: 027-87858983 Tianjin Office: 022-23727100 Singapore: 65-68530809 For more information, please visit：www.norco.com.cn...
  • Page 3 Before ordering products, please learn about the product performance from the distributors to see if it is in line with your needs. NORCO is a registered trademark of Shenzhen NORCO Intelligent Technology CO., LTD. The ownership of other trademarks involved in this manual is owned by its respective owners.
  • Page 4 Safety Instructions 1. Please read the product manual carefully before using this product. 2．Put all the unused or uninstalled boards or electronic components in a static dissipative surface or static shielding bag. 3．Always ground yourself to remove any static discharge before touching the board, to place your hands on grounding metal object for a while or wear an anti-static wrist strap at all times.

  • Page 5: Table Of Contents

    Content Chapter One Product Introduction ....................1 1.1 Hardware Specificattion......................1 Chapter Two Installation Specification .................... 2 2.1 Right View...........................4 2.2 Front View...........................4 2.3 Rear View........................... 4 Chapter Three Hardware Function ....................3 3.1 External Interface Indicator Diagram.................- 0 - 3.2 SOMB-7007 V1.0.........................
  • Page 6 4.1.11 DO........................... - 15 - 4.1.12 12V Power Control....................- 16 - 5.1 ASL-572A V1.0........................- 16 - 5.2 Installation Step........................- 16 - 5.3 Interface Specification....................... - 17 - 5.3.1 Interface（J1，J2）....................- 17 - 5.3.2 SIM Slot........................- 18 - 5.3.3 SD Slot........................- 18 - 5.3.4 Reset（RSTSW）....................
  • Page 7 Packing List Thanks for purchasing NORCO products. Please check the accessories as per the packing list when you open the package. If you find any components/parts defected, damaged or lost, please contact your vendor ASAP. ■ BIS-1280A40...
  • Page 8 Chapter Product Introdu ction...

  • Page 9: Chapter One Product Introduction

    BIS-1280A40 User Manual Chapter One Product Introduction 1.1 Hardware Specification Processor ●IMX6Q ，quad core (4*A9 1GHz) System Memory ●On board memory： On board memory， support DDR3， memory up to 2G Bytes， default: 1GB Display ●Provide 1x HDMI，support resolution: 1080P @60Hz Ethernet ●Provide 2x RJ45 network interface...
  • Page 10 BIS-1280A40 User Manual Power ●Support single/dual power+12V supply Watchdog ●Support hardware reset Operating Environment ●Operating Temperature：0℃~60℃ ●Operating Humidity：5%~95%，non-condensing...
  • Page 11 Chapter Install ation Specifi cation...

  • Page 12: Chapter Two Installation Specification

    Chapter Two Installation Specification Safety Instruction Current can be used to achieve many useful functions, but it can also cause personal injury and property loss due to improper use. In the design and manufacture of this product, "safety" is considered as the first condition. However, electric shock and fire caused by improper use are not excluded.
  • Page 13 ·When you connect or unplug any device, make sure that the power cord of all devices is unplugged beforehand before the signal cable is connected. ·To avoid the danger of electric shock, the AC power supply should be switched off or the AC power line should be removed from the power socket every time the system is unplugged or reconfigured.

  • Page 14: Right View

    ·Never expose the equipment to direct sunlight. The data and pictures listed in this article are for illustration only. If there are any changes, no further notice will be given. 2.1 Right View 2.2 Front View 2.3 Rear View...
  • Page 15 Chapter Three Hardware Function...

  • Page 16: Chapter Three Hardware Function

    BIS-1280A40 User Manual Chapter Three Hardware Function 3.1 External Interface Indicator Diagram 1：BIS-1280A40 Interfaces Power USB/Debug COM1-16 Interface Power 4G/ANT DI1-12 Interface DO1-4 HDMI Power Power LAN1-2 PWROUT1-2 PWRSW / RST 3.2 SOMB-7007 V1.0 Following is the front interface location and dimensional drawing of SOMB-7007 V1.0.

  • Page 17: Installation Step

    BIS-1280A40 User Manual 3.3 Installation Step Please refer to following steps to assemble your computer： 1．Adjust all jumpers on board SOMB-7007 V1.0 according to the user manual. 2．Install other expansion card. 3．Connect all signal line, cable, panel control circuit, and power supplier.

  • Page 18: Interface Specification

    BIS-1280A40 User Manual transfer mode， you can choose the settings according to your own needs， default transfer mode: RS232. J1-J12 J1-J12： COM AS RS232 PORT COM AS RS485 PORT 3-4 5-6 COM1 1-3 2-4 3-5 4-6 3-4 5-6 COM2 1-3 2-4...
  • Page 19 BIS-1280A40 User Manual COM1-2（J17A） ： Signal Name Signal Name COM2_SIN_A GND_485 COM2_SOUT_B GND_485 GND_ISO1 VCC_COM1_2 VCC_COM1_2 VCC_COM1_2 VCC_COM1_2 GND_ISO1 GND_485 COM3_SOUT_B GND_485 COM3_SIN_A COM3-4（J17B） ： Signal Name Signal Name COM4_SIN_A GND_485 COM4_SOUT_B GND_485 GND_ISO1 VCC_COM3_4 VCC_COM3_4 VCC_COM3_4 VCC_COM3_4 GND_ISO1 GND_485...
  • Page 20 BIS-1280A40 User Manual COM5-6（J17C） ： Signal Name Signal Name COM6_SIN_A GND_485 COM6_SOUT_B GND_485 GND_ISO2 VCC_COM5_6 VCC_COM5_6 VCC_COM5_6 VCC_COM5_6 GND_ISO2 GND_485 COM7_SOUT_B GND_485 COM7_SIN_A COM7-8（J17D） ： Signal Name Signal Name COM8_SIN_A GND_485 COM8_SOUT_B GND_485 GND_ISO2 VCC_COM7_8 VCC_COM7_8 VCC_COM7_8 VCC_COM7_8 GND_ISO2 GND_485...
  • Page 21 BIS-1280A40 User Manual GND_485 COM11_SIN_A COM11-12（J17F） ： Signal Name Signal Name COM12_SIN_A GND_485 COM12_SOUT_B GND_485 GND_ISO3 VCC_COM11_12 VCC_COM11_12 VCC_COM11_12 VCC_COM11_12 GND_ISO3 GND_485 COM13_SOUT_B GND_485 COM13_SIN_A COM13-14（J17G） ： Signal Name Signal Name COM14_SIN_A GND_485 COM14_SOUT_B GND_485 GND_ISO4 VCC_COM13_14 VCC_COM13_14 VCC_COM13_14 VCC_COM13_14...

  • Page 22: Sata Port（Sata，J27

    BIS-1280A40 User Manual GND_ISO4 GND_485 COM17_SOUT_B GND_485 COM17_SIN_A 3.5.2 SATA Port（SATA，J27） Provide 1x standard 7Pin SATA signal port and 1x4Pin SATA power interface（J27）. SATA SATA： Signal Name J27： Signal Name +3.3V...

  • Page 23: Usb Port（Usb12_Debug，Otg

    BIS-1280A40 User Manual 3.5.3 USB Port（USB12_DEBUG，OTG） USB12_DEBUG 3.5.4 Ethernet Interface（LAN1_2） Provide 2x Ethernet interfaces，speed：10/100/1000MBps. LAN1_2 3.5.5 Display Port（HDMI） Motherboard provide 1x HDMI. HDMI...

  • Page 24: Interface（J13，J26

    BIS-1280A40 User Manual HDMI： Signal Name Signal Name HDMI_D2P HDMI_D2M HDMI_D1P HDMI_D1M HDMI_D0P HDMI_D0M HDMI_CLKP HDMI_CLKM HDMI_CEC_OUT HDMI_DDC_CLK_OUT HDMI_DDC_DAT_OUT HDMI_ HPD_OUT 3.5.6 Interface（J13，J26） J13： （Connect to the J1 of the lamp board ASL-572A through the FPC） Signal Name Signal Name...

  • Page 25: Power Interface（Pwrin1，Pwrin2，Pwrout

    BIS-1280A40 User Manual SD3_DATA0 SD3_DATA1 GEN_3V3 SD3_WP GEN_3V3 J26（Connect to the J2 of the lamp board ASL-572A through the FPC） ： Signal Name Signal Name GEN_3V3 GEN_3V3 I2C2_SCL_LED LAN1_LED_LINK I2C2_SDA_LED LAN1_LED_ACT LAN2_LED1_LINK SYSOK_LED LAN2_LED1_ACT RST_KEY PWRSW_KEY I2C3_SCL_A I2C3_SDA_A 3.5.7 Power Interface（...

  • Page 26: Di And Do Interface（J14，J16，J18，J9

    BIS-1280A40 User Manual +12V1 +12V2 +12V1 +12V2 GND_12V1 GND_12V2 GND_12V1 GND_12V2 PWRIN1-2： Signal Name GND_IN GND_IN +PWR +PWR 3.5.8 DI and DO Interface（J14，J16，J18，J9） Motherboard support 12x DI data input and 4x DO output. J14，J16，J18 J14A： Signal Name Signal Name GND_iso5...
  • Page 27 BIS-1280A40 User Manual GND_IO DIN2 GND_IO GND_iso5 J14B： Signal Name Signal Name GND_iso5 GND_IO DIN3 GND_IO +12VOUT_IO_FL +12VOUT_IO_FL +12VOUT_IO_FL +12VOUT_IO_FL GND_IO DIN4 GND_IO GND_iso5 J16A： Signal Name Signal Name GND_iso5 GND_IO DIN5 GND_IO +12VOUT_IO_FL +12VOUT_IO_FL +12VOUT_IO_FL +12VOUT_IO_FL GND_IO DIN6 GND_IO GND_iso5 J16B：...
  • Page 28 BIS-1280A40 User Manual +12VOUT_IO_FL +12VOUT_IO_FL GND_IO DIN8 GND_IO GND_iso5 J18A： Signal Name Signal Name GND_iso5 GND_IO DIN9 GND_IO +12VOUT_IO_FL +12VOUT_IO_FL +12VOUT_IO_FL +12VOUT_IO_FL GND_IO DIN10 GND_IO GND_iso5 J18B： Signal Name Signal Name GND_iso5 GND_IO DIN11 GND_IO +12VOUT_IO_FL +12VOUT_IO_FL +12VOUT_IO_FL +12VOUT_IO_FL GND_IO...

  • Page 29: Expansion Interface

    BIS-1280A40 User Manual NC_1 +12VOUT_IO_FL +12VOUT_IO_FL +12VOUT_IO_FL +12VOUT_IO_FL NC_2 GND_IO DO_2 GND_IO NO_2 J19B： Signal Name Signal Name NO_3 GND_IO DO_3 GND_IO NC_3 NC_4 GND_IO NO_4 GND_IO DO_4 3.5.9 Expansion Interface Motherboard provide 1x MINI PCIe interface， support Mini-PCIE/3G/4G /WLAN； On board SIM card slot，support 3G/4G network，it needs to be used with Mini PCIE 3G/4G module, and...

  • Page 30: Linux System

    BIS-1280A40 User Manual 4.1 Linux System 4.1.1 HDMI Instructions: Connect the motherboard and the monitor with HDMI cable, and the shell command line interface will appear after power on. 4.1.2 USB Generate /dev/sda1 node after USB flash disk is inserted...

  • Page 31: Ethernet

    BIS-1280A40 User Manual sudo apt-get install exfat-fuse exfat-utils 4.1.7 3G/4G The driver should be customized according to the 3G module used by the customer. The default automatic compatibility support is HUAWEI ME909 and Quectel EC20. HUAWEI dial up： echo -e "AT^NDISDUP=1,1,\"CMNET\"\r" > /dev/ttyUSB0;...

  • Page 32: Power Control

    BIS-1280A40 User Manual USB flash disk) Enter the USB flash disk directory：cd /mnt Run DO test program in USB flash disk：./DO_test 4.1.12 12V Power Control Corresponding node：/dev/power:1——/dev/power:2 5.1 ASL-572A V1.0 Following is the front interface location and dimensional drawing of ASL-572A V1.0. Please be careful during the installation.

  • Page 33: Interface Specification

    BIS-1280A40 User Manual 5.3 Interface Specification Please read this manual carefully before connecting the external connector to avoid damage to the motherboard！ 5.3.1 Interface（J1，J2） Left J2，Right J1 J1（Connect to the J13 of the expansion board SOMB-7007 through the FPC） ：...

  • Page 34: Sim Slot

    BIS-1280A40 User Manual LAN1_LED_LINK I2C2_SDA_LED LAN1_LED_ACT LAN2_LED1_LINK SYSOK_LED LAN2_LED1_ACT RST_KEY PWRSW_KEY I2C3_SCL_A I2C3_SDA_A 5.3.2 SIM Slot 5.3.3 SD Slot 5.3.4 Reset（RSTSW） RSTSW...

  • Page 35: Power（Pwrsw

    BIS-1280A40 User Manual 5.3.5 Power（PWRSW） PWRSW 5.3.6 MINI PCIE Interface MINI PCIE...

  • Page 36: Appendix

    Appen...

  • Page 37: Appendix 1：Glossary

    BIS-1280A40 User Manual Appendix Appendix 1：Glossary BUS is a channel for different devices to exchange data in computer system. It is hardware circuit. BUS here refers to partial lines inside CPU and the main components of system memory. Chipset Chipset is a Integrated set of chips for executing one or more related functions. Here it refers to a system level chipset structured by South bridge &...
  • Page 38 BIS-1280A40 User Manual communications links. Terminals can access data and devices anywhere through cables, which enables users to share costly devices and resource. Light-Emitting Diode. A semiconductor device that lighted when power supply is connected,It is often used to indicate information directly, for example, to indicate power on or HDD working normally.
