- Page 1 Levanto 20000170 Part no. User Manual...
-
Page 2: Table Of Contents
Contents User Manual (EN) Safety Instructions Symbols Intended Use Product Benefits Warnings General Care and Use Components Technical Specifications Product Label Product Symbols Understanding the Components Usage Warnings Usage Guidelines Product Care Troubleshooting Maintenance Service Checklist... -
Page 3: User Manual (En)
Symbols core strength. The Levanto can be used for transfer from the WARNING symbol indicates a potentially following: hazardous situation which, if not avoided, could result in serious injury to the user... -
Page 4: Warnings
Use only the supplied power supply. attempting to use this equipment. Use only replacement parts supplied Using this equipment without fully by Human Care. understanding it may result in injury or damage. To avoid the risk of electric shock, this... -
Page 5: General Care And Use
General Care and Use Check the Levanto prior to each use to ensure it is not damaged in any way. Do not use if there are any signs of wear and damage on any part of the device. This product is intended for indoor Only qualified persons should use ambient environments. -
Page 6: Components

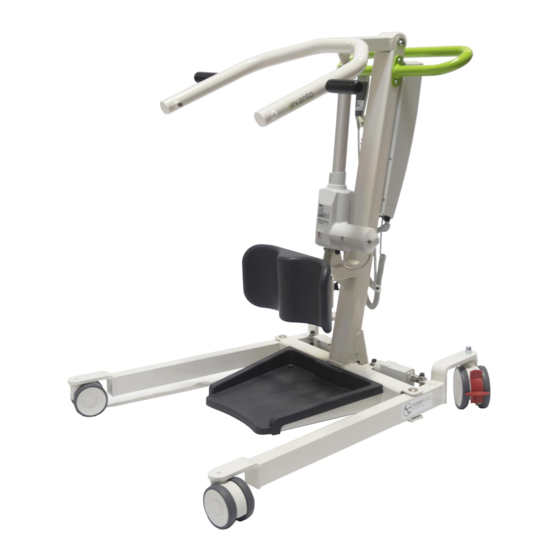

Components Lift Arm Front Wheel Push Handle Rear Wheel (with brake) Battery/Control Box Unit Hand Control (not shown) Actuator Footplate (not shown) Shin Pads www.humancaregroup.com... -
Page 7: Technical Specifications
Technical Specifications Description Part no. 20000170 Width 68.7cm / 27” Length 110cm / 43.3” Height Arm Lowered: 88.9cm / 35” Arm Raised : 164.8cm / 64.9” Height (from floor) 11.9cm / 4.7” Adjustable Leg (Min - Max) 67.9cm - 113.1cm / 26.7” - 44.5” Sound Level 48dB (loaded) while lifting 52dB (loaded) while spreading legs... -
Page 8: Product Label
Date of manufacture test institute and complies with the necessary requirements in accordance with medical requirements as follows: EN 10535, EN 60601-1 Manufactured for Human Care (Electrical Safety) and EN 60601-1-2 (EMC). This product is CE marked. Maximum load Instructions: Read the instructions and... -
Page 9: Understanding The Components
Understanding the Components Emergency Stop Understanding the Hand Control Arm up Use the emergency stop to turn off the lift when Arm down not in use to reduce the battery discharge. Open legs Close legs Press the emergency stop button located on the side of the control box to stop the lift. - Page 10 Battery Insert the new batteries in the same direction as the old batteries, with the connectors at the top and connect (Note: Always ensure that battery is sufficiently charged += red, - = black). Be careful before using this lift. The battery will not charge if not to bend the connectors.
- Page 11 The Levanto can be used with the legs in the wide or narrow position. The choice between which position to use depends on the necessity and available space.
- Page 12 Shin Supports Wheels The angle of the shin supports automatically The Levanto wheels have a very low resistance adjusts as the mast raises. The shin pads are to rolling due the integrated ball bearings at the adjustable with a handle.
-
Page 13: Usage Warnings
Slings Floor Lift This device requires slings with clips that Check prior to each use to ensure the Levanto is support the lower back. not damaged in any way. Do not use if there are any signs of wear and damage on any part of the device. -
Page 14: Usage Guidelines
Initial Set Up Ensure that the patient is securely held in position during the entire move. Do not move patient on an The Levanto is delivered ready to use and requires incline/decline. only minimal assembly. Check that all required components are included. - Page 15 Raising and Lowering the Patient Attach sling clips to Levanto lift arm clips. Ensure all straps are even in length. At the beginning of the lifting process, keep a hand on the sling to ensure it remains in the correct position.
-
Page 16: Product Care
Product Care Lift Care Use a clean, dry cloth or a cloth moistened with clean water and mild detergent to clean. Do not autoclave or pressure clean. All sliding parts and moveable fittings must be lightly greased at least once per year using only an acid-free and resin-free grease. -
Page 17: Troubleshooting
The battery is not charging. Release the emergency stop button. Maintenance The Levanto is constructed in such a way that maintenance can be kept to a minimum. It is recom- mended that the following maintenance scheduled is maintained. Checklist Prior to Each Use Semi-Annual Maintenance ü... -
Page 18: Service Checklist
Service Checklist: Levanto Inspection Checklist Semi-Annual Check Annual Check Serial Number Date Visual Check Good Unacceptable Additional Comments The serial number sticker is present and legible. The manual or quick reference guide is available for reference. The annual service sticker is present and legible. - Page 19 www.humancaregroup.com...
- Page 20 HUMAN CARE SWEDEN (HQ) Årstaängsvägen 21B 117 43 Stockholm Phone:- +46 8 665 35 00 Fax:- +46 8 665 35 10 Email: info.se@humancaregroup.com HUMAN CARE CANADA 10-155 Colonnade Road Ottawa, ON K2E 7K1 Phone:- 613.723.6734 Fax:- 613.723.1058 Email: info.ca@humancaregroup.com HUMAN CARE UNITED STATES...
