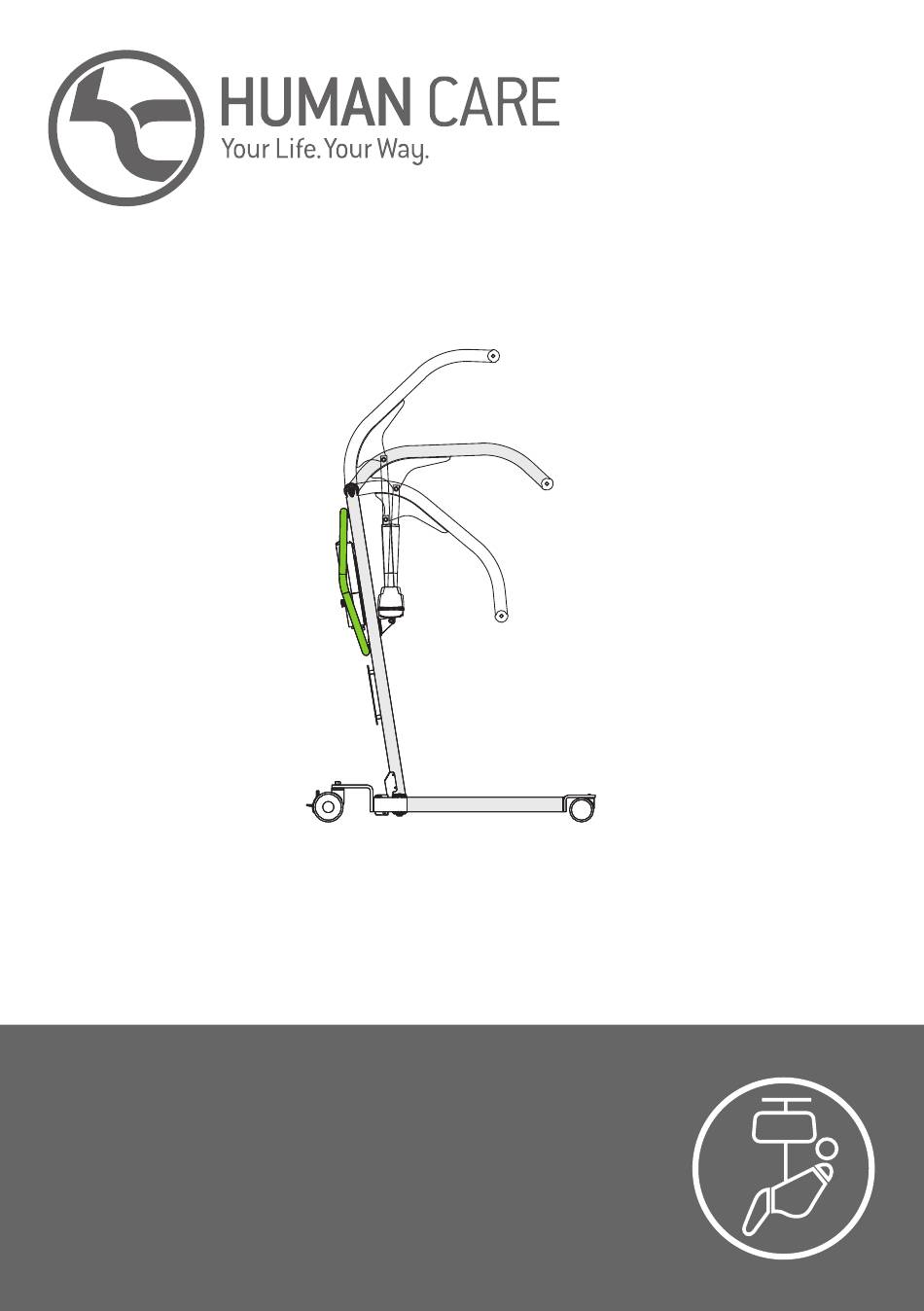

- Page 1 Alzaro 11000490 Part no. User Manual...
-
Page 2: Table Of Contents
Contents User Manual (EN) Safety Instructions Symbols Intended Use Product Benefits Warnings General Care and Use Components Technical Specifications Product Label Product Symbols Understanding the Components Usage Warnings Usage Guidelines Product Care Troubleshooting Maintenance Service Checklist... -
Page 3: User Manual (En)
Symbols The Alzaro can be used for transfer from the following: WARNING symbol indicates a potentially hazardous situation which, if not avoided,... -
Page 4: Warnings
Warnings Always check that there is sufficient The decision to use this equipment space above and around the Alzaro. must be made by a trained During a transfer, the arm should be professional. In all cases, this product in a half-height position. -
Page 5: General Care And Use
General Care and Use Check the Alzaro prior to each use to ensure it is not damaged in any way. Do not use if there are any signs of wear and damage on any part of the device. This product is intended for indoor Only qualified persons should use ambient environments. -
Page 6: Components

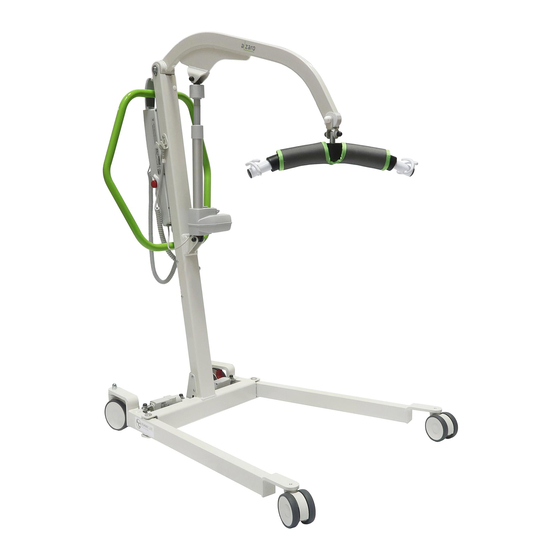

Components Lift Arm Front Wheel Push Handle Rear Wheel (with brake) Actuator Hand Control (not shown) Battery/Control Box Unit Spreader Bar (not shown) Leg Adjustment www.humancaregroup.com... -
Page 7: Technical Specifications
Technical Specifications Description Part no. 11000490 Width 68.7cm / 27” Length 118.3cm / 46.6” Height Arm Lowered: 86.3cm / 34” Arm Raised : 195.3cm / 76.9” Height (from floor) 11.3cm / 4.4” Adjustable Leg (Min - Max) 67.9cm - 119.6cm / 26.7” - 47.1” Sound Level 48dB (loaded) while lifting 52dB (loaded) while spreading legs... -
Page 8: Product Label
Expected Life Product Symbols The expected lifespan of the Alzaro, in normal Symbols on the unit and product label: use and under normal circumstances, apart from slings, spreader bars and batteries, is CE Marking 10 years or 10,000 transfers when serviced according to the instructions. -
Page 9: Understanding The Components
Understanding the Components Emergency Stop Understanding the Hand Control Arm up Use the emergency stop to turn off the lift when Arm down not in use to reduce the battery discharge. Open legs Close legs Press the emergency stop button located on the side of the control box to stop the lift. - Page 10 Battery Insert the new batteries in the same direction as the old batteries, with the connectors at the top and connect (Note: Always ensure that battery is sufficiently charged += red, - = black). Be careful before using this lift. The battery will not charge if not to bend the connectors.
- Page 11 The Alzaro can be used with the legs in the wide or narrow position. The choice between which position to use depends on the necessity and available space.
- Page 12 Take care when lowering or raising the arm not to Do not lift the Alzaro arm higher than is necessary hit the patient. to move it. If you want to move the Alzaro, ensure the arm is in half high position. To raise the arm, press on Moving the Alzaro is easiest the up arrow button.
-
Page 13: Usage Warnings
Slings Floor Lift This device may be used with loop slings Check prior to each use to ensure the Alzaro is or with clip slings if the self-balancing not damaged in any way. Do not use if there are cradle is selected. -
Page 14: Usage Guidelines
Usage Guidelines Test the security of the spreader bar before using. Initial Set Up The Alzaro is delivered ready to use and requires only minimal assembly. Check that all required The self-balancing cradle components are included. can be installed on the... - Page 15 Lift only from a safe, seated or supine position. Bring the Alzaro up to the Ensure that if lowering patient, spreading the base patient into a product (ex.
-
Page 16: Product Care
Product Care Lift Care Use a clean, dry cloth or a cloth moistened with clean water and mild detergent to clean. Do not autoclave or pressure clean. All sliding parts and moveable fittings must be lightly greased at least once per year using only an acid-free and resin-free grease. -
Page 17: Troubleshooting
Troubleshooting Problem Solution The lift will not work. Check the status of the battery to ensure it is fully charged. Check that the plugs have correctly been inserted into the mains and the control box. The lift arm will not raise up or down. Check that the control box is properly connected. -
Page 18: Maintenance
Maintenance The Alzaro is constructed in such a way that maintenance can be kept to a minimum. It is recommend- ed that the following maintenance scheduled is maintained. Semi-Annual Maintenance Checklist Prior to Each Use ü Complete the service checklist. If the lift ü... - Page 19 Service Checklist: Alzaro Inspection Checklist Semi-Annual Check Annual Check Serial Number Date Visual Check Good Unacceptable Additional Comments The serial number sticker is present and legible. The manual or quick reference guide is available for reference. The annual service sticker is present and legible.
- Page 20 HUMAN CARE SWEDEN (HQ) Årstaängsvägen 21B 117 43 Stockholm Phone:- +46 8 665 35 00 Fax:- +46 8 665 35 10 Email: info.se@humancaregroup.com HUMAN CARE CANADA 10-155 Colonnade Road Ottawa, ON K2E 7K1 Phone:- 613.723.6734 Fax:- 613.723.1058 Email: info.ca@humancaregroup.com HUMAN CARE UNITED STATES...
