human care OVERHEAD LIFT Reference Manual

Manual Emergency
Lower
May be used in event of power
failure or lift malfunction.
Auxiliary
UP/DOWN Switches
May be used in event handset
does not operate.
Auxiliary POWER/
Emergency DOWN
switches
For use if Handset has
malfunctioned.
EMERGENCY DOWN
may be used to lower
patient in event of
malfunction in lift
circuitry.
HELPFUL HINT
Return to charge after every use.
Note: some hand control models will
have RTC (return to charge) button.
Motor will attempt to return to docking
station and if track configuration is a
H-track you will need to manually push
motor to charging dock.

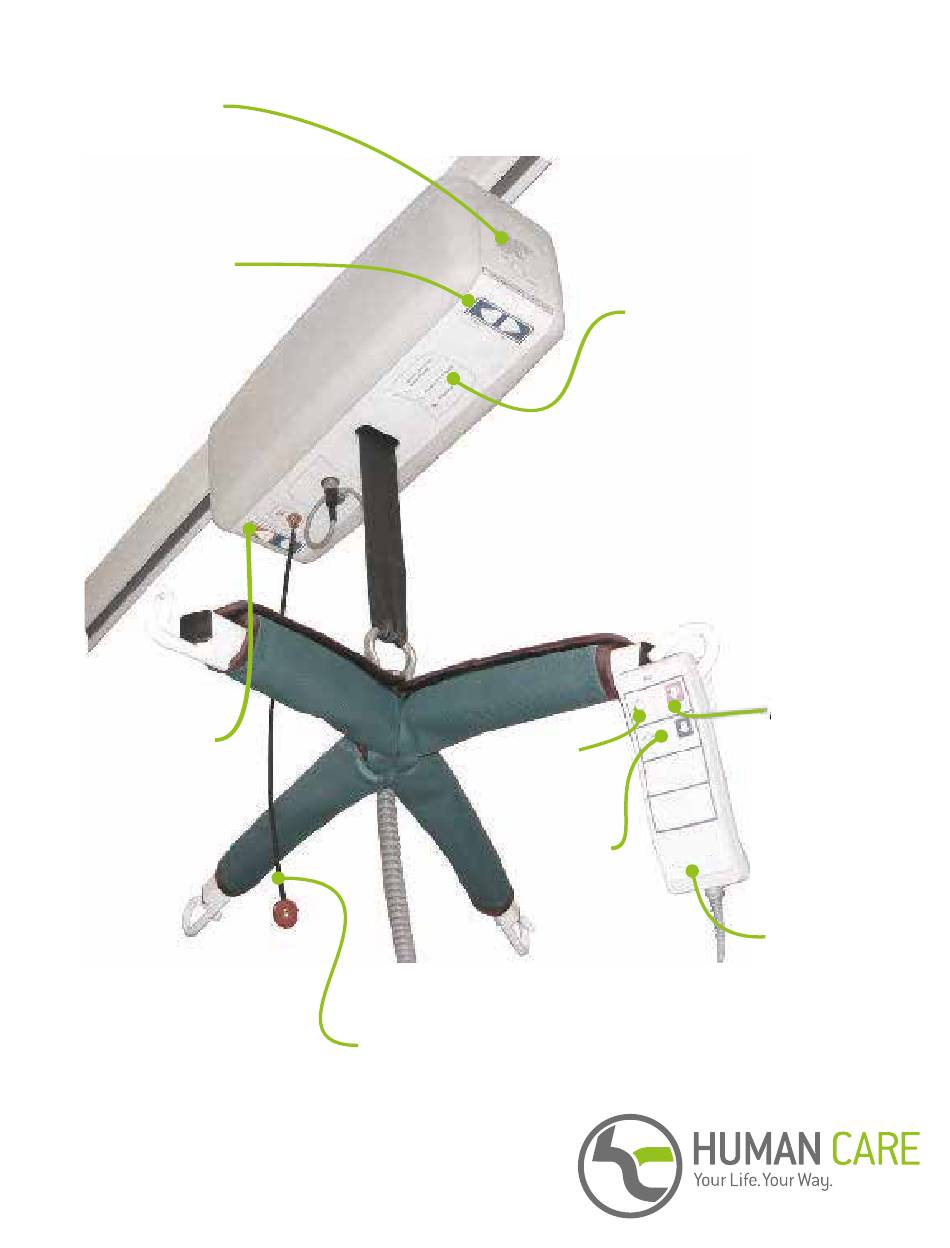

OVERHEAD LIFT
READY TRACK REFERENCE GUIDE
Emergency OFF
Pull Cord Switch
POWER - GREEN light indicates
power ON. DIAGNOSTIC - Flashes
RED in various sequences indicating
various internal trouble situations.
Solid RED light indicates low battery
condition. Battery should be charged
immediately. CHARGING - YELLOW
indicates active charging. GREEN
indicates fully charged.
Power
ON/OFF
UP/DOWN
If lift does not operate and POWER
LED does not light, pull cord once
gently to turn power ON. May be
used to cut power to lift entirely in
an urgent situation.
Emergency
down
Handset
