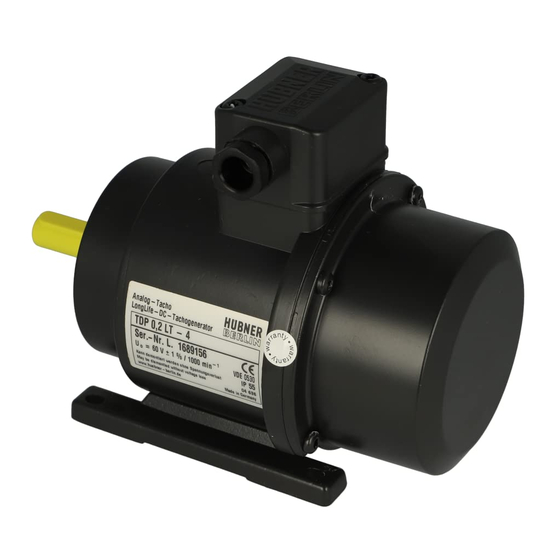

Tachogenerator with integrated centrifugal switch
Hide thumbs Also See for Hubner TDP 0,2+FSL Series:
Table of Contents

Advertisement

Quick Links

Montage- und Betriebsanleitung
Installation and operating instructions
TDP 0,2 + FSL, TDPZ 0,2 + FSL
Tachogenerator mit integriertem Fliehkraftschalter
Tachogenerator with integrated centrifugal switch
B3
B10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hubner TDP 0,2+FSL Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Baumer Hubner TDP 0,2+FSL Series

  • Page 1 Montage- und Betriebsanleitung Installation and operating instructions TDP 0,2 + FSL, TDPZ 0,2 + FSL Tachogenerator mit integriertem Fliehkraftschalter Tachogenerator with integrated centrifugal switch...
  • Page 2: Table Of Contents

    Version mit Gehäusefuß - B3 ........................4.3.1 Schritt 2 ........................10 4.3.2 Schritt 3 ........................10 Max. zulässige Anbaufehler unter Verwendung der Baumer Hübner Federscheiben-Kupplung K 35 ................Hinweis bei Verwendung einer Klauenkupplung (zum Beispiel „ROTEX®“) ....Anbauhinweis ..............................Abmessungen ................................
  • Page 3 Step 4 ........................9 4.3 Version with housing foot - B3 ......................... 4.3.1 Step 2 ........................10 4.3.2 Step 3 ........................10 Max. permissible mounting tolerance when the Baumer Hübner K 35 spring disk coupling is used ................ Note when using a jaw-type coupling (for example “ROTEX®”) ........... Mounting instruction ............................Dimensions ..................................5.1 TDP 0,2 + FSL ..............................
  • Page 4: Allgemeine Hinweise

    Allgemeine Hinweise Allgemeine Hinweise Zeichenerklärung: Gefahr Warnung bei möglichen Gefahren  Hinweis zur Beachtung Hinweis zur Gewährleistung eines einwandfreien Betriebes des Produkts Information Empfehlung für die Produkthandhabung Die Kombination TDP 0,2 + FSL, TDPZ 0,2 + FSL ist ein generatorisch arbeitendes Prä zi­ sions­Drehzahlmessgerät mit Fliehkraftschalter, das mit Sorgfalt nur von technisch qualifi- ziertem Per sonal gehandhabt werden darf.
  • Page 5: General Notes

    General notes General notes Symbol guide: Danger Warnings of possible danger  General information for attention Informations to ensure correct product operation Information Recommendation for product handling The combination TDP 0,2 + FSL, TDPZ 0,2 + FSL is a generator-based working precision ro- tary measurement device with centrifugal switch which must be handled with care by skilled personnel only.
  • Page 6: Sicherheitshinweise

    Sicherheitshinweise Sicherheitshinweise Verletzungsgefahr durch rotierende Wellen Haare und Kleidungsstücke können von rotierenden Wellen erfasst werden. Vor allen Arbeiten alle Betriebsspannungen ausschalten und Maschinen stillsetzen. • Zerstörungsgefahr durch mechanische Überlastung Eine starre Befestigung kann zu Überlastung durch Zwangskräfte führen. Die Beweglichkeit der Kombination niemals einschränken. Unbedingt die Montagehinweise •...
  • Page 7: Security Indications

    Security indications Security indications Risk of injury due to rotating shafts Hair and clothes may become tangled in rotating shafts. Before all work switch off all operating voltages and ensure machinery is stationary. • Risk of destruction due to mechanical overload Rigid mounting may give rise to constraining forces. Never restrict the freedom of movement of the combination. The installation instructions must •...
  • Page 8: Vorbereitung

    Vorbereitung / Preparation Vorbereitung Preparation Lieferumfang ­ Gerät Scope of delivery - device Gehäuse Tachogenerator Housing tachogenerator Gehäuse Fliehkraftschalter Housing centrifugal switch Vollwelle mit Passfeder Solid shaft with key EURO-Flansch - B10 EURO flange - B10 Gehäusefuß - B3 Housing foot - B3 Kohlebürstenhalterung mit Kohlebürsten Holder for carbon brushes with carbon brushes Kohlebürsten, auch als Zubehör erhältlich, Carbon brushes, also available as accessory, Bestellnummer 11076778 (S7/H7) order number 11076778 (S7/H7) Abdeckung für Kohlebürsten Cover for carbon brushes...
  • Page 9: Lieferumfang - Klemmenkästen

    Vorbereitung / Preparation Lieferumfang ­ Klemmenkästen Scope of delivery - terminal boxes Klemmenkasten Tachogenerator Terminal box tachogenerator Klemmenkastendeckel Terminal box cover Kombi-Torx-Schraube M4x32 mm Screw with torx and slotted drive M4x32 mm Druckschraube M16x1,5 Pressure screw M16x1,5 für Kabel ø6-8 mm for cable ø6-8 mm Anschlussklemmen, Connecting terminal, siehe Abschnitt 6.1.
  • Page 10: Zur Montage Erforderlich (Nicht Im Lieferumfang Enthalten)

    Vorbereitung / Preparation Zur Montage erforderlich Required for mounting (nicht im Lieferumfang enthalten) (not included in scope of delivery) Anbauvorrichtung, kundenspezifisch Installation fitting, customized Befestigungsschrauben für Anbauvorrichtung Fixing screws for installation fitting ISO 4017, ISO 4017, M6x16 mm M6x16 mm Federscheibenkupplung K 35, Spring disk coupling K 35, als Zubehör erhältlich, siehe Abschnitt 4.4. available as accessory, see section 4.4.
  • Page 11: Montage

    Montage / Mounting Montage Mounting Schritt 1 Step 1 Zul. Anzugsmoment Max. tightening torque = 2­3 Nm 2.5 mm Version mit EURO­Flansch ­ B10 Version with EURO flange - B10 4.2.1 Schritt 2 4.2.1 Step 2 10 mm * Siehe Seite 7 See page 7 Motorwelle einfetten! Lubricate motor shaft!
  • Page 12: Schritt 3

    Montage / Mounting 4.2.2 Schritt 3 4.2.2 Step 3 10 mm 4.2.3 Schritt 4 4.2.3 Step 4 2.5 mm Zul. Anzugsmoment Max. tightening torque = 2­3 Nm * Siehe Seite 5 oder 7 See page 5 or 7 MB079.1 - 11115288 ...
  • Page 13: Version Mit Gehäusefuß - B3

    Montage / Mounting Version mit Gehäusefuß ­ B3 Version with housing foot - B3 4.3.1 Schritt 2 4.3.1 Step 2 Motorwelle einfetten! Lubricate motor shaft! Die Antriebswelle sollte einen mög­ The drive shaft should have as less lichst kleinen Rundlauffehler aufwei­ runout as possible.
  • Page 14: Max. Zulässige Anbaufehler Unter Verwendung Der Baumer Hübner Federscheiben-Kupplung K 35

    K 35 spring disk coupling is used Kombinationen mit Vollwelle sollten Combinations with a solid shaft should be unter Verwendung der Baumer Hübner driven through the Baumer Hübner K35 Federscheiben-Kupplung K35 (Zubehör) spring disk coupling (accessory), that can angetrieben werden, die sich ohne axialen be pushed onto the shaft without axial Druck auf die Welle schieben lässt.
  • Page 15: Hinweis Bei Verwendung Einer Klauenkupplung (Zum Beispiel „Rotex®")

    Montage / Mounting Hinweis bei Verwendung einer Klauen­ Note when using a jaw-type coupling kupplung (zum Beispiel „ROTEX®“) (for example “ROTEX®”) Eine falsche Montage der Klauenkupplung Incorrect mounting of the jaw-type cou- führt zur Beschädigung der Kombination. pling can damage the combination. Mit einem Tiefenmessschieber die Use a depth gauge to find and observe the korrekten Abstände (L, L1), siehe unten,...
  • Page 16: Anbauhinweis

    Montage / Mounting Anbauhinweis Mounting instruction Wir empfehlen, die Kombination so zu It is recommended to mount the montieren, dass der Kabelanschluss combination with cable connection keinem direkten Wassereintritt aus­ facing downward and being not expo- gesetzt ist. sed to water. MB079.1 - 11115288 ...
  • Page 17: Abmessungen

    Abmessungen / Dimensions Abmessungen Dimensions TDP 0,2 + FSL TDP 0,2 + FSL 5.1.1 Version mit EURO­Flansch ­ B10 5.1.1 Version with EURO flange - B10 (61356, 61359) (61356, 61359) Drehrichtung positiv Positive rotating direction 5.1.2 Version mit Gehäusefuß ­ B3 5.1.2 Version with housing foot - B3 (61254) (61254) Drehrichtung...
  • Page 18: Tdpz 0,2 + Fsl (Doppel-Tachogenerator)

    Abmessungen / Dimensions TDPZ 0,2 + FSL TDPZ 0,2 + FSL (Doppel­Tachogenerator) (twin tachogenerator) 5.2.1 Version mit EURO­Flansch ­ B10 5.2.1 Version with EURO flange - B10 (61804) (61804) Drehrichtung positiv Positive rotating direction 5.2.2 Version mit Gehäusefuß ­ B3 5.2.2 Version with housing foot - B3 Drehrichtung positiv Positive rotating direction All dimensions in millimeters (unless otherwise stated)
  • Page 19: Elektrischer Anschluss

    Elektrischer Anschluss / Electrical connection Elektrischer Anschluss Electrical connection Tachogenerator Tachogenerator 6.1.1 Kabelanschluss 6.1.1 Cable connection TX 20 16 mm 14 * 12c * ø6-8 mm 22 mm Ansicht siehe Abschnitt 6.1.2 und 6.1.3. ø5-13 mm View , see section 6.1.2 and 6.1.3. Zur Gewährleistung der angege­ To ensure the specified protection benen Schutzart sind nur geeignete of the device the correct cable dia-...
  • Page 20: Fliehkraftschalter

    Elektrischer Anschluss / Electrical connection Fliehkraftschalter Centrifugal switch 6.2.1 Kabelanschluss 6.2.1 Cable connection TX 20 16 mm 13c * 14 * 22 mm ø6-8 mm ø5-13 mm Ansicht siehe Abschnitt 6.2.2. * Siehe Seite 6 View , see section 6.2.2. See page 6 Zur Gewährleistung der angege­ To ensure the specified protection benen Schutzart sind nur geeignete of the device the correct cable dia-...
  • Page 21: Betrieb Und Wartung

    Betrieb und Wartung / Operation and maintenance Betrieb und Wartung Operation and maintenance Austausch der Kohlebürsten Replace of the carbon brushes Bei Erreichen der minimalen Bürstenlänge When the minimum brush length (L) of (L) von 5,3 mm sollten die Bürsten ausge- 5.3 mm is reached , the brushes should be wechselt sowie der Kommutatorraum mit replaced and the commutator area should trockener Pressluft ausgeblasen werden, be cleaned with dry compressed air in or-...
  • Page 22: Demontage

    Demontage / Dismounting Demontage Dismounting Schritt 1 Step 1 TX 20 16 mm 13c * 22 mm Schritt 2 Step 2 TX 20 16 mm 22 mm * Siehe Seite 6 oder 7 See page 6 or 7 MB079.1 - 11115288  Baumer_TDP02-FSL-TDPZ02-FSL_II_DE-EN (15A3)
  • Page 23 Demontage / Dismounting Schritt 3 Step 3 8.3.1 Version mit EURO­Flansch ­ B10 8.3.1 Version with EURO flange - B10 10 mm 2.5 mm 8.3.2 Version mit Gehäusefuß ­ B3 8.3.2 Version with housing foot - B3 2.5 mm 10 mm Schritt 4 Step 4 8.4.1 Version mit EURO­Flansch ­...
  • Page 24 Demontage / Dismounting Schritt 4 Step 4 8.4.2 Version mit Gehäusefuß ­ B3 8.4.2 Version with housing foot - B3 Schritt 5 Step 5 2.5 mm * Siehe Seite 7 See page 7 MB079.1 - 11115288  Baumer_TDP02-FSL-TDPZ02-FSL_II_DE-EN (15A3)
  • Page 25: Zubehör

    Zubehör / Accessories Zubehör Accessories Federscheiben-Kupplung Spring disk coupling • • K 35 K 35 Kohlebürsten, 1 Satz (2 Stück) Carbon brushes, 1 set (2 pieces) • • Bestellnummer: order number: 11076778 (S7/H7) 11076778 (S7/H7) Werkzeugset, Tool kit, • • Bestellnummer: 11076778 order number: 11076778 * Siehe Abschnitt 3 * See section 3 MB079.1 - 11115288 Baumer_TDP02-FSL-TDPZ02-FSL_II_DE-EN (15A3) ...
  • Page 26: Technische Daten

    Technische Daten Technische Daten 10.1 Technische Daten ­ elektrisch Störfestigkeit: EN 61000-6-2:2005 • Störaussendung: EN 61000-6-3:2007/A1:2011 • Zulassung: • 10.2 Technische Daten ­ elektrisch (Tachogenerator) Reversiertoleranz: ≤0,1 % • Linearitätstoleranz: ≤0,15 % • Temperaturkoeffizient: ±0,05 %/K (Leerlauf) • Isolationsklasse: • Kalibriertoleranz: ±1 % •...
  • Page 27: Prüfbedingungen Für Schaltdrehzahl

    10.5 Prüfbedingungen für Schaltdrehzahl ´ Drehzahl-Anstieg Δn = 2 [U/min]/s Drehzahl-Anstieg Δn = 1500 [U/min]/s 10.6 Daten nach Typ Leerlauf- Min. erforderlicher Lastwiderstand in Max. Anker- Anker- spannung Abhängigkeit vom Drehzahlbereich Betriebs- Widerstand Induktivität (DC) [U/min] drehzahl 0 - 3000: 0 - 6000: 0 - n (20°C)
  • Page 28: Technical Data

    Technical data Technical data 10.1 Technical data - electrical ratings Interference immunity: EN 61000-6-2:2005 • Emitted interference: EN 61000-6-3:2007/A1:2011 • Approval: • 10.2 Technical data - electrical ratings (tachogenerator) Reversal tolerance: ≤0.1 % • Linearity tolerance: ≤0.15 % • Temperature coefficient: ±0.05 %/K • Isolation class: • Calibration tolerance: ±1 % • Climatic test: Humid heat, constant (IEC 60068-2-3, Ca) •...
  • Page 29: Test Conditions For Switching Speed

    10.5 Test conditions for switching speed ´ a) Speed rise Δn = 2 rpm/s b) Speed rise Δn = 1500 rpm/s 10.6 Type data Open- Minimum load required Maximum Armature Armature circuit depending on speed range operating resistance inductance voltage [rpm] speed Type (DC) 0 - 3000: 0 - 6000: 0 - n (20°C) [mV/rpm]...
  • Page 30: Anhang: Konformitätserklärung

    Daniel Kleiner Lieu et date Signature/nom/fonction Head of Product Segment Baumer Hübner GmbH · P.O. Box 126943 · D-10609 Berlin · Max-Dohrn-Str. 2+4 · D-10589 Berlin Phone +49 (0)30 69003-0 · Fax +49 (0)30 69003-104 · info@baumerhuebner.com · www.baumer.com Sitz der Gesellschaft / Registered Office: Berlin, Germany · Geschäftsführer / Managing Director: Dr. Oliver Vietze Handelsregister / Commercial Registry: AG Charlottenburg HRB 96409 ·...
  • Page 31 MB079.1 - 11115288 Baumer_TDP02-FSL-TDPZ02-FSL_II_DE-EN (15A3)
  • Page 32 Baumer Hübner GmbH P.O. Box 12 69 43 · 10609 Berlin, Germany Phone: +49 (0)30/69003-0 · Fax: +49 (0)30/69003-104 info@baumerhuebner.com · www.baumer.com/motion Version: 61254, 61356, 61359, 61804 MB079.1 - 11115288 Baumer_TDP02-FSL-TDPZ02-FSL_II_DE-EN (15A3 - 29.09.2015)
