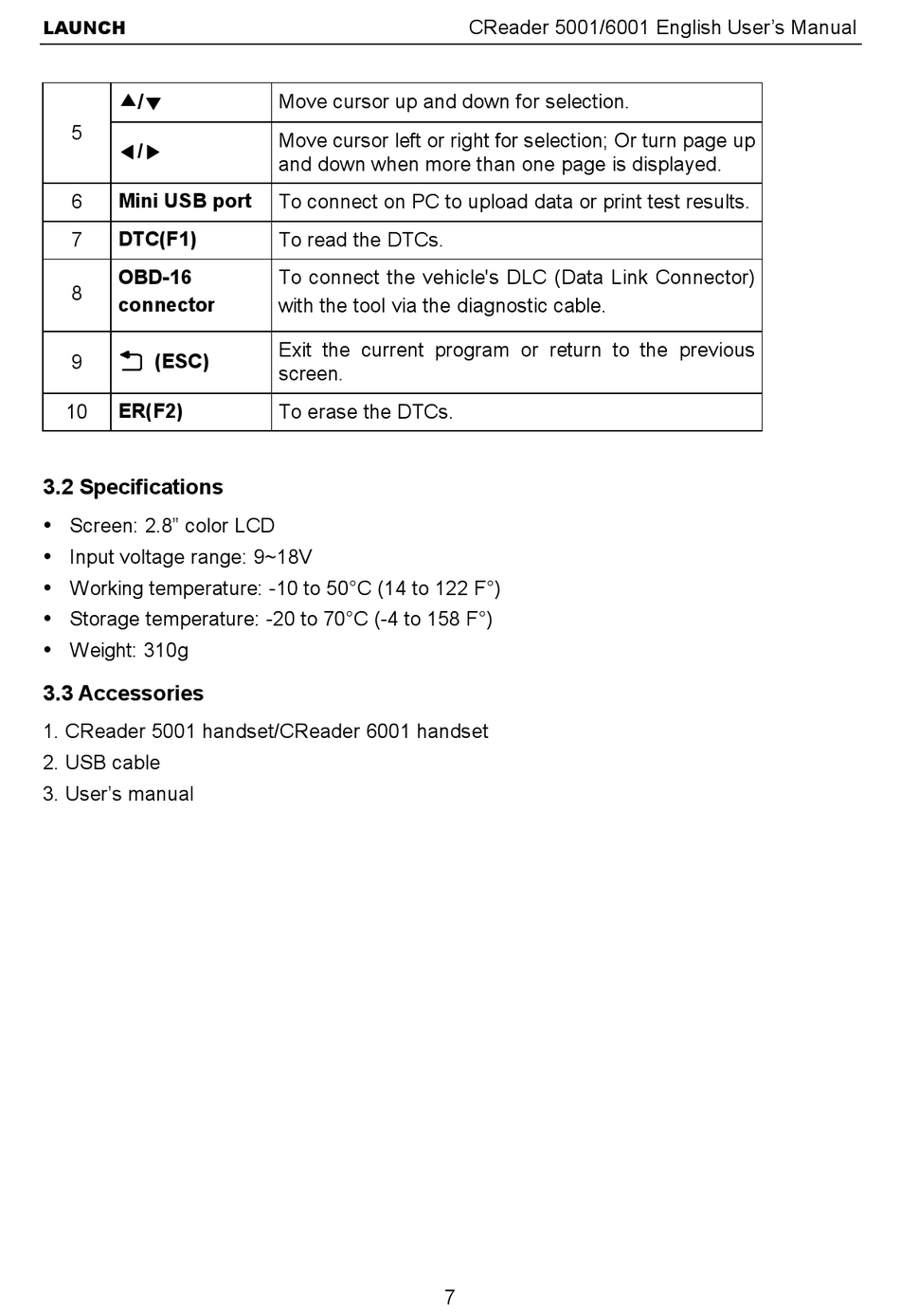

LAUNCH
/
5
/
Mini USB port
6
7
DTC(F1)
OBD-16
8
connector
(ESC)
9
ER(F2)
10
3.2 Specifications
Screen: 2.8" color LCD
Input voltage range: 9~18V
Working temperature: -10 to 50°C (14 to 122 F°)
Storage temperature: -20 to 70°C (-4 to 158 F°)
Weight: 310g
3.3 Accessories
1. CReader 5001 handset/CReader 6001 handset
2. USB cable
3. User's manual
Move cursor up and down for selection.
Move cursor left or right for selection; Or turn page up
and down when more than one page is displayed.
To connect on PC to upload data or print test results.
To read the DTCs.
To connect the vehicle's DLC (Data Link Connector)
with the tool via the diagnostic cable.
Exit the current program or return to the previous
screen.
To erase the DTCs.
7
CReader 5001/6001 English User's Manual
