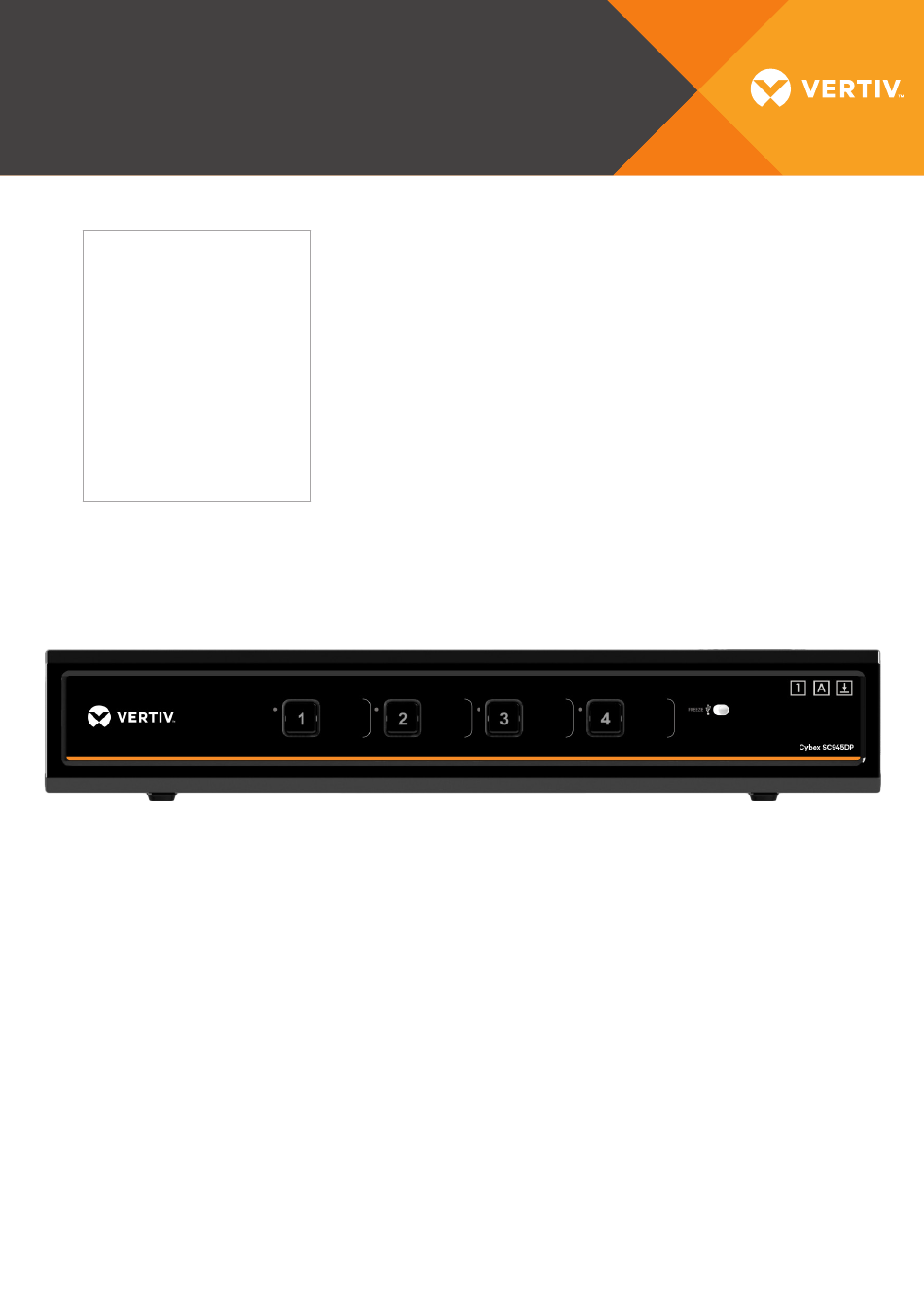

Cybex™ SC DisplayPort KVM Switches
Cybex™ SC920DP, SC920XP, SC940DP, SC945DP, SC945XP, SC985DP KVM Switches

Important Notes:

1. Anti-Tampering System: This high security
product is equipped with analways-on active
anti-tampering system. If mechanical intrusion
is detected, the product will be permanently
disabled and abnormal LED behavior will be
activated (all LEDs blinking continuously).
2. Power ON Self-Test Procedure: As the product
powers on, it performs a self-test procedure.
In case of self-test failure for any reason,
including jammed buttons, the product will be
inoperable and self-test failure will be indicated
by abnormal LED behavior.
In the above mentioned cases, please call
Technical Support and avoid using the product.
For further information, please refer to the
product guide.
 Switching between computers:
• Switch between computers by pressing
the corresponding front panel button
on the switch. The front panel button of
the selected computer will illuminate.

Supported Hardware

The KVM switches support most standard speakers, headsets and
USB or PS/2 keyboards and mice.

Environmental

• Operating temperature is 32° to 104° F (0° to 40° C).
• Storage temperature is -4° to 140° F (-20° to 60° C).
• Humidity requirements are 0-80% relative humidity,
non-condensing.
 Switching DPP between
computers:
• Once switching between computers,
the DPP devices are automatically
switched accordingly.
• When switching to a computer that is
not connected to a DPP peripheral, the
DPP port will remain mapped to the last
channel that had a USB connection.
 "Freeze DPP" Function:
• Press the Freeze DPP push button
on the front panel to lock the DPP
port to a specific computer. Freeze
DPP prevents switching the DPP
port while keyboard, video, mouse
and audio peripherals are switched
between computers when pressing the
appropriate channel push button.
Upon activation, the Freeze DPP LED
will be illuminated steady to indicate
freeze is activated.
Freeze DPP is useful for various
SC920DP, SC920XP Switch Dimensions
177 (W) x 92 (D) x 50 (H) mm, Weight: 0.64 kg
SC940DP, SC945DP, SC945XP Switch Dimensions
342 (W) x 158 (D) x 57 (H) mm, Weight: 1.95 kg
SC985DP Switch Dimensions
440 (W) x 202 (D) x 62 (H) mm, Weight: 2.9 kg
scenarios (for instance, when an
authentication device must remain
mapped to a certain computer).
The DPP association will be indicated by
the LED positioned to the left of every
channel's front panel push button. To
release DPP from freeze status, press the
Freeze button again.
HDC16045 Rev. 1.1
