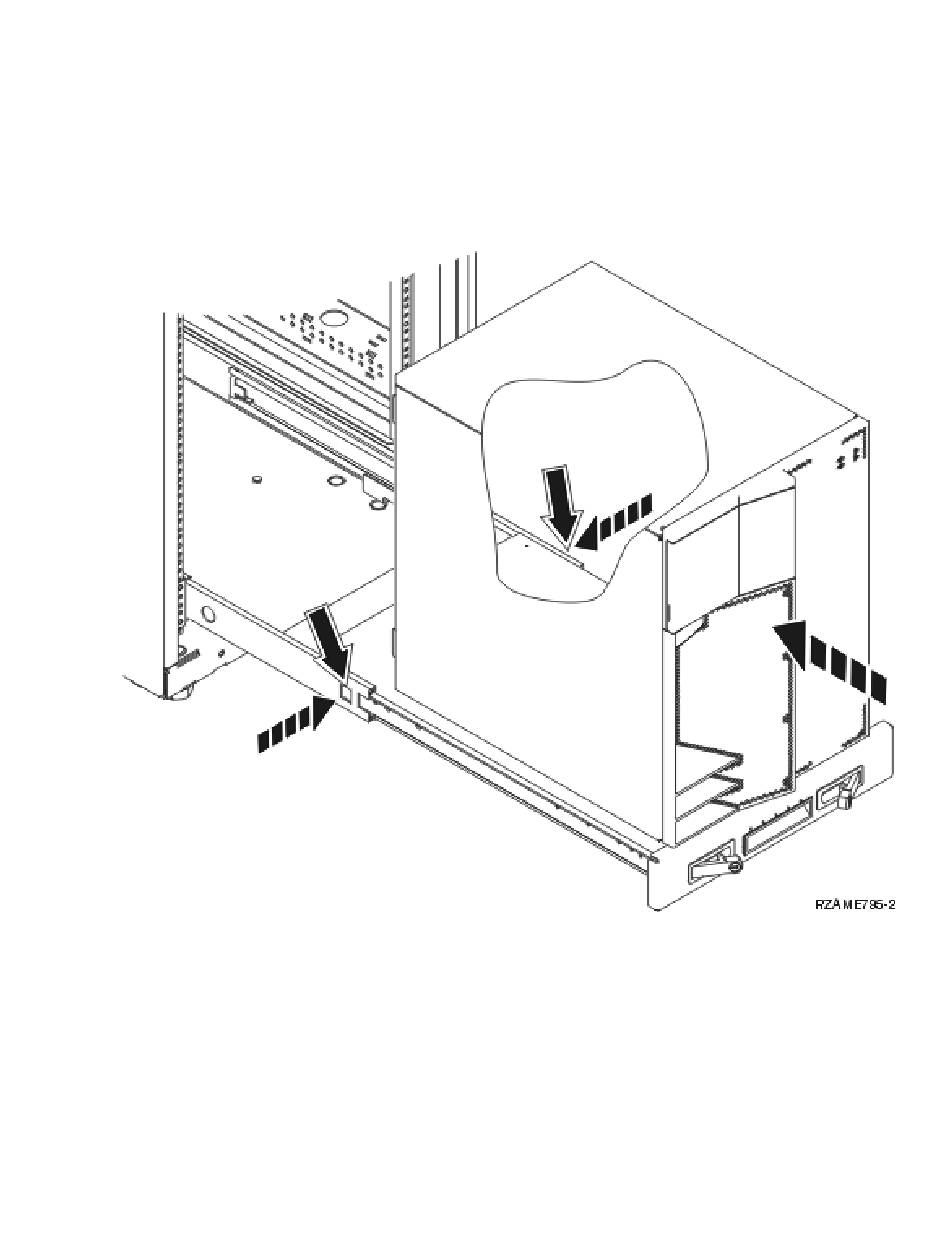

Install covers
Install the front and side covers.
__ 1. Install the side covers.
__ a. Install the thumbscrews on the back, left side cover (view from front).
__ b. Install the slotted retainer screws on the back, right side cover (view from front).
__ 2. Install the front cover.
__ 3. Push in the spring latches on the extended shelf rails and slide the shelf in.
__ 4. Close the shelf latches.
__ 5. Replace the filler panels in empty spaces.
__ 6. Install the black cover strips over the holes on each side of the unit.
Install a Model 270, 800, or 810 in a rack
31
