Ultimate Lite Astragal
Reversibility Instructions
Tools Required:
• Chop Saw
• Tape Measure
• Pencil/Marker

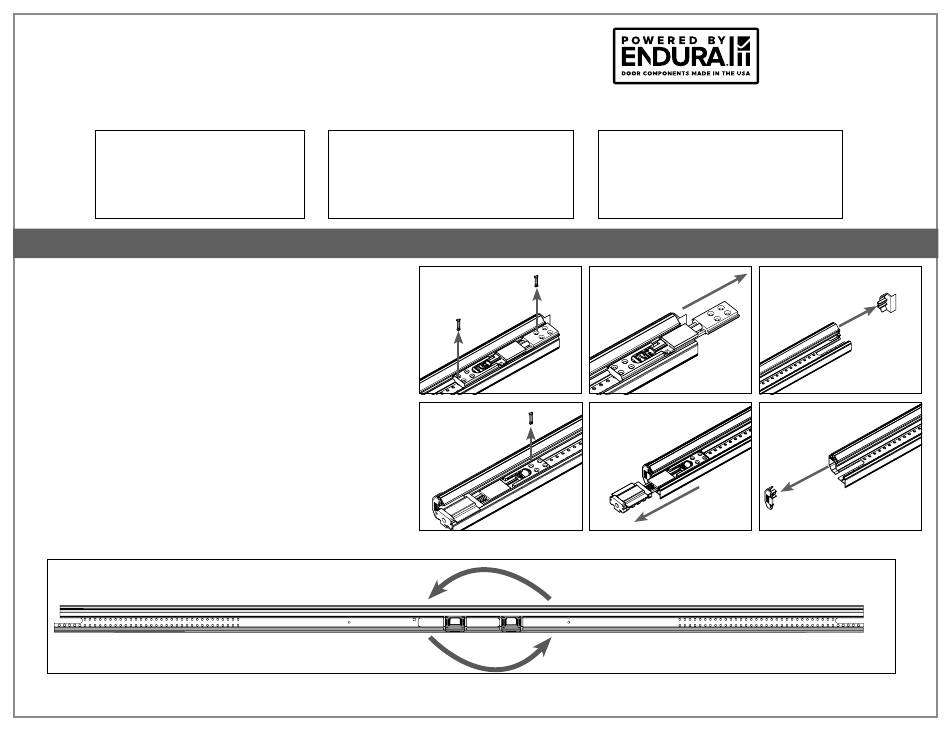

STEP 1: REVERSE THE ASTRAGAL
a. Remove upper and lower bolts: Remove the orange securing
pins (two on upper, one on lower bolt) and slide the bolts out of
the astragal. Remove the upper and lower trim caps and tail cap
(if present).
b. Reverse the astragal: Rotate the astragal so the upper and lower ends are reversed.
Kit Includes:
• Upper and Lower Trim Caps
• Tail Caps (2)
• Back Pad

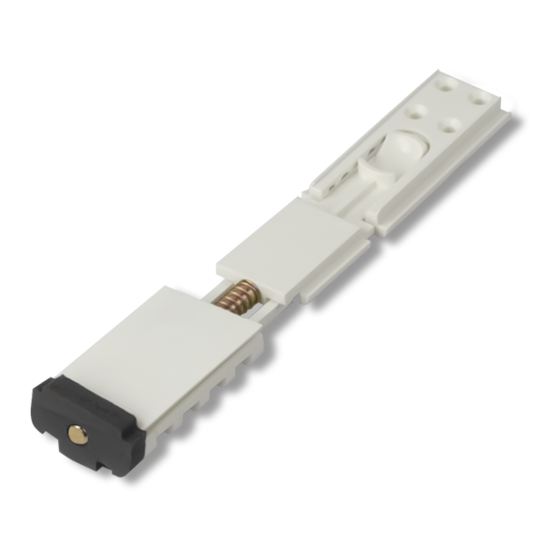

Upper Bolt
Lower Bolt
Colfax, NC 27235 | 800.334.2006
Notes:
• Reverse astragals before cutting
them down.
8817 West Market Street
www.enduraproducts.com
1
