Ultimate Trilennium
Cut Down Instructions
Tools Required:
• Pencil/Marker
• Tape Measure
• Chop Saw
Optional Parts:
Tail Cap

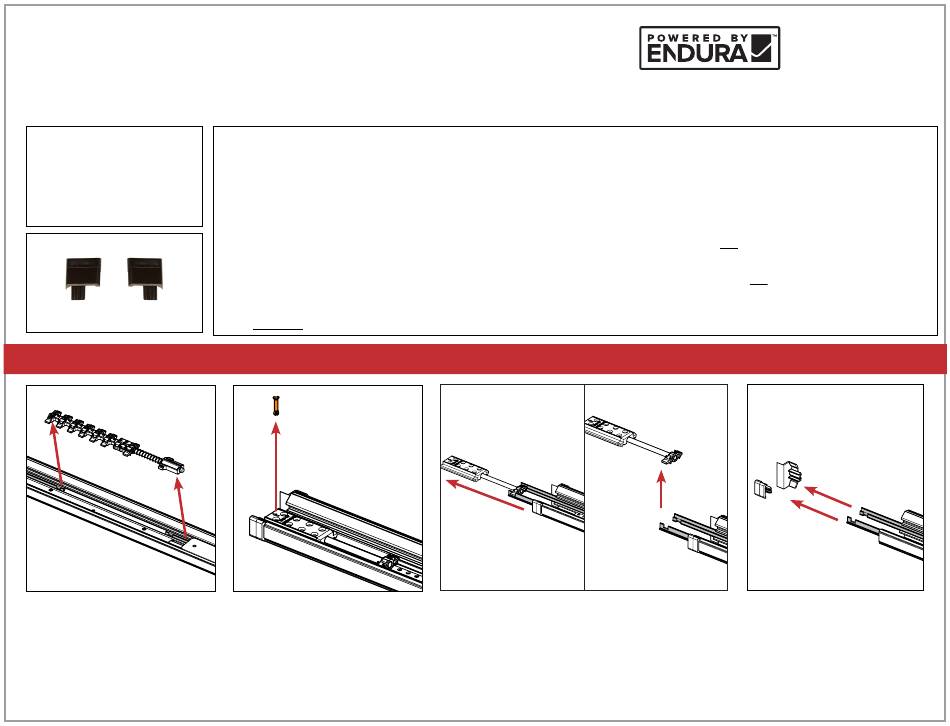

STEP 1: INITIAL PREPARATION
a. Remove the spine assembly
from the upper half of the
astragal body. Set aside for
reinstallation.
®
• All cuts should be from the top of the astragal.
• If the trim strip is present, remove from the astragal body.
• The maximum cut down length for the Ultimate Trilennium Astragal is dependent upon the handle height of the lock:
• For 6/8 Astragals, the minimum length of the astragal is the handle height + 38".
• For 7/0 Astragals, the minimum length of the astragal is the handle height + 38" OR a total length of 74" - whichever
is greater.
• For 8/0 Astragals, the minimum length of the astragal is the handle height + 48-3/8" OR a total length of 86" -
whichever is greater.
• Example: For a 6/8 Astragal with a handle height of 36", the minimum astragal length would be 74" (36" + 38" = 74")
b. Remove the orange securing
pin from the upper bolt.
Astragal
Important Notes:
c. Slide the drive rods out of the astragal body and
lift the upper bolt out of the astragal. Slide the
drive rods back into the astragal body.
8817 West Market Street
Colfax, NC 27235 | 800.334.2006
www.enduraproducts.com
d. Remove the upper trim cap,
and tail cap if present, from the
astragal body.
Rev. Date: 11.06.2017
©2017 Endura Products, Inc.
U.S. Patents: 9,404,294 and other patents pending
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Endura Ultimate Trilennium Astragal
Summary of Contents for Endura Ultimate Trilennium Astragal
- Page 1 • Tape Measure • Chop Saw • The maximum cut down length for the Ultimate Trilennium Astragal is dependent upon the handle height of the lock: • For 6/8 Astragals, the minimum length of the astragal is the handle height + 38".
- Page 2 STEP 2: CUT ASTRAGAL TO SIZE b. Round the length of the door panel (X) and the length of the astragal (Y) down to the closest half inch. Subtract the rounded length of the door panel from the rounded length of the astragal to determine your index number.
- Page 3 STEP 2 (CONT.): CUT ASTRAGAL TO SIZE 9/16" Cut Flush a. Starting at the bottom of the astragal and measuring along the narrow side, measure b. To renotch the astragal measure 9/16" from the cut end and mark (X) on the astragal. Cut the astragal flush at this location. of the astragal.
- Page 4 STEP 4: RESIZE AND REINSTALL SPINE ASSEMBLY b. Install the resized spine assembly into the astragal a. Before replacing the spine assembly, adjust the length using index number from Step 2. body, keeping the long tabs of the spine segments Example: If index number is 3-1/2", to appropriately resize the spine assembly, remove one 1/2"...
