Endura Ultimate Hurricane Astragal Instructions

Ultimate Hurricane Astragal

Cut Down Instructions

Tools Required:

• Pencil/Marker

• Tape Measure

• Chop Saw

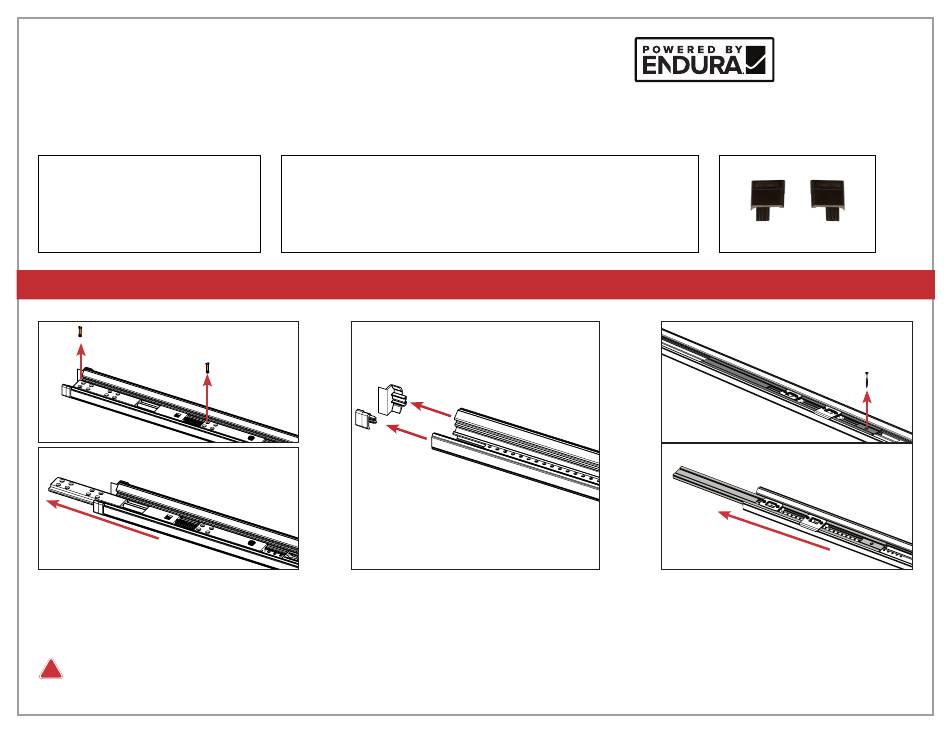

STEP 1: INITIAL PREPARATION

a. Remove the two orange securing pins on the

upper bolt. Slide the bolt out of the astragal

and remove.

Ensure the upper bolt is in the unlocked

position before removing.

Notes:

• All cuts should be made from the top of the astragal.

• Ultimate Hurricane Astragals can be cut down a maximum of 7".

b. Remove the upper trim cap, and tail cap if

present, and set aside.
