Ultimate Hurricane Astragal

Reversibility Instructions

Tools Required:

• Chop Saw

• Tape Measure

• Pencil/Marker

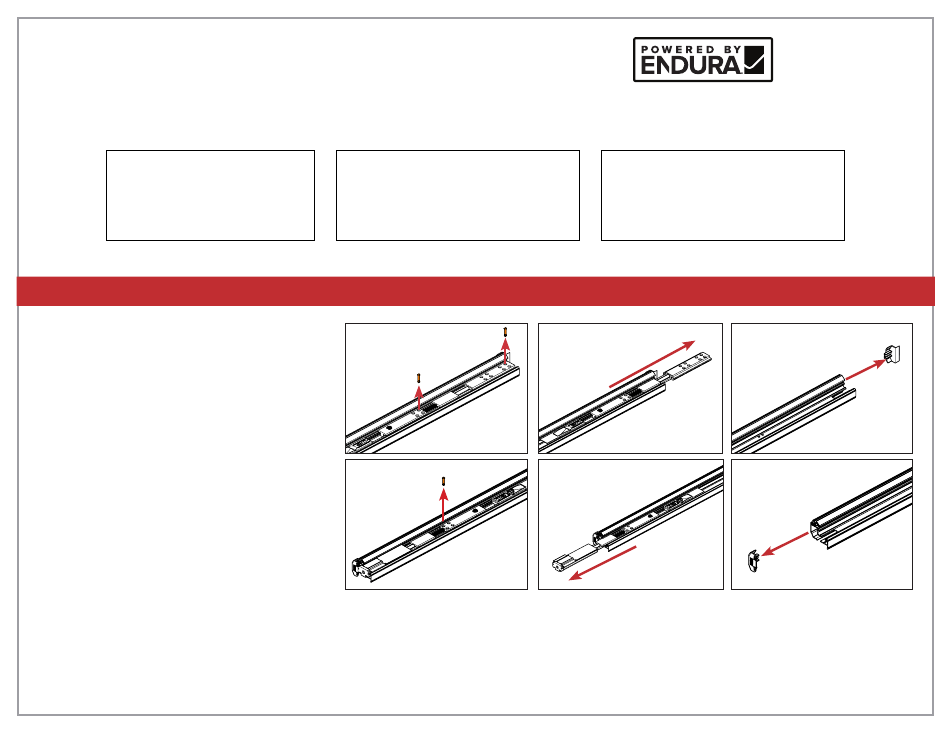

STEP 1: REVERSE THE ASTRAGAL

a. Remove astragal components: Remove the two

orange securing pins from the upper bolt sleeve

and slide the bolt out of the astragal. Remove upper

trim cap and tail cap if present. Remove the orange

securing pin from the lower bolt and slide the bolt

out of the astragal. Remove the lower trim cap.

Kit Includes:

• Upper and Lower Trim Caps

• Tail Caps (2)

Upper Bolt

Lower Bolt

Colfax, NC 27235 | 800.334.2006

Notes:

• Reverse astragals before cutting

them down.

Innovation protected under patents and patents pending in

U.S. and Canada. See www.EnduraPatents.com.

8817 West Market Street

www.enduraproducts.com

Rev. Date: 04.11.2018

Need help?

Do you have a question about the Ultimate Hurricane Astragal and is the answer not in the manual?

Page 1 Ultimate Hurricane Astragal 8817 West Market Street Colfax, NC 27235 | 800.334.2006 www.enduraproducts.com Reversibility Instructions Tools Required: Kit Includes: Notes: • Chop Saw • Upper and Lower Trim Caps • Reverse astragals before cutting • Tape Measure • Tail Caps (2) them down.
Page 2 If you ordered a reversible astragal, you will not need to perform this step, as this end of the astragal will already be flush. a. Using a chop saw, cut the narrow side of the astragal, so it is flush with the wide side. Ultimate Hurricane Astragal Reversibility Instructions...
Page 3 If the holes on the bolt do not align with the holes in the astragal body, adjust the location of the bolt sleeve and/or the push button housing to align the holes and then insert the orange securing pins. The bolt sleeve may be up to 1/4" inset from the end of the astragal. Ultimate Hurricane Astragal Reversibility Instructions...
Page 4 If holes do not weatherstrip. back the finger notch to retract it. align, see gray box on Page 3 to align holes. Ultimate Hurricane Astragal Reversibility Instructions...
Page 5 Reinstall the trim strips into the astragal. The wider trim strip with the larger space between the notch and edge will be for the top of the astragal. The narrow trim strip will be installed into the strike support. Ultimate Hurricane Astragal Reversibility Instructions...
