Endura Ultimate Push Button Astragal Instructions

Ultimate Push Button Astragal

Reversibility Instructions

Tools Required:

• Chop Saw

• Tape Measure

• Pencil/Marker

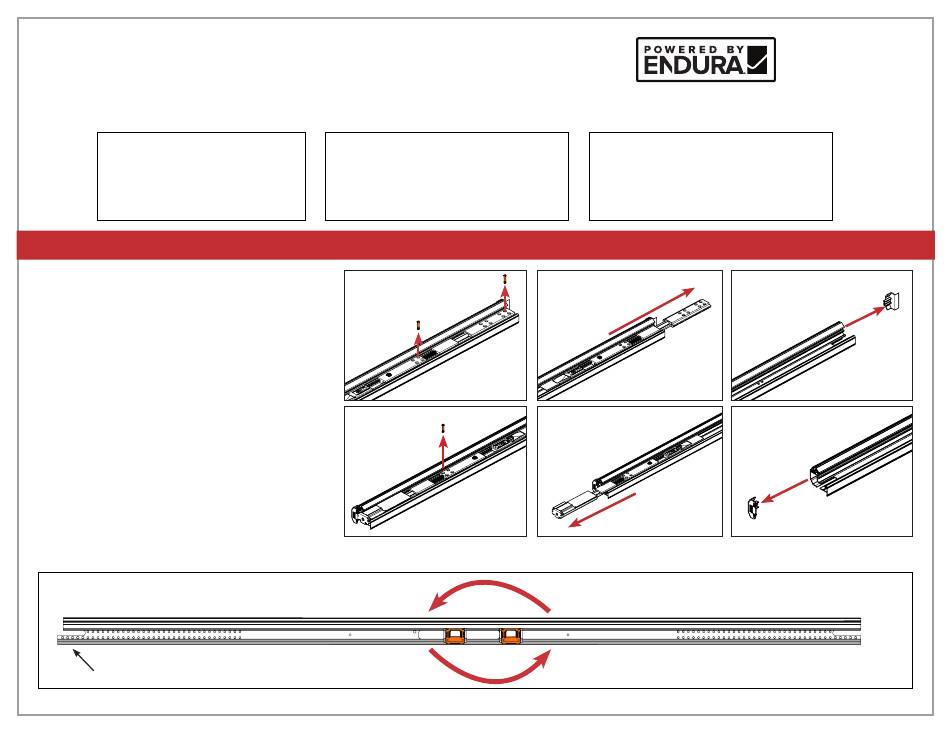

STEP 1: REVERSE THE ASTRAGAL

a. Remove astragal components: Remove the two

orange securing pins from the upper bolt sleeve

and slide the bolt out of the astragal. Remove upper

trim cap and tail cap if present. Remove the orange

securing pin from the lower bolt and slide the bolt

out of the astragal. Remove the lower trim cap.

b. Reverse the astragal: Rotate the astragal so the upper and lower ends are reversed.

On reversible astragals,

this end will be flush.

Kit Includes:

• Upper and Lower Trim Caps

• Tail Caps (2)

• Back Pad

Upper Bolt

Lower Bolt

Notes:

• Reverse astragals before cutting

them down.
