Endura Ultimate Slide Bolt Astragal Instructions

Ultimate Slide Bolt Astragal

Reversibility Instructions

Tools Required:

• Chop Saw

• Tape Measure

• Pencil/Marker

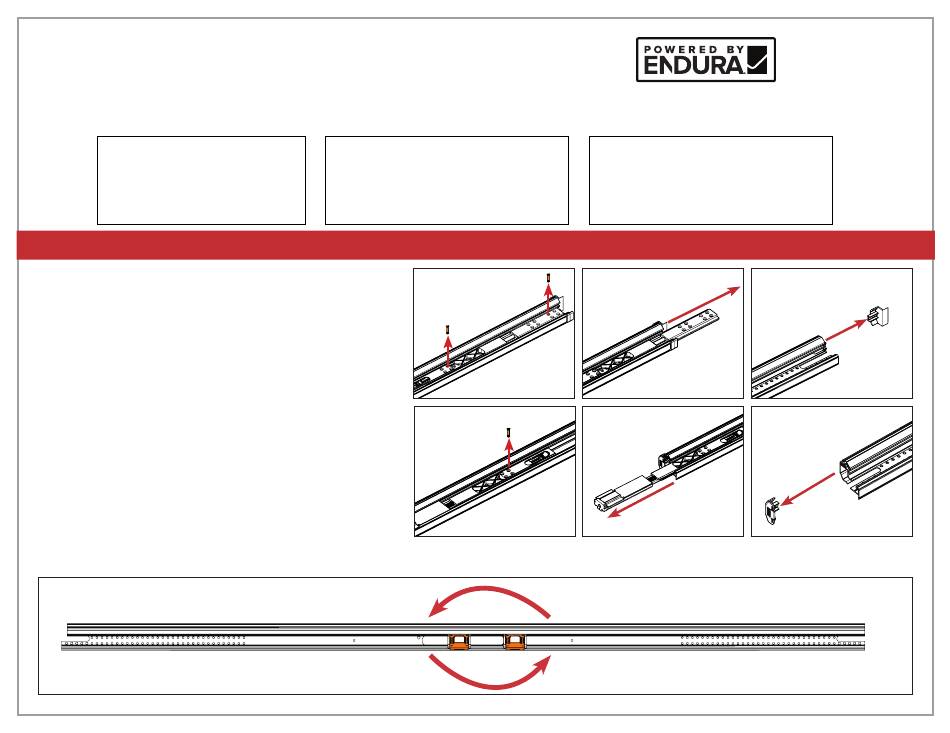

STEP 1: REVERSE THE ASTRAGAL

a. Remove upper and lower bolts: Remove the orange

securing pins (two on upper, one on lower bolt) and slide the

bolts out of the astragal. Remove the upper and lower trim

caps and tail cap (if present).

b. Reverse the astragal: Rotate the astragal so the upper and lower ends are reversed.

Kit Includes:

• Upper and Lower Trim Caps

• Tail Caps (2)

• Back Pad

Upper Bolt

Lower Bolt

Notes:

• Reverse astragals before cutting

them down.
