Ultimate Flip Lever
Cut Down Instructions
Tools Required:
•
Pencil/Marker
•
Tape Measure
•
Chop Saw
•
Flathead Screwdriver
•
Phillips Screwdriver

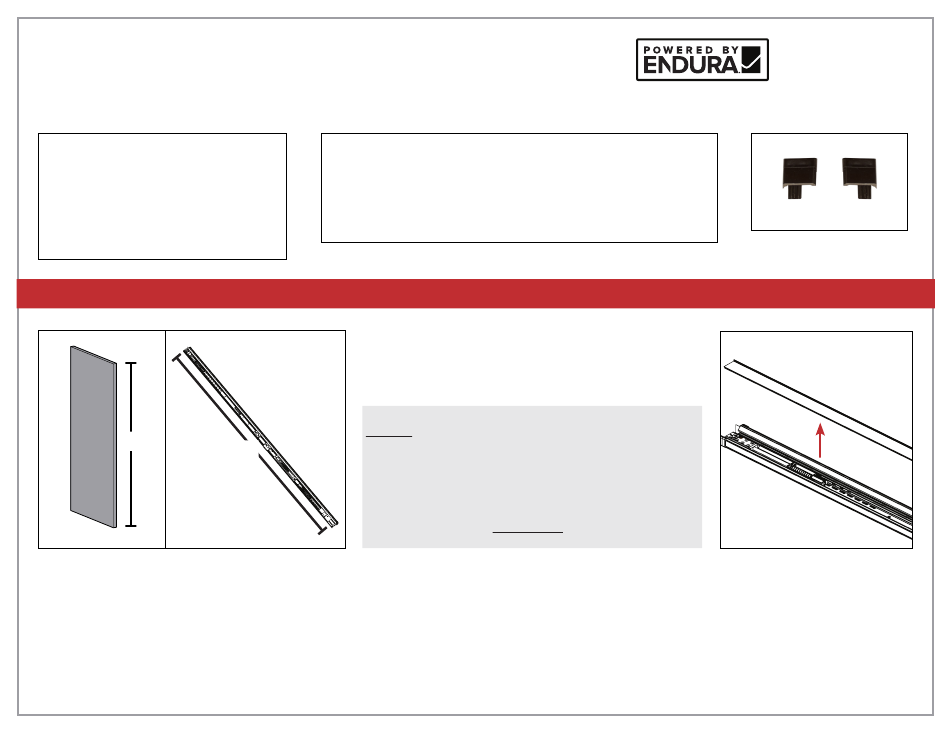

STEP 1: INITIAL PREPARATION
X
a. Measure the length of the door panel (X) and the length of
the astragal (Y) on the narrow edge.
Astragal
™
•
All cuts should be from the top of the astragal.
•
Ultimate Flip Lever Astragals can be cut down a maximum of 7".
•
Bolts should be in the retracted position before beginning.
b. Round the length of the door panel (X) and the length of the
astragal (Y) down to the closest inch. Subtract the rounded
length of the door panel from the rounded length of the astragal
to determine your index number.
Example:
To determine index number:
Y
• If the length of the astragal is 79-1/4", round it down to
79".
• If the length of the door panel is 73-3/4", round it down to
73".
• 79" - 73" = 6 is the index number.
Notes:
8817 West Market Street
Colfax, NC 27235 | 800.334.2006
www.enduraproducts.com
Optional Parts:
Tail Cap
c. If present, remove the trim strip
from the astragal body.
Rev. Date: 05.07.2018
©2017 Endura Products, Inc.
Innovation protected under patents and patents pending in
U.S. and Canada. See www.EnduraPatents.com.
