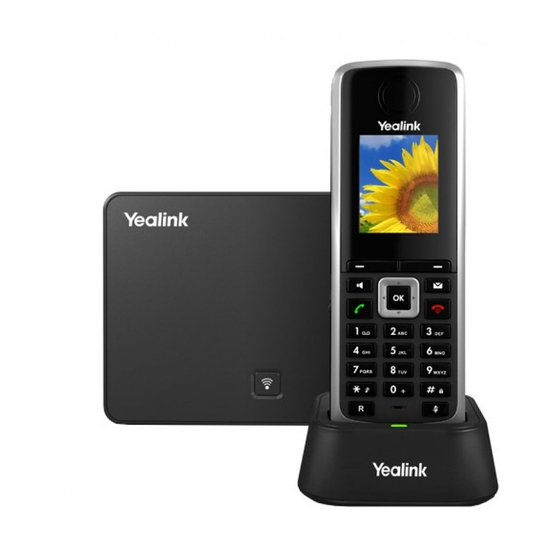

Yealink W52P Configuring
Ip dect phone
Hide thumbs
Also See for W52P:
- Quick start manual ,
- User manual (116 pages) ,
- Configuration manual (102 pages)
Related Manuals for Yealink W52P
Summary of Contents for Yealink W52P
- Page 1 Yealink W52P 1300 0 JINGL 1 3 0 0 5 4 6 4 5 Head Office: Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia www.jingl.com.au...
- Page 2 IP address, subnet mask, gateway address, primary DNS address and secondary DNS address for the base station manually. The Handset in the W52P package is pre-registered to the base station For the purpose of this document we will accept that DHCP is functional and network settings are...
- Page 3 Using the Handset obtain and record the IP Address. You will require the IP Address inorder to login to Phone Admin Web Menu to configure Auto Provisioning of Phone. On the Handset Press the OK button; Select “i” icon and press OK Select System Status and press OK Handset screen will present IP address and MAC address 1300 0 JINGL...
- Page 4 Logon to the jingl web portal, using specific customer domain URL https://’customer’.jingl.com.au Enter your User Name and Password Presented with Dashboard 1300 0 JINGL 1 3 0 0 5 4 6 4 5 Head Office: Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia www.jingl.com.au...
- Page 5 Select and click the settings menu Click on “Add new” In general tab, choose and enter extension number and a display name 1300 0 JINGL 1 3 0 0 5 4 6 4 5 Head Office: Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia www.jingl.com.au...
- Page 6 Select and expand Provisioning tab. Enter the MAC address of the phone Select and expand Hardware Type. Select the phone model 1300 0 JINGL 1 3 0 0 5 4 6 4 5 Head Office: Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia www.jingl.com.au...
- Page 7 Click Add to finish your extension configuration. Use a compatible browser and login to Phone Web Admin Menu using previous recorded phone IP address. Log in with default Username: admin and default Password: admin. Then click Confirm 1300 0 JINGL 1 3 0 0 5 4 6 4 5 Head Office:...
- Page 8 Select Phone, Then Select Auto Provision 1300 0 JINGL 1 3 0 0 5 4 6 4 5 Head Office: Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia www.jingl.com.au...
- Page 9 In the ‘Provisioning Server’ Tab – Type: “http://tftp.jingl.com.au” Select Confirm to save Provisioning Server details Then Select and click ‘Autoprovision Now’ Tab 1300 0 JINGL 1 3 0 0 5 4 6 4 5 Head Office: Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia www.jingl.com.au...
- Page 10 11. Click OK to acknowledge to autoprovision 12. Phone will automatically restart for the new settings to take place Will download and configure all settings from the provisioning server as well as any necessary firmware files. 1300 0 JINGL 1 3 0 0 5 4 6 4 5 Head Office: Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia...
