Vulcan-Hart VCRG-M Series Installation Instructions

Model VCRG48-M

SPECIFICATIONS

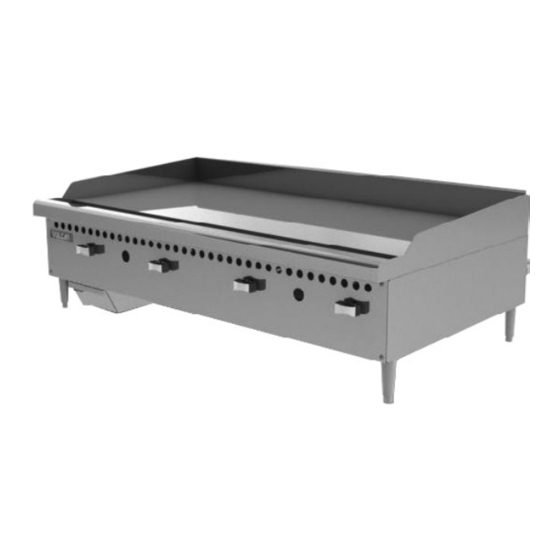

Low profile gas griddle Vulcan Model No.________. Stainless
steel front, sides and front top ledge. Fully welded stainless
and aluminized steel body frame. 12
legs. 1" thick polished steel griddle plate welded to stainless
steel back and tapered side splashes. One 25,000 BTU/hr. "U"
shaped aluminized steel burner and infinite heat control for
each 12" of griddle width. 4
rear gas connection and convertible gas pressure regulator for
LP service.
Exterior Dimensions:
_____" w x 27" d x 16" h on 4" legs.
CSA design certified. NSF listed.
P.O. Box 696 Louisville, KY 40201
■
F-38309 (04/10)
G R I D D L E S
VCRG-M RESTAURANT SERIES
⁄ " cooking height on 4"
1
2
⁄ quart capacity grease can.
1
2
a division of ITW Food Equipment Group LLC
Toll-free: 1-800-814-2028
■
Chef's Corner
Item #
& B R O I L E R S
GAS GRIDDLES
VCRG24-M 24" w x 20
VCRG36-M
36" w x 20
VCRG48-M
48" w x 20

STANDARD FEATURES

1" thick polished steel griddle plate welded to 3
■
stainless steel back, tapered side splashes and stainless
steel grease trough.
Fully welded stainless and aluminized steel chassis frame.
■
12 ⁄ " cooking height on 4" adjustable legs.
1
■
2
One 25,000 BTU/hr. "U" shaped aluminized steel burner
■
for every 12" of griddle width.
One infinite heat control valve per burner.
■
Standing pilot ignition system.
■
High capacity 4 ⁄
1
■
⁄ " rear gas connection and convertible gas pressure
3
■
4
regulator for LP service.
Constructed standard for natural gas service. LP conver-
■
sion kit supplied with unit.
One year limited parts and labor warranty.
■
⁄ "
3
4
Local: 502-778-2791
■
C.S.I. Section 11420
⁄ " d griddle plate
1
2
⁄ " d griddle plate
1
2
⁄ " d griddle plate
1
2
quart capacity grease can.
2
Quote & Order Fax: 1-800-444-0602
■
⁄ "
1
4
