Assembly Instructions
Before you
Start, here
are some
helpful
advices.
Revision number 1/1

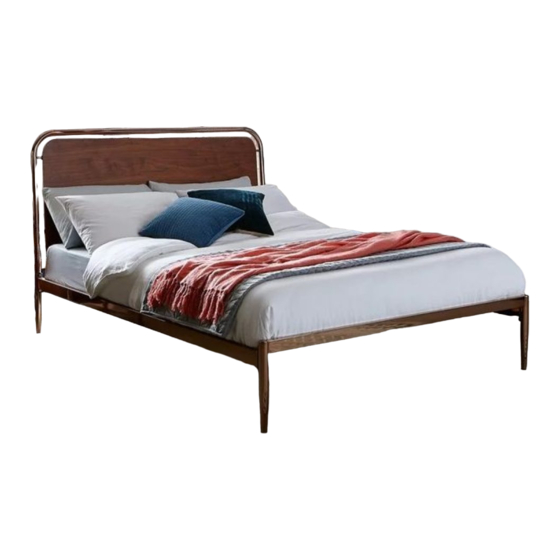

Calvert Bed King
1. We suggest you spend a short time reading through this leaflet and then follow
the simple step by step instructions.
2. If you follow the instructions carefully the end result should be worth the effort.
3. Do not discard any of the packaging until you have checked that you
have all the parts and the pack of fittings.
4. Assemble this product on a carpet.
5. To ensure an easier assembly, we strongly advise that all fittings are only
finger tightened during initial assembly. Only upon completion of the assembly
should all fixing points be fully tightened.
6. We recommend a periodic check on all fixing points to make sure they remain
fully tightened.
7. Keep glue and fittings out of children's reach.
In the unlikely event that this product has missing or damaged parts, please call
0344 292 0000 to obtain spares
spare
015-00134(Solid slats)
015-00079(Sprung slats)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DREAMS Calvert Bed King
Summary of Contents for DREAMS Calvert Bed King
- Page 1 015-00134(Solid slats) Calvert Bed King 015-00079(Sprung slats) Assembly Instructions Before you 1. We suggest you spend a short time reading through this leaflet and then follow the simple step by step instructions. Start, here 2. If you follow the instructions carefully the end result should be worth the effort.
- Page 2 PARTS Fittings M6× 20mm x 8pcs M6× 35mm x 6pcs M6 × 6pcs Metal Washer x 14 pcs Plastic Washer x 8 pcs NO. PART LIST (1) Headboard Allen key × 2pcs (2) Footboard (3) Side Rails (4) Support Leg Screw x50mmx 1pcs Revision number 1/1...
- Page 3 ASSEMBLY STEP1 (1) Use bolt A, washer D and plastic washer E to fix the side rail (3) onto headboard (1) and footboard (2) by using Allen Key (F). Revision number 1/1...
- Page 4 Both slats on "step 2" and "step 3" can be assembled to the bedstead. you can make a choice between the two slats. OPTION"A": DREAMS FIXED WOOD SLATS （ 1）Carefully locate the slats onto the unit,as step 2: Use bolt (B) ,washer D and...
- Page 5 ASSEMBLY STEP 3 OPTION"B": DREAMS SPRUNG SLATS (1) Use the bolt to fix support onto slat frame. Please note that these bolts are to be found inside the slat frame box. (2) Carefully locate the slats onto the unit. (3) Use bolt (B) and JCN nut (C) to fix the unit using Allen Key (F).
