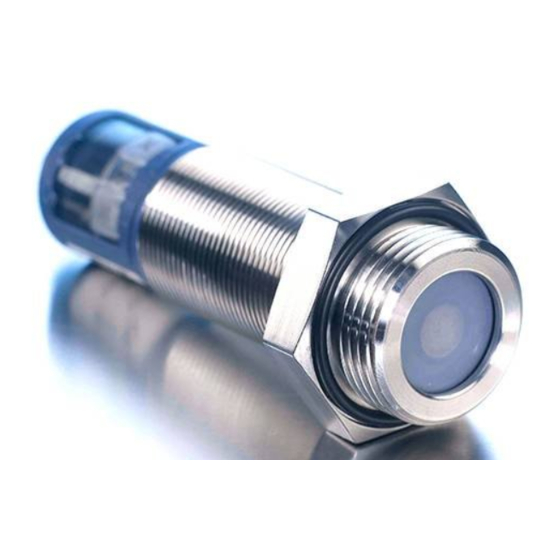

Product description

The crm+sensor with one analogue out-
put and one switched output measures
the distance to an object within the de-
tection zone contactless. A signal propor-
tional to distance is created and the
switched output is set according to the
adjusted detect distance.
The ultrasonic transducer surface of the
crm+sensors is laminated with a PEEK
film. The transducer itself is sealed
against the housing by a PTFE joint ring.
This composition ensures a high resitance
against many aggressive substances.
The sensor automatically detects the load
put to the analogue output and switches
to current output or voltage output re-
spectively.
Operating manual
All settings are done with two push-but-
crm+ Ultrasonic Sensors with
tons
one analogue output and one
(TouchControl).
Light emitting diodes (three-colour LEDs)
switched output
indicate all operation conditions.
crm+25/DIU/TC/E
Choosing between rising and falling out-
put characteristic as well as output func-
crm+35/DIU/TC/E
tion NOC and NCC is possible.
crm+130/DIU/TC/E
The sensors are adjustable manually using
crm+340/DIU/TC/E the numerical LED-display or may be trai-
ned using Teach-in processes.
crm+600/DIU/TC/E
Set sensor parameters alternatively numerically using LED-display...
Start here
T1 + T2
T1
T1 + T2
T1
T1 + T2
For single detect
point press T2
T2
until »- - -« is
displayed
T1 + T2
T1
T1 + T2
Set switched output
Useful additional functions are set in the
Add-on-menu.
Using the LinkControl adapter (optional
accessory) all TouchControl and additio-
nal sensor parameter settings may be
made by a Windows-Software.

Safety Notes

Read the operating instructions prior to

start-up.

Connection, installation and adjustment
works may only be carried out by expert
.
personnel
No safety component in accordance with
the EU Machine Directive.
The crm+sensors indicate a blind zone, in
which the distance cannot be measured. The
operating range indicates the distance of the
sensor that can be applied with normal re-
and a three-digit LED-display
flectors with sufficient function reserve.
When using good reflectors, such as a calm
water surface, the sensor can also be used up
to its maximum range. Objects that strongly
absorb (e.g. plastic foam) or diffusely reflect
sound (e.g. pebble stones) can also reduce
the defined operating range.
Press T1 and T2 simultaneously for about
3 s until welcome message has passed
T2
Set detect distance in
T2
mm or cm
For window mode
operation set far
T2
T1
detect point in
mm or cm
Choose » « for NCC or
T2
» « for NOC
T2

Synchronisation

If the assembly distances shown in Fig.1 for
two or more sensors are exceeded the inte-
grated synchronisation should be used. Con-
nect Sync/Com-channels (pin 5 at the units re-
ceptable) of all sensors (10 maximum).
≥0.35 m
≥0.40 m
≥1.10 m
≥2.00 m
≥4.00 m
Fig. 1: Assembly distances, indicating syn-
chronisation/multiplex

Multiplex mode

The Add-on-menu allows to assign an indivi-
dual address »01« to »10« to each sensor
connected via the Sync/Com-channel (Pin5).
The sensors perform the ultrasonic measure-
ment sequentially from low to high address.
Therefore any influence between the sensors
is rejected.
The address »00« is reserved to synchronisa-
tion mode and deactivates the multiplex
T1
T1 + T2
T1
T1 + T2
T1
T1 + T2
T1
T1 + T2
Set analogue output
T1
T1 + T2
Ready
mode. (To use synchronised mode all sensors
must be set to address »00«.)

Assembly instructions

Assemble the sensor at the installation lo-
cation.
Plug in the connector cable to the M 12
connector.
≥2.50 m
≥2.50 m 2 1
≥8.00 m
3 5 4
colour
≥18.00 m
1 +U brown
≥30.00 m B
3 -U blue
B
4 D black
2 I/U white
5 Sync/Com. grey
Fig. 2: Pin assignment with view onto sensor
plug and colour coding of the
microsonic connection cable
Start-up
crm+ sensors are delivered factory made with
the following settings:
Rising analogue characteristic
Window margins for the analogue output
set to blind zone and operating range
Switched output on NOC
T2
Set sensor-close window
T2
margin in mm or cm
Set sensor-distant window
T2
margin in mm or cm
Choose rising ( ) / falling ( )
T2
output characteritic curve
Detecting distance at operating range
Measurement range set to maximum range
Set the parameters of the sensor manually or
use the Teach-in procedure to adjust the de-
tect points.
measuring range
c m m m %
3-digit
LED-display
LED D1 and D2
Push-buttons T1 and T2
T 1 D 1 D 2 T 2
Fig. 3: TouchControl

Operation

crm+sensors work maintenance free. Small
amounts of dirt on the surface do not influ-
ence function. Thick layers of dirt and caked-
on dirt affect sensor function and therefore
must be removed.
Note
As a result of the design the assembly of
PEEK film and PTFE joint ring is not gas-
proof.
The chemical resistance has to be tested
experimentally if necessary.
crm+sensors have internal temperature
compensation. Because the sensors heat
up on their own, the temperature com-
pensation reaches its optimum working
point after approx. 30 minutes of opera-
tion.
If an object is within the set window mar-
gins of the analogue output, then LED D1
lights up green, if the object is outsite the
window margins, then LED D1 lights up
red.
The load put to the analogue output is
detected automatically when turning
supply voltage on.
During normal mode operation, a yellow
LED D2 signals that the switched output
has connected.
During normal mode operation, the mea-
sured distance value is displayed on the
LED-indicator in mm (up to 999 mm) or
cm (from 100 cm). Scale switches auto-
matically and is indicated by a point on
top of the digits. Alternatively a percent-
age scale may be set in the add-on menu.
In this connection 0% and 100% corre-
spond to the set window margins of the
analogue output.
In the »Two-way reflective barrier« ope-
rating mode, the object has to be within
the range of 0-85 % of the set distance.
During Teach-in mode, the hysteresis
loops are set back to factory settings.
If no objects are placed within the detec-
tion zone the LED-indicator shows »- - -«.

Show parameters

Tapping push-button T1 shortly during nor-
mal mode operation shows »PAr« on the
LED-display. Each time you tap push-button
T1 the actual settings of the analogue output
and the switched output are shown.
