Microsonic mic+25/IU/TC Instruction Manual

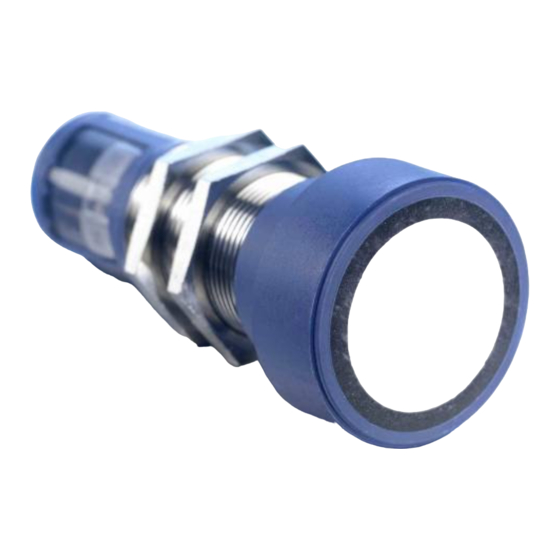

Product description
The mic+ sensor with one analogue out-
put measures the distance to an object
within the detection zone contactless. A
signal proportional to distance is created
according
margings of the analogue characteristic
curve.
The sensor automatically detects the load
put to the analogue output and switches
to current output or voltage output re-
spectively.
All settings are done with two push-but-
tons
(TouchControl).
Light emitting diodes (three-colour LEDs)
indicate all operation conditions.
Choosing between rising and falling out-
put characteristic is possible.
Instruction manual
The sensors are adjustable manually using
mic+ Ultrasonic Sensors with
the numerical LED-display or may be trai-
one analogue output
ned using Teach-in processes.
Useful additional functions are set in the
Add-on-menu.
mic+25/IU/TC
Using the LinkControl adapter (optional
mic+35/IU/TC
accessory) all TouchControl and additio-
mic+130/IU/TC nal sensor parameter settings may be
made by a Windows-Software.
mic+340/IU/TC
mic+600/IU/TC
Set sensor parameters alternatively numerically using LED-display...
Important instructions for assembly and
application
All employee and plant safety-relevant
measures must be taken prior to assembly,
start-up, or maintenance work (see operation
to the adjusted window manual for the entire plant and the operator
instruction of the plant).
The sensors are not considered as safety
equipment and may not be used to ensure
human or machine safety!
The mic+ sensors indicate a blind zone, in
which the distance cannot be measured. The
and a three-digit LED-display
operating range indicates the distance of the
sensor that can be applied with normal re-
flectors with sufficient function reserve.
When using good reflectors, such as a calm
water surface, the sensor can also be used up
to its maximum range. Objects that strongly
absorb (e.g. plastic foam) or diffusely reflect
sound (e.g. pebble stones) can also reduce
the defined operating range.
Synchronisation
If the assembly distances shown in Fig.1 for
two or more sensors are exceeded the inte-
grated synchronisation should be used. Con-
nect Sync/Com-channels (pin 5 at the units re-
ceptable) of all sensors (10 maximum).
Start here
T1
T1
T1
T1
Set analogue output
T2
0.35 m
0.40 m
1.10 m
2.00 m
4.00 m
Fig. 1: Assembly distances, indicating syn-
chronisation/multiplex
Multiplex mode
The Add-on-menu allows to assign an indivi-
dual address »01« to »10« to each sensor
connected via the Sync/Com-channel (Pin5).
The sensors perform the ultrasonic measure-
ment sequentially from low to high address.
Therefore any influence between the sensors
is rejected.
The address »00« is reserved to synchronisa-
tion mode and deactivates the multiplex
mode. (To use synchronised mode all sensors
must be set to address »00«.)
T1 + T2
Press T1 and T2 simultaneously for about
3 s until welcome message has passed
T2
T1 + T2
Set sensor-close window
T2
margin in mm or cm
T1 + T2
Set sensor-distant window
T2
margin in mm or cm
T1 + T2
Choose rising ( ) / falling (
T2
output characteristic curve
T1 + T2
T1
T1 + T2
Ready
Assembly instructions
Assemble the sensor at the installation lo-
cation.
Plug in the connector cable to the M 12
2.50 m
connector
2.50 m
8.00 m
2 1
18.00 m
3 5 4
colour
30.00 m
1 +U brown
B
3 -U blue
B
4 - black
2 I/U white
5 Sync/Com. grey
Fig. 2: Pin assignment with view onto sen-
sor plug and colour coding of the
microsonic connection cable
Start-up
mic+ sensors are delivered factory made with
the following settings:
Rising analogue characteristic
Window margins for the analogue output
set to blind zone and operating range
Measurement range set to maximum range
)
Set the parameters of the sensor manually or
use the Teach-in procedure to adjust the de-
tect points.
measuring range
c m m m %
3-digit
LED-display
LED D1 and D2
Push-buttons T1 and T2
T 1 D 1 D 2 T 2
Fig. 3: TouchControl
Operation
mic+ sensors work maintenance free. Small
amounts of dirt on the surface do not influ-
ence function. Thick layers of dirt and caked-
on dirt affect sensor function and therefore
must be removed.
Note
mic+sensors have internal temperature
compensation. Because the sensors heat
up on their own, the temperature com-
pensation reaches its optimum working
point after approx. 30 minutes of opera-
tion.
If an object is within the set window mar-
gins of the analogue output, then LED D1
lights up green, if the object is outside
the window margins, then LED D1 lights
up red.
The load put to the analogue output is
detected automatically when turning
supply voltage on.
During normal mode operation, the mea-
sured distance value is displayed on the
LED-indicator in mm (up to 999 mm) or
cm (from 100 cm). Scale switches auto-
matically and is indicated by a point on
top of the digits. Alternatively a percent-
age scale may be set in the add-on menu.
In this connection 0% and 100% corre-
spond to the set window margins of the
analogue output.
If no objects are placed within the detec-
tion zone the LED-indicator shows »- - -«.
If no push-buttons are pressed for 20 se-
conds during parameter setting mode the
made changes are stored and the sensor
returns to normal mode operation.
Show parameters
Tapping push-button T1 shortly during nor-
mal mode operation shows »PAr« on the
LED-display. Each time you tap push-button
T1 the actual settings of the analogue output
are shown.
2004/108/EG
