Mounting

Mounting
12

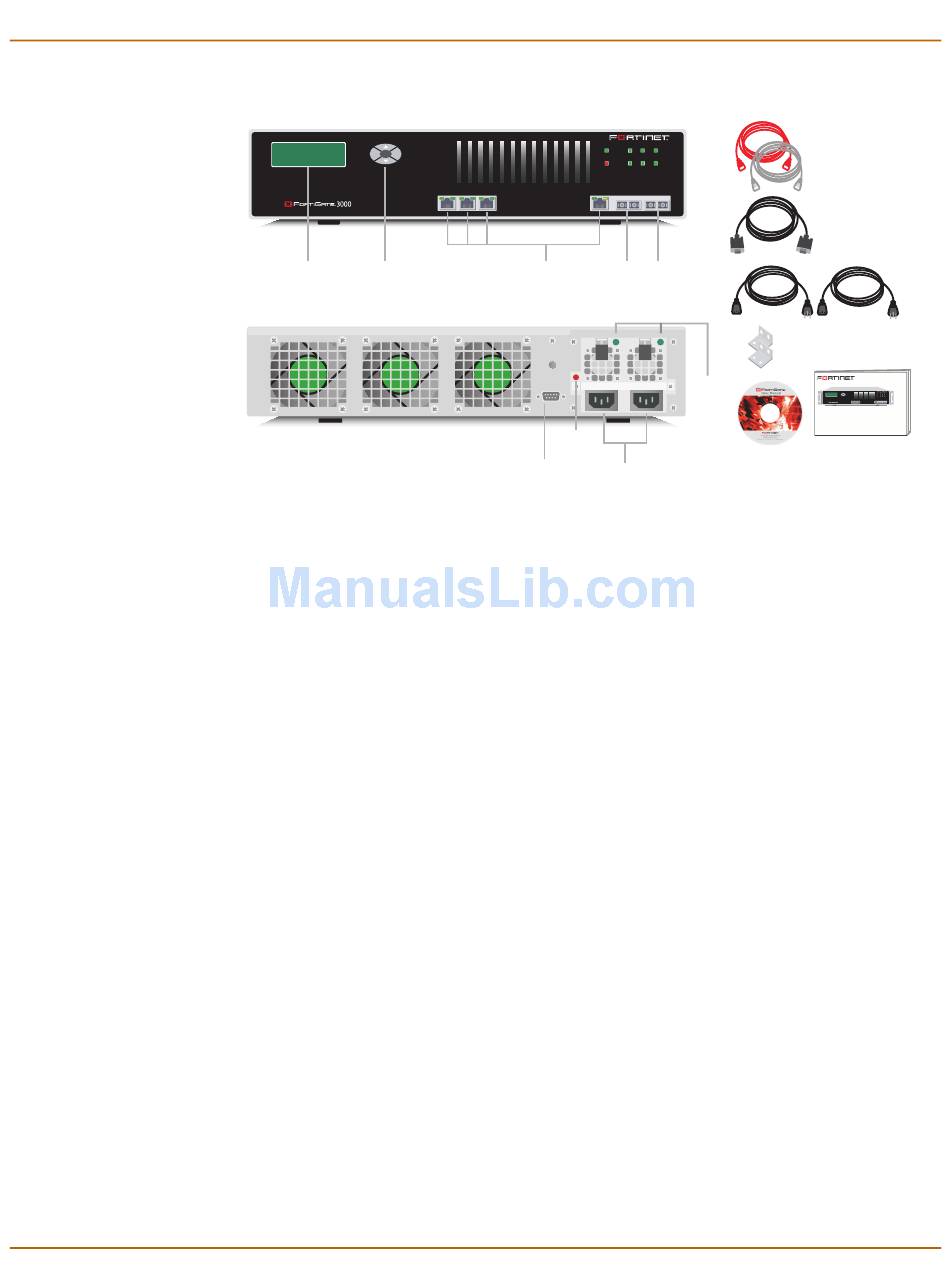

Figure 2: FortiGate-3000 package contents
Esc Enter
LCD Control
Display Buttons
The FortiGate-3000 unit can be mounted in a standard 19-inch rack. It requires 2 U of
vertical space in the rack.
The FortiGate-3000 unit can also be installed as a free-standing appliance on any
stable surface.
Dimensions
• 16.75 x 13.5 x 3.5 in. (42.7 x 33 x 8.9 cm)
Weight
• 17.5 lb. (8 kg)
Power requirements
• Power dissipation: 360 W (max)
• AC input voltage: 100 to 240 VAC
• AC input current: 6 A
• Frequency: 50 to 60 Hz
• The FortiGate-3000 unit may overload your supply circuit and impact your
overcurrent protection and supply wiring. Use appropriate equipment nameplate
ratings to address this concern.
• Make sure that the FortiGate-3000 unit has reliable earthing. Fortinet recommends
direct connections to the branch circuit.
01-28005-0026-20041101
