Package contents

Package contents

Mounting

14
The FortiGate-60M package contains the following items:
• FortiGate-60M Antivirus Firewall
• one orange crossover ethernet cable (Fortinet part number CC300248)
• one gray regular ethernet cable (Fortinet part number CC300249)
• one RJ-45 to DB-9 serial cable (Fortinet part number CC300302)
• one RJ-11 phone cable
• FortiGate-60M Quick Start Guide
• CD containing the FortiGate user documentation
• one power cable and AC adapter

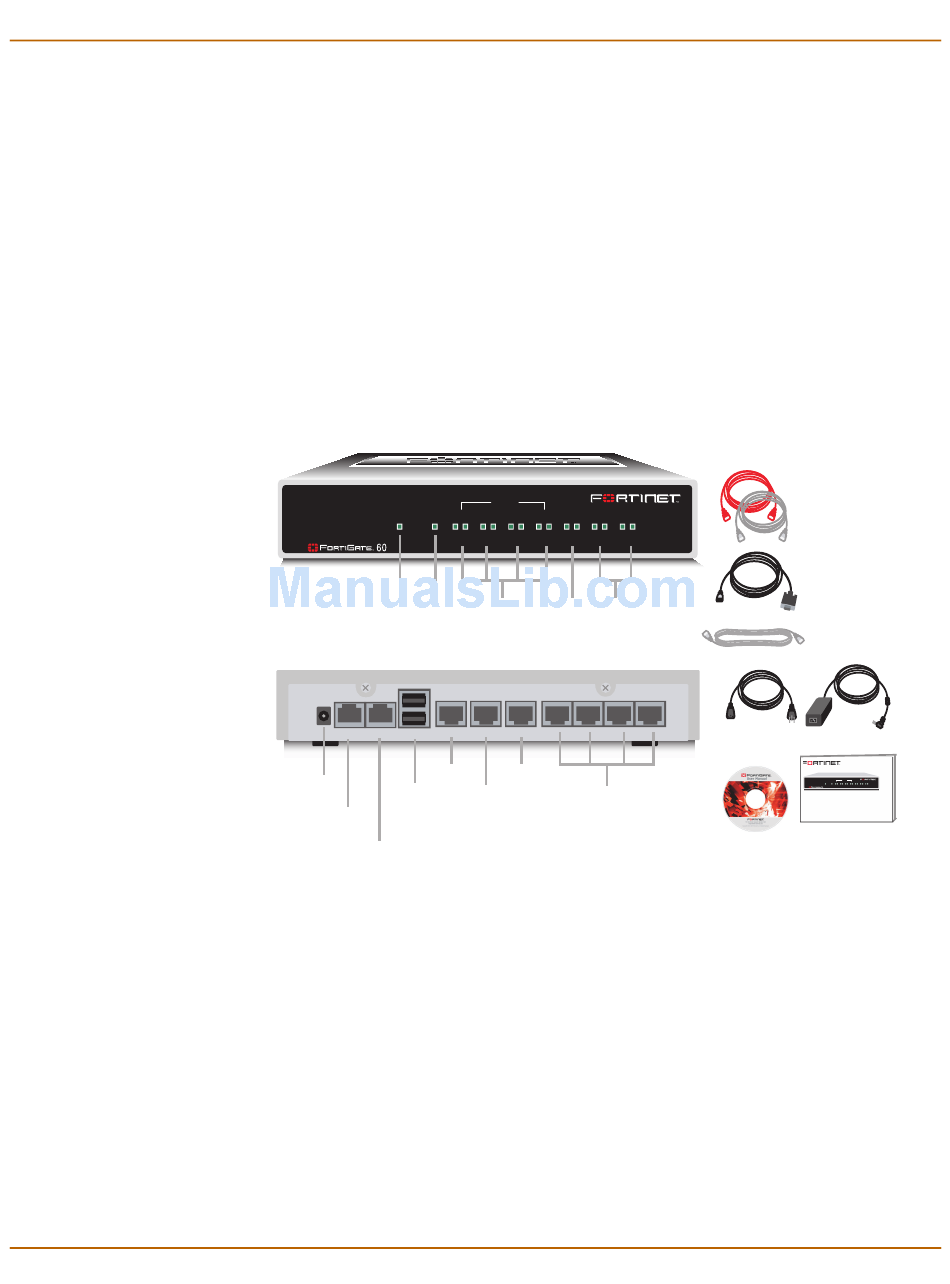

Figure 2: FortiGate-60M package contents
PWR
M
Power Status
LED
DC+12V
Modem Console USB
Power
USB
Connection
(future)
Modem Phone
Connection
Serial Port
The FortiGate-60M unit can be installed on any stable surface. Make sure that the unit
has at least 1.5 in. (3.75 cm) of clearance on each side to allow for adequate air flow
and cooling.
Dimensions
• 8.63 x 6.13 x 1.38 in. (21.9 x 15.6 x 3.5 cm)
Weight
• 1.5 lb. (0.68 kg)
01-28008-0111-20050128
Front
INTERNAL
STATUS 1 2 3 4 DMZ WAN1
LINK 100 LINK 100 LINK 100 LINK 100 LINK 100 LINK 100
DMZ WAN 1,2
Internal
LED Interface Interface
Interface
Back
4 3
Internal
WAN2 WAN1 DMZ
DMZ
WAN2
WAN1 Internal Interface,
switch connectors
1,2,3,4
WAN2
LINK 100
2 1
Power Cable Power Supply
USER MANUAL
Getting started
Ethernet Cables:
Orange - Crossover
Grey - Straight-through
RJ-45 to
DB-9 Serial Cable
RJ-11 Phone cable
FortiGate-60
INTERNAL
PWR STATUS 1 2 3 4 DMZ WAN1 WAN2
LINK 100 LINK 100 LINK 100 LINK 100 LINK 100 LINK 100 LINK 100
QuickStart Guide
