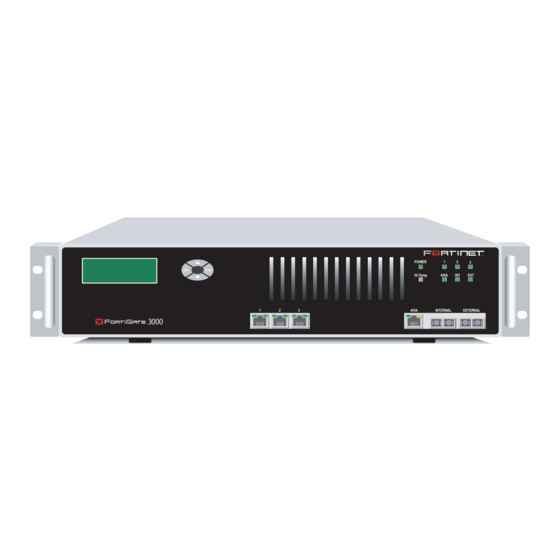

FortiGate 3000
Administration Guide
ESC
ENTER
CONSOLE
FortiGate-3000 Administration Guide
Version 2.80 MR6
5 November 2004
01-28006-0010-20041105
1
2
3
POWER
Hi-Temp
4/HA
INT
EXT
1
2
3
4/HA
INTERNAL
EXTERNAL
