USER GUIDE
ADVANCED
1/2/4-PORT DVI-I
SECURE KVM SWITCH
USM-2S0-MM1
SS4P-SH-DVI-UCAC
CONSOLE
MS
KB
MODELS:

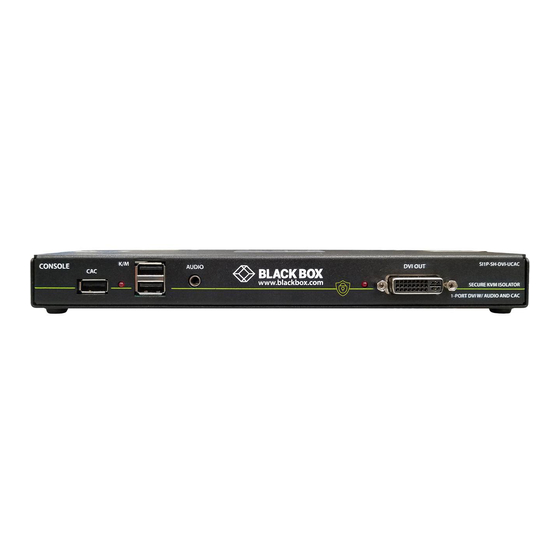

• SI1P-SH-DVI-UCAC
12VDC2.0A
CAC
• SS2P-SH-DVI-U
• SS2P-DH-DVI-U
• SS2P-SH-DVI-UCAC
• SS2P-DH-DVI-UCAC
• SS4P-SH-DVI-U
• SS4P-DH-DVI-U
• SS4P-SH-DVI-UCAC
• SS4P-DH-DVI-UCAC
• SS4P-QH-DVI-UCAC
IN-4
DVI-I OUT
K/M
2-Port Secure DVI-I KVM Switch with Audio and CAC Support
K/M
Audio
Audio
2-Port Secure DVI-I KVM Switch with Audio
2-Port Secure Dual-Head DVI-I KVM Switch with Audio
2-Port Secure DVI-I KVM Switch with Audio and CAC Support
2-Port Secure Dual-Head DVI-I KVM Switch with Audio and CAC Support
4-Port Secure DVI-I KVM Switch with Audio
4-Port Secure Dual-Head DVI-I KVM Switch with Audio
4-Port Secure DVI-I KVM Switch with Audio and CAC Support
4-Port Secure Dual-Head DVI-I KVM Switch with Audio and CAC Support
4-Port Secure Quad-Head DVI-I KVM Switch with Audio and CAC Support
REV: 1.1A
1
IN-3
DVI-I
DVI-I
CAC
K/M
CAC
Audio
DATE: 07/03/2018
2
3
4
SECURE KVM SWITCH
4 PORT DVI-I W/ AUDIO AND CAC
IN-2
IN-1
DVI-I
K/M
CAC
K/M
Audio
Audio
DVI-I
CAC
1
Advertisement
Table of Contents
Related Manuals for Black Box SI1P-SH-DVI-UCAC
Summary of Contents for Black Box SI1P-SH-DVI-UCAC
- Page 1 IN-4 IN-3 IN-2 IN-1 DVI-I OUT DVI-I DVI-I DVI-I DVI-I MODELS: • SI1P-SH-DVI-UCAC 2-Port Secure DVI-I KVM Switch with Audio and CAC Support 12VDC2.0A Audio Audio Audio Audio Audio • SS2P-SH-DVI-U 2-Port Secure DVI-I KVM Switch with Audio • SS2P-DH-DVI-U 2-Port Secure Dual-Head DVI-I KVM Switch with Audio •...
-
Page 2: Table Of Contents
USER GUIDE TABLE OF CONTENTS TECHNICAL SPECIFICATIONS WHAT’S IN THE BOX? SECURITY FEATURES SECURE KVM SWITCH FRONT AND REAR INSTALLATION CAC INSTALLATION: COMMON ACCESS CARD, SMART CARD READER CAC PORT CONFIGURATION AUDITING: Dumping the Event Log via User Menu Options RESET: Restore Factory Default LED’s BEHAVIOR SYSTEM OPERATION... -
Page 3: Technical Specifications
Up to 20 ft. Signal Type USB 1.1 and 1.0 Keyboard and Mouse only. USB 2.0 for CAC connection (Only in models with CAC) SI1P-SH-DVI-UCAC/SS2P-SH-DVI-U/SS2P-DH-DVI-U: (2) USB Type B Type B SS2P-SH-DVI-UCAC/SS2P-DH-DVI-UCAC/SS4P-DH-DVI-U/SS4P-DH-DVI-U: (4) USB Type B SS4P-SH-DVI-UCAC/SS4P-DH-DVI-UCAC/ SS4P-QH-DVI-UCAC: (8) USB Type B... -
Page 4: What's In The Box
USER GUIDE WHAT’S IN THE BOX? Secure DVI-I KVM Switch Unit 1/2/4-port Secure DVI-I KVM Switch BX-1203000 Desktop power supply 100-240V, 12VDC 3A User Manual SECURITY FEATURES ANTI-TAMPER SWITCHES Each model is equipped with internal Anti-Tamper switches, which sense attempts to open the device enclosure. Once the system identifies such an attempt, all the front panel LED’s will flash rapidly and the unit will become useless by shutting off connection with all attached PCs and peripherals disabling any functionality. -
Page 5: Installation
INSTALLATION SYSTEM REQUIREMENTS 1. Black Box Secure PSS is compatible with standard personal/portable computers, servers or thin-clients, running operating systems such as Windows or Linux. 2. The peripheral devices that are supported by the Secure KVM Switch are listed in the following table:... - Page 6 USER GUIDE INSTALLATION Single-Head Units: 1. Ensure that power is turned off or disconnected from the unit and the computers. 2. Use a DVI cable to connect the DVI output port from each computer to the corresponding DVII IN ports of the unit. 3.
- Page 7 USER GUIDE INSTALLATION (Continued) Multi-Head Units: 1. Ensure that power is turned off or disconnected from the unit and the computers. 2. Use DVI cables to connect the DVI output ports of each computer to the corresponding DVI-I IN ports of the unit. For example, if using SS4P-QH-DVI-UCAC the four DVI ports of one computer must all be connected to one channel.
- Page 8 USER GUIDE INSTALLATION (Continued) SS4P-QH-DVI-UCAC SECURE KVM SWITCH 4 PORT DVI-I W/ AUDIO AND CAC USB IN DVI-I IN CAC IN AUDIO OUT USB OUT CAC OUT SS4P-QH-DVI-UCAC DVI-I OUT AUDIO IN Figure 8-1: SS4P-QH-DVI-UCAC SS2P-SH-DVI-UCAC SECURE KVM SWITCH 2 PORT DVI-I W/ AUDIO AND CAC SS2P-SH-DVI-UCAC DVI-I IN USB IN...
- Page 9 USER GUIDE INSTALLATION (Continued) EDID Learn: The Secure KVM Switch is designed to learn the connected monitor’s EDID upon power up. In the event of connecting a new monitor to the Secure KVM Switch, a power recycle is required. The Secure KVM Switch will indicate to the user the EDID learn process by flashing the front panel’s LEDs. Port one green and push button blue LEDs will both begin to flash for about 10 seconds.
- Page 10 USER GUIDE SINGLE-HEAD MODE SECURE KM SWITCHING In addition to traditional channel switching by buttons located on the front panel, Secure KM Switch also supports cursor control of selected channels. This technology allows seamless switching between computers by moving the mouse cursor from one display to another.
-
Page 11: Cac Installation: Common Access Card, Smart Card Reader
USER GUIDE CAC (COMMON ACCESS CARD, SMART CARD READER) INSTALLATION INSTALLATION The following steps are intended for the system administrator or IT manager only. If you have the optional CAC ports there will be 1 port on a single host port Secure KVM Switch, 2 ports on a 2 host ports Secure KVM Switch and 4 ports on a 4 host ports Secure KVM Switch. -
Page 12: Auditing: Dumping The Event Log Via User Menu Options
USER GUIDE AUDITING: Dumping the Event Log via User Menu Options The following steps are intended for the system administrator. Note: Only one computer connected to port 1 is required for this operation The Event Log is a detailed report of critical activities stored in the Secure KVM Switch or Secure KVM Switch memory. A comprehensive feature list and guidance for Administration and Security Management Tools can be found in the Administrator’s Guide available for download from: https://www.blackbox.com/NIAP3/documentation To view or dump the Event Log:... -
Page 13: Led's Behavior
Secure KM Switch has been TAMPERED with and all functions are Flashing EDID problem – Learn EDID to fix the problem permanently disabled. Please contact Black Box User Console Interface – CAC LED: technical support at info@blackbox.com... -
Page 14: System Operation
USER GUIDE SYSTEM OPERATION Front Panel Control To switch to an input port, simply push the desired input button on the front-panel of the Secure KM Switch. If an input port is selected, the LED of that port will turn on. TROUBLESHOOTING No Power •... -
Page 15: Limited Warranty Statement
18 months, which duration begins on the date of purchase by the customer. Customer is responsible for maintaining proof of date of purchase. Black Box limited warranty covers only those defects which arise as a result of normal use of the product, and do not apply to any: a. - Page 16 USER GUIDE NOTICE The information contained in this document is subject to change without notice. Black Box makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for particular purpose.
