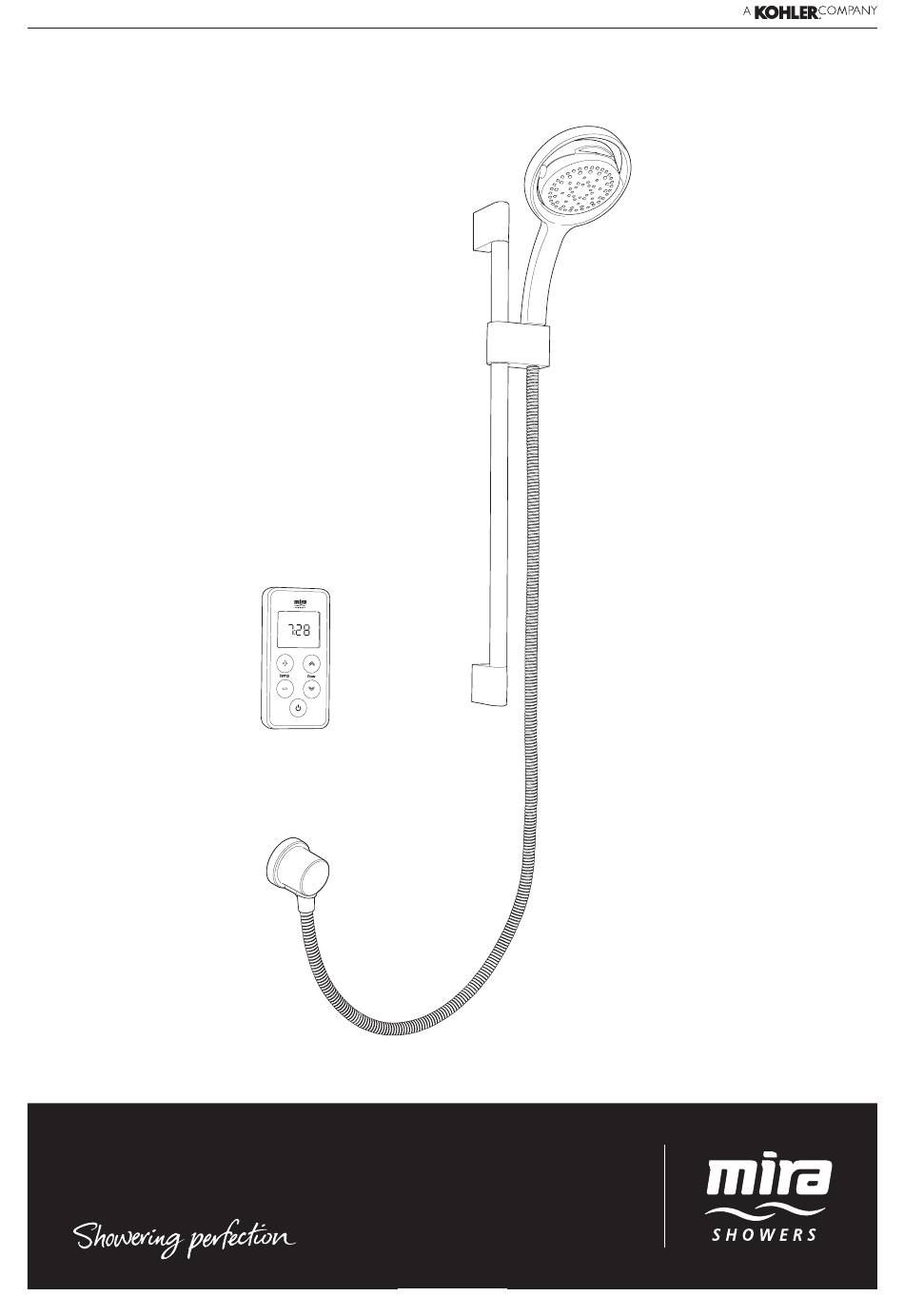

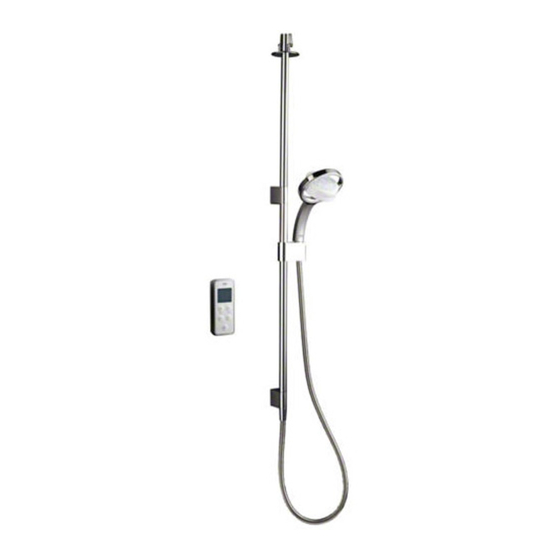

  • Page 1 Mira Vision These instructions must be left with the user Installation Guide 1184347-W2-G...

  • Page 2: Table Of Contents

    If you experience any difficulty with the installation or operation of your new shower, then please refer to the Fault Diagnosis section, before contacting Kohler Mira Ltd. Our telephone and fax numbers can be found in the back of this guide.

  • Page 3: Introduction

    Having done so, keep it handy for future reference. The Mira Vision Mixer Valve is designed to be used with the Mira Vision showerhead and fittings. Products Covered by this Guide Mira Vision Digital Mixer - High Pressure/Combi Valve Mira Vision Digital Mixer - Pumped Valve.

  • Page 4: Safety Information

    SAFETY INFORMATION Products manufactured by Kohler Mira Ltd are designed to be safe, provided that they are installed, used and maintained in good working order, in accordance with our instructions and recommendations. Follow all warnings, cautions and instructions contained in this guide, and on, or inside the product. Failure to follow the instructions provided with this product will invalidate the guarantee.
  • Page 5 13. DO NOT apply power to the product if it is thought to have been exposed to freezing conditions. Isolate electrical and water supplies to the product and contact Kohler Mira Ltd. 14. Make sure that you fully understand how to operate the product and make sure that it is properly maintained in accordance with the instructions given in this manual.

  • Page 6: Pack Contents

    PACK CONTENTS Tick the appropriate boxes to familiarise yourself with the part names and to confirm that the parts are included. Documentation 1 x Wireless Controller User Guide 1 x Showerhead User Guide 1 x Customer Support Brochure Digital Mixer Valve Digital Mixer - Digital Mixer - Pumped Valve High Pressure/Combi Valve...
  • Page 7 Ceiling Fed Fittings 1 x Plastic Pipe 1 x Ceiling Plate 2 x Spacers 1 x Showerhead 1 x Elbow Kit 1 x Extension 2 x Brackets 1 x Slide Bar Assembly 2 x Hex Screws 1 x Hose 2 x Wall Plugs 2 x Rubber Washers 2 x 45mm Screws 2 x 70mm Screws...
  • Page 8 Rear Fed Fittings 2 x End Plugs 2 x Brackets 1 x Showerhead 1 x Hose 1 x Slide Bar Assembly 2 x Rubber Washers 1 x Right Angle Connector (RAC) Kit 2 x Hex Screws 2 x Wall Plugs 1 x Installation Template 2 x 45mm Screws 1 x Hex Key...

  • Page 9: Specifications

    SPECIFICATIONS Standards and Approvals The Mira Vision complies with all relevant directives for CE marking. The Mira Vision is a type 1 electronic, independently mounted control for surface mounting. The Mira Vision is in compliance with the essential requirements of the R&TTE directive 1999/5/EC.
  • Page 10 Mira Digital Mixer Valve Pumped Pressures Maximum Static Pressure 100 kPa (1 bar) = 10 m max. total head Maximum Maintained Pressure 100 kPa (1 bar) = 10 m max. total head Minimum Maintained Pressure 1 kPa (0.01 bar) = 0.1 m min. total head...

  • Page 11: Dimensions

    MIN. SUPPLY PRESSURE: 50 kPa (0.5 bar) MAX. WORKING PRESSURE: 500 kPa (5 bar) MAX. STATIC PRESSURE: 1000 kPa (10 bar) (WRAS) MAX. SUPPLY WATER TEMP: 65 °C MOUNTING POSITION VERTICAL HORIZONTAL KOHLER MIRA LTD. CHELTENHAM GL52 5EP TEL: (+44) 0870 241 0888 www.mirashowers.co.uk COLD F8624...

  • Page 12: Installation

    • Interference from other radio signals can dramatically reduce the ability of the Vision Wireless Controller / digital mixer to register or communicate. This may include; mobile phones, radio control boiler thermostats, wireless broadband routers, radio control toys, cordless phones, remote outdoor weather stations, wireless doorbells etc.
  • Page 13 Typical Suitable Installations: 1. Instantaneous Multipoint Water Heaters and Combination Boilers Caution! Risk of product damage. Do not fit the Mira Digital Mixer - PUMPED VALVE with Instantaneous Multipoint Water Heaters or Combination Boilers. Combination Boiler Key to Symbols warm...
  • Page 14 The Mira Dual outlet digital mixing valves do not have a factory fitted hot inlet flow regulator. These are supplied in the component pack. The table indicates which flow regulator should be fitted in the hot water inlet of the Mira Digital Mixer Valve if installing to a combination boiler system.
  • Page 15 2. Mains Pressurised Instantaneous Hot Water Shower, Heated from a Thermal Store Caution! Risk of product damage. Do not fit the Mira Digital Mixer - PUMPED VALVE with Mains Pressurised Systems. Digital Mixer...
  • Page 16 3. Gravity Fed Showers Caution! Risk of product damage. Do not fit the Mira Digital Mixer - HIGH PRESSURE/COMBI VALVE with Gravity Fed Systems. 100 mm from the lowest level of water in the tank Cistern Digital Mixer Minimum 230 litres...
  • Page 17 Typical Examples of Poor Plumbing and Installation Practices DO NOT: • Install the Digital Mixer Valve where it can become frozen • Install the Digital Mixer Valve where it can be subjected to ambient tempera- tures in excess of 40ºC •...

  • Page 18: Installation Schematic

    3 amp switched fused spur. Easily Accessible Mira Vision Shower Fittings & Wireless Controller A separate, permanently connected supply must be taken from the ring main to the appliance through a 3 amp double pole switched fuse spur providing a minimum 3mm contact separation gap in each pole.
  • Page 19 Long inlet pipework (dead-legs) should be kept to a minimum to avoid temperature fluctuations. Supply pipework layout must be arranged to minimize the effect of other outlet usage upon the dynamic pressures at the Digital Mixer Valve inlets. To eliminate pipe debris it is essential that supply pipes are thoroughly flushed through before connection to the Digital Mixer Valve.

  • Page 20: Position And Signal Test

    Digital Mixer Valve Position and Signal Test ISOLATE MAINS ELECTRICITY BEFORE REMOVING COVER! DIGITAL MIXER 2 WIRELESS MIRA DM2 WIRELESS HP/COMBI 1666.009 N85A MANUFACTURED POWER: 230 V AC 20 W PROTECTION: IP24 MIN. SUPPLY PRESSURE: 50 kPa (0.5 bar) MAX. WORKING PRESSURE: 500 kPa (5 bar) MAX.
  • Page 21 The ambient temperature of Digital Mixer Valve site (loft space, airing cupboard etc...) can have an effect on showering temperature. Insulate all pipework as required, particularly from the Digital Mixer Valve to the Shower Fitting. The temperature indicated on the wireless controller display is measured inside the digital mixing valve and due to site conditions is not necessarily the temperature delivered at the shower outlet.
  • Page 22 Drill and plug the fixing holes. Note! Installers may wish to use alternative cavity fixings, when installing onto a dry lined, stud partition, shower cubicle or laminated panel wall structures. However, these methods of fixing are beyond the scope of this guide. Secure the Digital Mixer Valve in position with the fixing screws (supplied).

  • Page 23: Shower Fittings - Ceiling Fed

    Shower Fittings - Ceiling Fed Suitable for solid, dry-lined, stud partition, shower cubicle or laminated panel walls. The Slide Bar should be fixed to the wall at a convenient height for all the family. It should be positioned so that water sprays down the centre of the bath, or away from the opening of a shower cubicle.
  • Page 24 Drill and plug Slide Bar Assembly fixing holes. Insert fixing screws through holes in Wall Brackets and fix to wall. Do not fully tighten. Use template to set correct distances between Wall Brackets. Fully tighten screws. Use longer fixing screws if using spacers supplied.
  • Page 25 Fit Slide Bar Assembly over Wall Brackets and secure with screws supplied. (Do not overtighten.) Connect ceiling extension tube. Feed plastic pipe up through the slide bar and extension into ceiling. Do not allow any debris to block the plastic pipe. Note! If plastic pipe requires shortening, make sure there is enough length to fit elbow (supplied) or alternative push-...

  • Page 26: Shower Fittings - Rear Fed

    Place first washer in end of hose, then attach to pipe end. Do not fit showerhead until after pipework has been fully flushed through. See section “Commissioning”. Shower Fittings - Rear Fed Suitable for solid, dry-lined, stud partition, shower cubicle or laminated panel walls. The Slide Bar should be fixed to the wall at a convenient height for all the family.
  • Page 27 Insert fixing screws through holes in Wall Brackets and fix to wall. Do not fully tighten at this stage. Use template to set correct distances between Wall Brackets. Fully tighten screws. Note! Slots in Wall Brackets allow for adjustment. Use one horizontal slot and one vertical slot.
  • Page 28 Fit an isolating valve (not supplied) close to the Digital Mixer Valve for ease of maintenance. Make sure that the outlet pipe work protrudes approx. 60 mm through a Dia 20 mm hole square to the finish wall surface. 60mm NOTE! To be trimmed after completion of finished wall surface when installing RAC.
  • Page 29 Secure the backplate to the wall so the Foam Seal foam seal is fully compressed. Fit the pipe collar and lock. Re-check the pipe length. - 3 3 Flush pipework to clear all debris. 1 min 1184347-W2-G...
  • Page 30 Fit the o seal and elbow. o seal Check for leaks. Fit the cover. Carefully lift the cover to locate the screw. Unscrew fully to lock using the 2.5 mm hex key supplied. 1184347-W2-G...

  • Page 31: Wireless Controller

    Wireless Controller Suitable for solid, dry-lined, stud partition, shower cubicle or laminated panel walls. The Wireless Controller should be fixed to the wall at a convenient height for all the family. It should be positioned so that water does not spray over it when the Showerhead is held on the Slide Bar.

  • Page 32: Commissioning

    COMMISSIONING Turn on electrical supply to Digital Mixer Valve. Make sure the end of the hose is in either the bath, shower tray or other water catchment area. Press “ ” button and reduce temperature to full cold “CLd”. Press ”...
  • Page 33 Run cold water through (approximately 2 minutes) and check entire installation for water leaks. Press “ ” to turn shower off. Fit the second hose washer and showerhead. Press “ ” to turn shower on. Test operation of shower by increasing/decreasing both temperature and flow controls.

  • Page 34: Connecting A Second Wireless Controller

    CONNECTING A SECOND WIRELESS CONTROLLER The following procedure details how to assign the Wireless Controller to the Digital Mixer Valve and test the remote signal strength. Note! Other radio signals from sources such as mobile phones, radio controlled boiler thermostats, wireless broadband etc. can dramatically reduce the ability of the digital mixer valve to register.

  • Page 35: Re-Registering

    RE-REGISTERING The wireless controller has previously been registered to the digital mixer at the factory, if communication problems are encountered, a re-registering of the wireless controller may be required. A re-registering of the wireless controller must also be performed should the control PCB in the Digital Mixer Valve be replaced.

  • Page 36: Fault Diagnosis

    “Position and Signal Test” Wireless controller lost Re-register the wireless controller, refer to “Re- registration. Registering”. Digital Mixer valve box or Contact Kohler Mira Ltd. Wireless Controller failure 1184347-W2-G...
  • Page 37 Batteries” in the Wireless batteries are flat or incorrectly fitted. Controller User Guide. Wireless controller failure. Contact Kohler Mira Ltd. No water flow / will not turn on HP/Combi valve fitted to a HP/Combi valves are not suitable Pumped Gravity water system...
  • Page 38 “Typical Suitable Installations” No product fault. Appliance not suitable for negative Digital Mixer valve box installed head installation, refer to above cold water storage cistern “Installation” (Pumped valve only) Contact Kohler Mira Ltd Digital Mixer valve box failure 1184347-W2-G...
  • Page 39 “Typical Suitable Installations” Contact Kohler Mira Ltd Digital Mixer valve box or Wireless Controller failure Temperature and flow control Loss of / or poor radio Refer to “Loss of / or poor radio...
  • Page 40 Refer to “Use of Flow and out (HP/Combi valve only) Regulators” for correct operation Outlet pipe run is too long Ensure outlet pipe work is thermally lagged. Digital Mixer valve box or Contact Kohler Mira Ltd Wireless Controller failure 1184347-W2-G...
  • Page 41 Disable the ‘warm-up’ feature, used with a combi boiler (HP/ refer to ‘Changing Functions’ Combi valve only) refer to ‘Use in the Wireless Controller User of Warm-up’ Guide Digital Mixer valve box or Contact Kohler Mira Ltd Wireless Controller failure 1184347-W2-G...
  • Page 42 “Typical Suitable Installations” Reversed inlet supplies Check and remedy Digital Mixer valve box failure Contact Kohler Mira Ltd Internal Leaking Pumped Gravity LP valve Pumped Gravity LP valves fitted to a HP/Combi water are not suitable for connection...
  • Page 43 Refer to “Loss of / or poor communications (out of range radio communications” symbol maybe illuminated on section above wireless controller). Contact Kohler Mira Ltd Digital Mixer valve box failure Noise Digital Mixing valve air locking Check for correct installation practices, repeat...

  • Page 44: Maintenance

    MAINTENANCE General Read the section “Important Safety Information” first. Before replacing any parts ensure that the underlying cause of the malfunction has been resolved. If the shower is dismantled during installation or servicing then upon completion the product must be inspected to ensure there are no leaks. Warning! There are no user serviceable components beneath the cover of the appliance.

  • Page 45: Spare Parts

    SPARE PARTS Digital Mixer - High Pressure/Combi Valve 1797.060 1797.062 Wireless Controller (x 7) Wall Plate 1666.223 Aerial 1797.061 Battery Cover 1666.191 Control PCB 1666.189 1666.210 Mixing Valve Assembly Thermistor Includes: 1666.199 (x3) 1666.209 (x2) 1666.210 (x1) 1666.209 1666.211 Inlet Cartridge Mains Cable 1666.199 + Filter (x1)
  • Page 46 Digital Mixer - Pumped Valve (x 7) 1666.221 Mains Cable 1666.224 Aerial 1666.192 Mixing Valve 1666.193 Assembly 1666.210 Control PCB Includes: Thermistor 1666.119 (x3) 1666.209 (x2) 1666.194 1666.210 (x1) Transfer Tube A, C 1666.209 Inlet Cartridge + Filter (x1) 1666.198 Outlet Tube 1666.196 1666.199...
  • Page 47 Shower Fittings 1799.015 Ceiling Plate 1688.194 Chrome Supply 1688.195 Tube Supply Tube 1688.191 1688.205 Upper Support 360M Showerhead 1688.196 Pipe Connection Pack 1688.187 Slide Bar Support 1841.088 1688.282 1841.088 Component Pack Check valve Component Pack (x2) 1688.185 (x2) Clamp 1841.088 Bracket Component Pack RAC Pack...

  • Page 48: Disposal And Recycling

    DISPOSAL AND RECYCLING End of Product Life When this appliance has reached the end of its serviceable life, it should be disposed of in a safe manner, in accordance with current local authority recycling, or waste disposal policy. Batteries Spent batteries should not be disposed of with normal household waste. Contact your local authority for information on waste disposal and recycling.
  • Page 49 NOTES 1184347-W2-G...

  • Page 50: Customer Service

    Servicing must only be undertaken by us or our Spares and Accessories appointed representative. We hold the largest stocks of genuine Mira Note! If a service visit is required the product must spares and accessories.Contact us for a be fully installed and connected to services.
