- Page 1 Manual POWER SHOWER Installation and user Guide These instructions are to be left with the user...
-
Page 2: Table Of Contents
ConTenTs Introduction ..................... 3 Patents ....................3 Important safety Information ..............3 Warning! ....................3 Caution! ....................4 Pack Contents ..................5 Dimensions ....................6 Specifications ..................7 Installation Requirements ..............8 Installation ....................9 General ....................9 Electrical ....................9 Plumbing .................... -
Page 3: Introduction

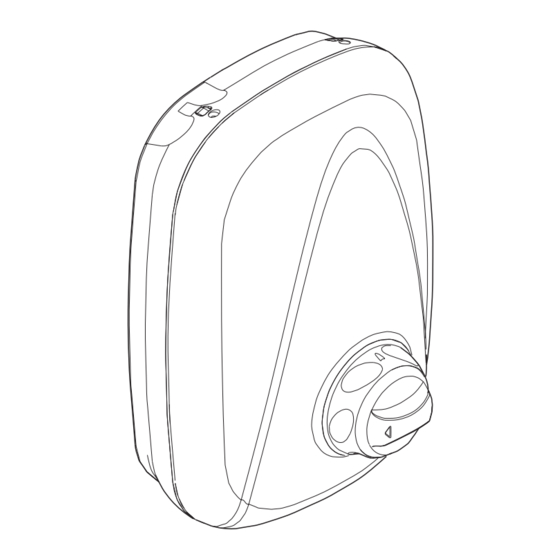

InTRoDuCTIon The Mira Vigour Manual Power Shower is an all-in-one power shower with an integral mains voltage pump, and separate controls for flow and temperature. It features a 15 mm dual entry push-fit manifold which supports various inlet supply configurations. -
Page 4: Caution
12. Moving parts are exposed when the cover is removed. 13. Isolate the electricity and water supplies and refer to “To contact us”, on the back page of this guide, if any of the following conditions occur: • The cover is not correctly fitted and water has entered the case •... -
Page 5: Pack Contents
PaCK ConTenTs Tick the appropriate boxes to familiarise yourself with the part names and to confirm that the parts are included. 1 x Manual Power Shower 4 x Case Inserts 1 x Flow Control Knob ... -
Page 6: Dimensions
DIMensIons All dimensions are nominal and in millimetres. -
Page 7: Specifications
Maximum static pressure: 100 kPa (1 bar) or 10 m head of water Duty Cycle: The Mira Vigour Manual Power Shower pump is now continuously rated. The motor is fitted with a self-resetting thermal trip, designed to operate if motor temperatures become too high due to abnormally high supply voltages. -
Page 8: Installation Requirements
InsTallaTIon ReQuIReMenTs Gravity Fed system - The shower MusT be fed from a cold water cistern and hot water cylinder providing nominally equal pressure. 90° 25 mm Min 30° - 60° Cistern Service Valve 10 m Maximum 80 mm Minimum 1 m Head Minimum Vent... -
Page 9: Installation
InsTallaTIon General Do not take risks with plumbing or electrical equipment. Do not install the shower unit in a position where it could become frozen. Isolate electrical and water supplies before proceeding with the installation of the shower unit. The shower unit must be fed from a cold water storage cistern and hot water cylinder with equal pressures. -
Page 10: Plumbing
Plumbing a minimum storage capacity of cold water of 230 litres (50 gallons) is required to provide adequate showering time. Insufficient storage may result in the pump being run dry. Layout and sizing of pipework must be such that nominally equal inlet supply pressures are achieved and the effects on the shower performance of other draw-offs are minimised. - Page 11 Warning! Do not fix the shower unit to the wall until plumbing and electrical installations have been completed. Decide on a suitable location for the shower unit avoiding buried cables and pipes. The unit should be positioned at a height convenient for all the family (at least 200 mm below the ceiling to allow for the fitting and removal of the unit cover).
- Page 12 Make sure that the end of the supply Chamfer pipework is cut squarely and is free from burrs, which will damage the inlet manifold seals. Chamfer the end of the pipe to assist insertion into the fitting and prevent the ‘O’ seal tearing. Warning! Do not insert fingers into the push-fit connectors as this can result in injury.
- Page 13 Temporarily locate the shower unit. Position the shower unit on the wall and mark the three fixing points. note! Installers may wish to obtain alternative proprietary cavity fixings for dry lined, stud partition or dry partition wall structures. Use the push-fit release tool to push the grey collars into the manifold to release the shower unit from the supply pipes.
- Page 14 12. Fit the three rubber feet into the Rubber Feet recesses in the rear of the case as shown. The feet will reduce the noise transmitted by the power shower through the wall. Warning! Blanking plates should be fitted to stop water ingress into the inside of the unit.
- Page 15 14. locate the shower unit on the inlet supplies and push the inlet manifold onto the pipework until resistance is felt. Do noT FoRCe! note! PTFE tape or liquid jointing compound must not be used and is not required to assist connection. 15.
- Page 16 19. Refit the unit cover and secure with the three cover securing screws. OFF Position 20. Insert the flow control knob in the OFF position. 21. Insert the temperature indicator trim and the inner temperature control knob. 22. The manual power shower will now require commissioning, refer to CoMMIssIonInG.
-
Page 17: Commissioning
CoMMIssIonInG The unit must not be run dry. Before proceeding any further with the installation the shower unit must be commissioned. Connect the flexible hose to the outlet of the shower unit. Hose Washer Caution! Do not over tighten. Hose Turn on the water supplies and check for leaks. -
Page 18: Operation
oPeRaTIon Warning! The shower is a manual mixing shower which can select water temperatures from Full hoT to Full ColD. If the temperature control knob is turned anticlockwise fully the shower will deliver water at the same temperature as the stored hot water temperature (this will be the same temperature as the hot tap water temperature). -
Page 19: Fault Diagnosis
FaulT DIaGnosIs Fault Diagnosis - user Maintenance The appliance is fully performance tested after assembly. Providing it has been correctly installed and is operated as advised, difficulties should not arise. In the unlikely event that you experience problems with your appliance then the following procedure will enable you to undertake basic fault finding before contacting the person responsible for installing your shower. -
Page 20: Fault Diagnosis - Installer Maintenance
Fault Diagnosis - Installer Maintenance The Manual Power Shower is one part of an entire plumbing system. The fitting of a pump places additional requirements on the plumbing system. Some systems may require plumbing modifications to allow them to cope with higher flow rates. Providing the Manual Power Shower has been correctly installed and is operated as advised, difficulties should not arise. - Page 21 Malfunction Cause Remedy Maximum shower Hot water cylinder adjust cylinder temperature. temperature too temperature too low. note! The stored water cold. temperature must not exceed 65 °C. The blend The spray plate is blocked. Clean the spray plate. Refer temperature to the instruction manual unstable.
-
Page 22: Maintenance
MaInTenanCe Warning! There are no user serviceable components beneath the cover of the appliance. Only a competent tradesperson should remove the cover. Before removing the cover the electricity supply must be turned off at the mains and, if applicable, the appropriate circuit fuse removed. Mains electrical connections are exposed when the cover is removed. -
Page 23: Notes
noTes... -
Page 24: Notes
noTes... -
Page 25: Notes
noTes... -
Page 26: Spare Parts
sPaRe PaRTs 147.67 Check Valve Pack 453.02 Cartridge - Manual 453.03 Motor Pump Assembly - components identified ‘A’ 453.07 Inlet Manifold Assembly - components identified ‘B’ 453.08 PCB assembly - Power 453.12 Harness Assembly - Concentric - components identified ‘C’ 453.13 Solenoid Valve Assembly - components identified ‘D’... - Page 27 a,D,E 453.08 453.28 1532.366 147.67 B,E,F 453.02 453.14 1532.333...
-
Page 28: Customer Service
Our Service Force is available to provide a quality service Damage or defects if the product is taken apart, repaired or at a reasonable cost. You will have the assurance of a Mira modifi ed by any persons not authorised by Mira Showers trained engineer/agent, genuine Mira spare parts and a or our approved agents.
